ASU50L-ARTNKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

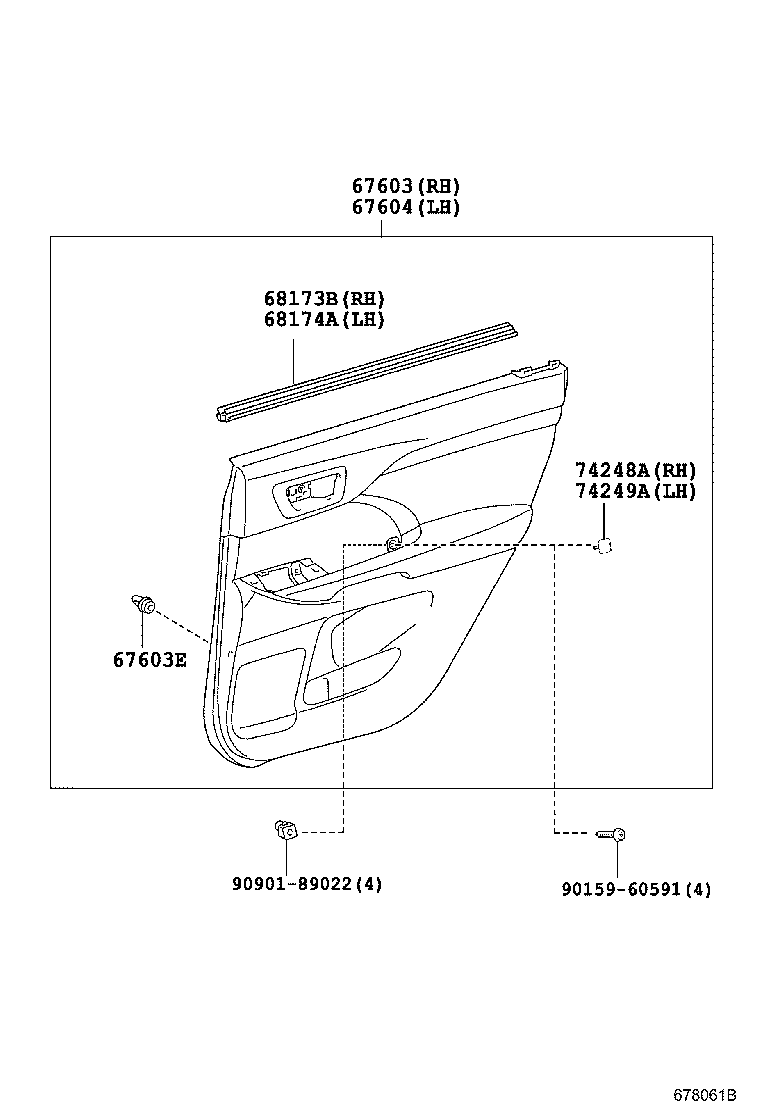

ILLUST NO. 2 OF 2(1312- )LE

Click highlighted areas on diagram

DOOR TRIM W/O(SUN SHADE)

diagram 67603 67603E 67604 68173B 68174A 74248A 74249A 9015960591 9090189022
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-0E740C0

ASU50,GSU55..LE..RUS

LEATHER PACKAGE,FLAXEN,TRIM0#

 1
67630-0E430C2

ASU50,GSU5#..LE

BLACK,TRIM2#

 1
67630-0E440C6

ASU50,GSU55..LE..RUS

LEATHER PACKAGE,FLAXEN,TRIM0#

 1
67630-0E740C2

ASU50,GSU5#..LE

LEATHER PACKAGE,BLACK,TRIM2#

 1
67630-0E730C1

ASU50,GSU5#..LE

BLACK,TRIM2#

 1
67630-0E440C1

ASU50,GSU5#..LE

LEATHER PACKAGE,GRAY,TRIM2#

 1
67630-0E741C0

ASU50,GSU55..LE..RUS

LEATHER PACKAGE,FLAXEN,TRIM0#

 1
67630-0E741C2

ASU50,GSU5#..LE

LEATHER PACKAGE,BLACK,TRIM2#

 1
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-A0005

ASU50,GSU5#

 18
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-0E430C2

ASU50,GSU5#..LE

BLACK,TRIM2#

 1
67640-0E440C6

ASU50,GSU55..LE..RUS

LEATHER PACKAGE,FLAXEN,TRIM0#

 1
67640-0E440C1

ASU50,GSU5#..LE

LEATHER PACKAGE,GRAY,TRIM2#

 1
67640-0E740C0

ASU50,GSU55..LE..RUS

LEATHER PACKAGE,FLAXEN,TRIM0#

 1
67640-0E741C0

ASU50,GSU55..LE..RUS

LEATHER PACKAGE,FLAXEN,TRIM0#

 1
67640-0E740C2

ASU50,GSU5#..LE

LEATHER PACKAGE,BLACK,TRIM2#

 1
67640-0E741C2

ASU50,GSU5#..LE

LEATHER PACKAGE,BLACK,TRIM2#

 1
67640-0E730C1

ASU50,GSU5#..LE

BLACK,TRIM2#

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-0E051

ASU50,GSU5#

 1
68173-0E050

ASU50,GSU5#

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-0E051

ASU50,GSU5#

 1
68174-0E050

ASU50,GSU5#

 1
74248A - PLUG, REAR DOOR ARMREST, RH
74248-0E010A0

ASU50,GSU55..LE..RUS

LEATHER PACKAGE,FLAXEN,TRIM0#

 1
74248-0E010C0

ASU50,GSU5#

BLACK,TRIM2#

 1
74249A - PLUG, REAR DOOR ARMREST, LH
74249-0E010A0

ASU50,GSU55..LE..RUS

LEATHER PACKAGE,FLAXEN,TRIM0#

 1
74249-0E010C0

ASU50,GSU5#

BLACK,TRIM2#

 1
Common parts
90159-60591
90901-89022

ILLUST NO. 1 OF 2(1312-1512)

Click highlighted areas on diagram

DOOR PANEL

diagram 67003 67003C 67004 67113 67114 67215E 67225A 67407E 67408E 67487C 67488C 67673A 67674A 67836 67836H 67841E 67842E 67847B 67847F 67857B 67858B 67859B 67867B 67867D 67868D 67868G 67868J 67869D 67869L 67871 67872 67887A 67888A 67895C 67896 68103 68104 68142C 68152C 68630D 68640A 75937A 75938 75951C 75952A 75953A 75954A 9008410049 90119A0105 90119A0237 90151A0003 90178A0023 90178A0023 9095001841 9095001A02
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-0E110

ASU50,GSU5#

 1
67003C - CUSHION, REAR DOOR PANEL
90541-09124

ASU50,GSU5#

 4
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-0E110

ASU50,GSU5#

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-0E050

ASU50,GSU5#

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-0E050

ASU50,GSU5#

 1
67215E - STOP, QUARTER WINDOW, UPPER RH
67215-0E010

ASU50,GSU5#

 1
67225A - STOP, QUARTER WINDOW, UPPER LH
67225-0E010

ASU50,GSU5#

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-0E050

ASU50,GSU5#

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-0E050

ASU50,GSU5#

 1
67487C - SEAL, REAR DOOR REAR GUIDE, RH
67487-0E050

ASU50,GSU5#..LE

 1
67488C - SEAL, REAR DOOR REAR GUIDE, LH
67488-0E050

ASU50,GSU5#..LE

 1
67673A - GARNISH, REAR DOOR FRAME, RH
67673-0E050

ASU50,GSU5#..LE

 1
67674A - GARNISH, REAR DOOR FRAME, LH
67673-0E050

ASU50,GSU5#..LE

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040

ASU50,GSU5#

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-12040

ASU50,GSU5#

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-0E060

ASU50,GSU5#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-0E060

ASU50,GSU5#

 1
67847B - SEAL, REAR DOOR VENT, RH NO.1
67847-0E090

ASU50,GSU5#

 1
67837-0E030

ASU50,GSU5#

 1
67847F - SEAL, REAR DOOR VENT, LH
67848-0E060

ASU50,GSU5#

 1
67837-0E030

ASU50,GSU5#

 1
67857B - PROTECTOR, REAR DOOR PANEL, RH
67857-0E040

ASU50,GSU5#

 1
67858B - PROTECTOR, REAR DOOR PANEL, LH
67858-0E020

ASU50,GSU5#

 1
67859B - COVER, REAR DOOR LOWER HOLE
67859-0E010

ASU50,GSU5#

 2
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
90467-04034

ASU50,GSU5#

 4
90467-A0027

ASU50,GSU5#

 4
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

ASU50,GSU5#

 16
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

ASU50,GSU5#

 16
67868G - RETAINER, DOOR WEATHERSTRIP
67867-12150

ASU50,GSU5#

 5
67868J - RETAINER, DOOR WEATHERSTRIP
67867-12150

ASU50,GSU5#

 5
67869D - CLIP, DOOR WEATHERSTRIP
67867-12150

ASU50,GSU5#

 2
67869L - CLIP, REAR DOOR WEATHERSTRIP
67869-20030

ASU50,GSU5#

 2
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-0E050

ASU50,GSU5#

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-0E050

ASU50,GSU5#

 1
67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH
67887-0E050

ASU50,GSU5#

 1
67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH
67888-0E050

ASU50,GSU5#

 1
67895C - WEATHERSTRIP, REAR DOOR, NO.3 RH
67895-0E020

ASU50,GSU5#

 1
67896 - WEATHERSTRIP, REAR DOOR, NO.3 LH
67896-0E020

ASU50,GSU5#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-0E050

ASU50,GSU5#

*TEM,T=4.0,DARK GRAY

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-0E050

ASU50,GSU5#

*TEM,T=4.0,DARK GRAY

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-0E050

ASU50,GSU5#

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-0E050

ASU50,GSU5#

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-0E060

ASU50,GSU5#

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-0E060

ASU50,GSU5#

 1
75937A - TAPE, BLACK OUT, INNER UPPER RH
75937-0E030

ASU50,GSU5#

 1
75938 - TAPE, BLACK OUT, INNER UPPER LH
75938-0E030

ASU50,GSU5#

 1
75951C - TAPE, BLACK OUT, INNER FRONT RH
75951-0E030

ASU50,GSU5#

 1
75952A - TAPE, BLACK OUT, INNER FRONT LH
75952-0E030

ASU50,GSU5#

 1
75953A - TAPE, BLACK OUT, INNER REAR RH
75953-0E030

ASU50,GSU5#

 1
75954A - TAPE, BLACK OUT, INNER REAR LH
75954-0E030

ASU50,GSU5#

 1
Common parts
90084-10049
90119-A0105
90119-A0237
90151-A0003
90178-A0023
90950-01841
90950-01A02

ILLUST NO. 1 OF 2(1512- )

Click highlighted areas on diagram

DOOR PANEL

diagram 67003 67003C 67004 67113 67114 67215E 67225A 67407E 67408E 67487C 67488C 67673A 67674A 67836 67836H 67841E 67842E 67847B 67847F 67857B 67858B 67859B 67867B 67867D 67868D 67868G 67868J 67869D 67869L 67871 67872 67887A 67888A 67895C 67896 68103 68104 68142C 68152C 68630D 68640A 75937A 75938 75951C 75952A 75953A 75954A 9008410049 90119A0105 90119A0237 90151A0003 90178A0023 90178A0023 9033320001 9095001841 9095001A02
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-0E110

ASU50,GSU5#

 1
67003C - CUSHION, REAR DOOR PANEL
90541-09124

ASU50,GSU5#

 4
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-0E110

ASU50,GSU5#

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-0E050

ASU50,GSU5#

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-0E050

ASU50,GSU5#

 1
67215E - STOP, QUARTER WINDOW, UPPER RH
67215-0E010

ASU50,GSU5#

 1
67225A - STOP, QUARTER WINDOW, UPPER LH
67225-0E010

ASU50,GSU5#

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-0E050

ASU50,GSU5#

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-0E050

ASU50,GSU5#

 1
67487C - SEAL, REAR DOOR REAR GUIDE, RH
67487-0E050

ASU50,GSU5#..LE

 1
67488C - SEAL, REAR DOOR REAR GUIDE, LH
67488-0E050

ASU50,GSU5#..LE

 1
67673A - GARNISH, REAR DOOR FRAME, RH
67673-0E050

ASU50,GSU5#..LE

 1
67674A - GARNISH, REAR DOOR FRAME, LH
67673-0E050

ASU50,GSU5#..LE

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040

ASU50,GSU5#

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-12040

ASU50,GSU5#

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-0E060

ASU50,GSU5#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-0E060

ASU50,GSU5#

 1
67847B - SEAL, REAR DOOR VENT, RH NO.1
67847-0E090

ASU50,GSU5#

 1
67837-0E030

ASU50,GSU5#

 1
67847F - SEAL, REAR DOOR VENT, LH
67848-0E060

ASU50,GSU5#

 1
67837-0E030

ASU50,GSU5#

 1
67857B - PROTECTOR, REAR DOOR PANEL, RH
67857-0E040

ASU50,GSU5#

 1
67858B - PROTECTOR, REAR DOOR PANEL, LH
67858-0E020

ASU50,GSU5#

 1
67859B - COVER, REAR DOOR LOWER HOLE
67859-0E010

ASU50,GSU5#

 2
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
90467-04034

ASU50,GSU5#

 4
90467-A0027

ASU50,GSU5#

 4
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

ASU50,GSU5#

 16
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

ASU50,GSU5#

 16
67868G - RETAINER, DOOR WEATHERSTRIP
67867-12150

ASU50,GSU5#

 5
67868J - RETAINER, DOOR WEATHERSTRIP
67867-12150

ASU50,GSU5#

 5
67869D - CLIP, DOOR WEATHERSTRIP
67867-12150

ASU50,GSU5#

 2
67869L - CLIP, REAR DOOR WEATHERSTRIP
67869-20030

ASU50,GSU5#

 2
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-0E050

ASU50,GSU5#

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-0E050

ASU50,GSU5#

 1
67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH
67887-0E050

ASU50,GSU5#

 1
67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH
67888-0E050

ASU50,GSU5#

 1
67895C - WEATHERSTRIP, REAR DOOR, NO.3 RH
67895-0E020

ASU50,GSU5#

 1
67896 - WEATHERSTRIP, REAR DOOR, NO.3 LH
67896-0E020

ASU50,GSU5#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-0E050

ASU50,GSU5#

*TEM,T=4.0,DARK GRAY

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-0E050

ASU50,GSU5#

*TEM,T=4.0,DARK GRAY

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-0E050

ASU50,GSU5#

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-0E050

ASU50,GSU5#

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-0E060

ASU50,GSU5#

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-0E060

ASU50,GSU5#

 1
75937A - TAPE, BLACK OUT, INNER UPPER RH
75937-0E030

ASU50,GSU5#

 1
75938 - TAPE, BLACK OUT, INNER UPPER LH
75938-0E030

ASU50,GSU5#

 1
75951C - TAPE, BLACK OUT, INNER FRONT RH
75951-0E030

ASU50,GSU5#

 1
75952A - TAPE, BLACK OUT, INNER FRONT LH
75952-0E030

ASU50,GSU5#

 1
75953A - TAPE, BLACK OUT, INNER REAR RH
75953-0E030

ASU50,GSU5#

 1
75954A - TAPE, BLACK OUT, INNER REAR LH
75954-0E030

ASU50,GSU5#

 1
Common parts
90084-10049
90119-A0105
90119-A0237
90151-A0003
90178-A0023
90333-20001
90950-01841
90950-01A02
