ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1908)ASU50

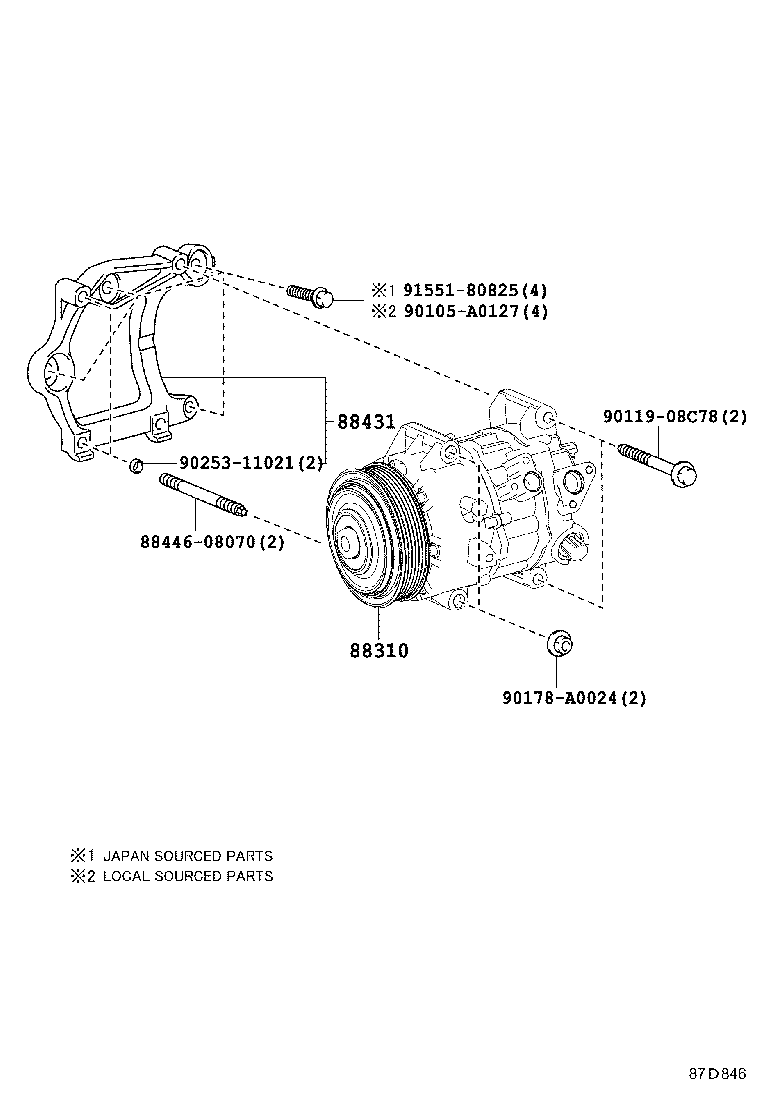

Click highlighted areas on diagram

diagram 88310 88431 8844608070 90105A0127 9011908C78 90178A0024 9025311021 9155180825
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-0E141

ASU50

 1
88310-0E140

ASU50

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
12502-36010

ASU50

(J)

 1
12502-0V040

ASU50

(L)

 1
Common parts
88446-08070
90105-A0127
90119-08C78
90178-A0024
90253-11021
91551-80825
