ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)

Click highlighted areas on diagram

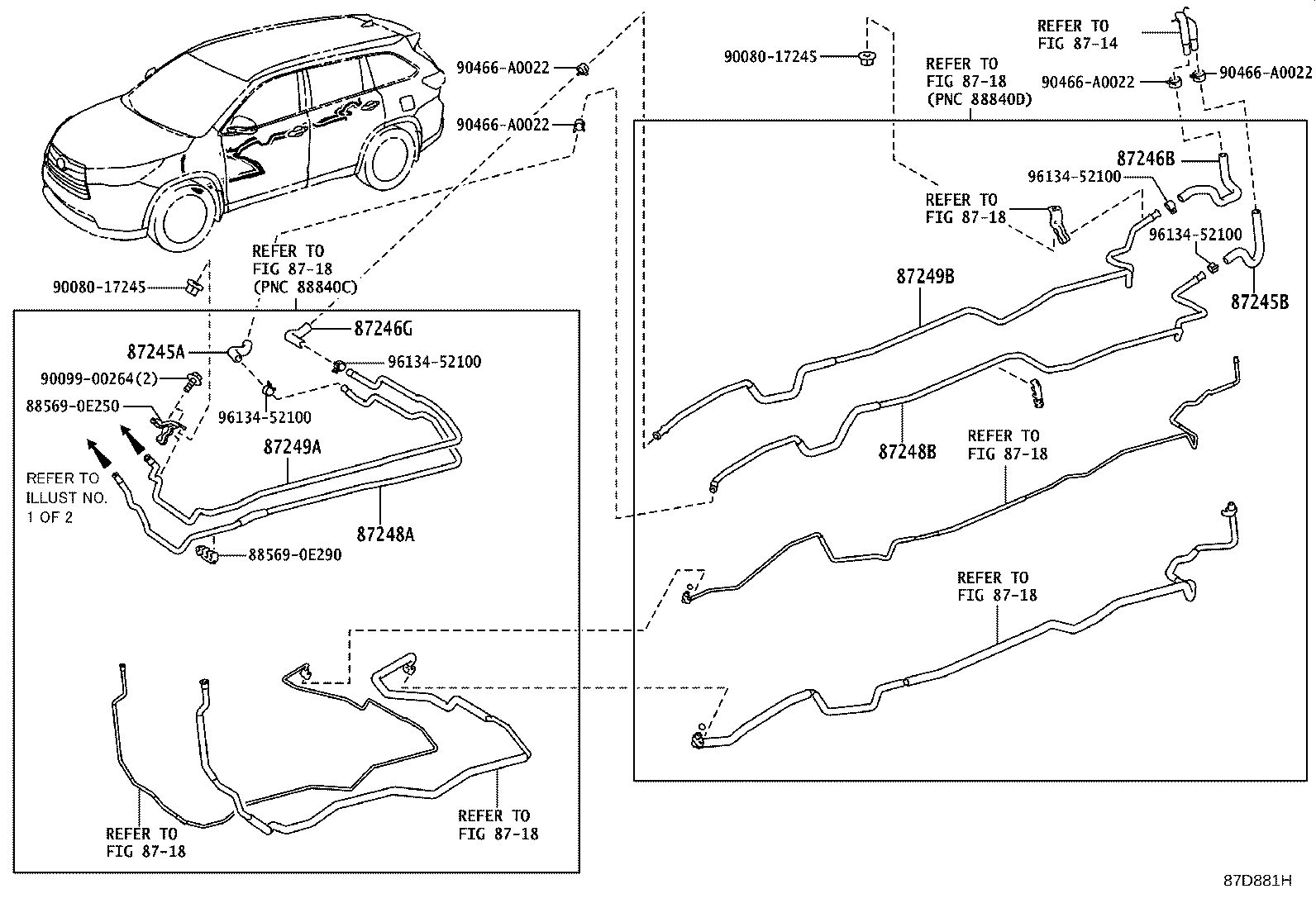

REAR

diagram 8714 8718 8718 8718 8718 8718 8718 8718 87245A 87245B 87246B 87246G 87248A 87248B 87249A 87249B 885690E250 885690E290 9008017245 9008017245 9009900264 90466A0022 90466A0022 90466A0022 90466A0022 9613452100 9613452100 9613452100 9613452100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-0E280

ASU50,GSU5#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-0E300

ASU50,GSU5#

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-0E310

ASU50,GSU5#

 1
87246G - HOSE, HEATER WATER, OUTLET G
87245-0E290

ASU50,GSU5#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-0E070

ASU50,GSU5#

 1
87248B - PIPE, HEATER WATER INLET, B
87208-0E080

ASU50,GSU5#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-0E110

ASU50,GSU5#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-0E090

ASU50,GSU5#

 1
Common parts
88569-0E250
88569-0E290
90080-17245
90099-00264
90466-A0022
96134-52100
Linked diagrams
8714
8718

(1312-1611)ASU50

Click highlighted areas on diagram

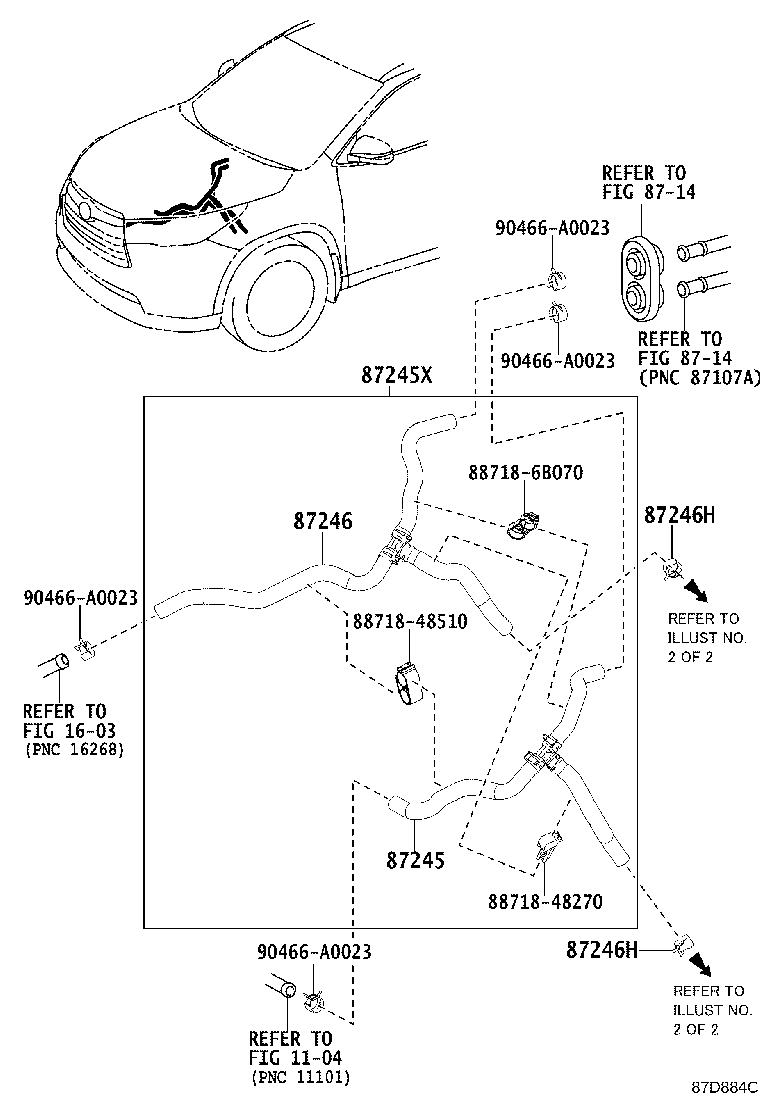

FRONT

diagram 1104 1603 8714 8714 87245 87245X 87246 87246H 87246H 87246H 8871848270 8871848510 887186B070 90466A0023 90466A0023 90466A0023 90466A0023
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87209-0E180

ASU50

 1
87245X - HOSE, HEATER WATER
87209-0E140

ASU50

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-0E190

ASU50

 1
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90466-A0022

ASU50,GSU5#

 2
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90466-A0022

ASU50,GSU5#

 2
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90466-A0022

ASU50,GSU5#

 2
Common parts
88718-48270
88718-48510
88718-6B070
90466-A0023
Linked diagrams
1104
1603
8714
