ASU50L-ARTGKX (2013)
Toyota Highlander/Kluger
(1312- )RUS

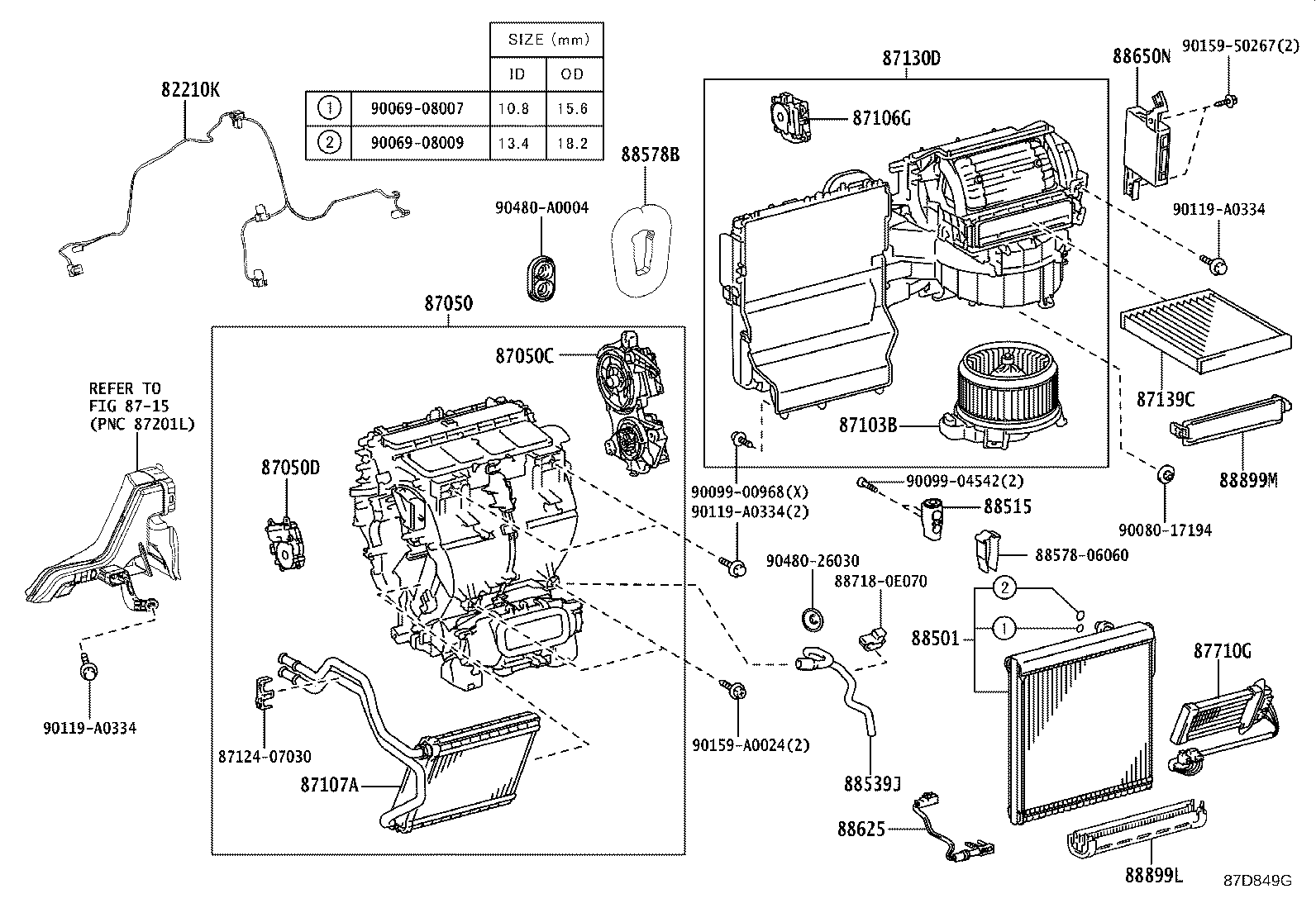

FRONT,AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-06121 |
ASU50,GSU55..RUS |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0E080 |
ASU50,GSU55..RUS |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-07110 |
ASU50,GSU5# |
1 | ||
| 87106-0E140 |
ASU50,GSU5# |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-0E150 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS |
1 | ||
| 87106-07120 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0E040 |
ASU50,GSU55..RUS |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-07140 |
ASU50,GSU55..RUS |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-07030 |
ASU50,GSU5# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0E100 |
ASU50,GSU55..RUS |
1 | ||
| 87130-0E101 |
ASU50,GSU55..RUS |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
ASU50,GSU5# DEODORANT FILTER |
1 | ||
| 87139-07020 |
ASU50,GSU5# POLLEN FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0E020 |
ASU50,GSU55..RUS |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-06230 |
ASU50,GSU5# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02530 |
ASU50,GSU5# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0E010 |
ASU50,GSU5# |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-0E070 |
ASU50,GSU5# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-06020 |
ASU50,GSU5# |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0E341 |
ASU50,GSU55..RUS |
1 | ||
| 88650-0E340 |
ASU50,GSU55..RUS |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-06100 |
ASU50,GSU5# |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-07010 |
ASU50,GSU5# |
1 | ||
| Common parts | ||||
| 87124-07030 | ||||
| 88578-06060 | ||||
| 88718-0E070 | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90080-17194 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-A0334 | ||||
| 90159-50267 | ||||
| 90159-A0024 | ||||
| 90480-26030 | ||||
| 90480-A0004 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(1312- )

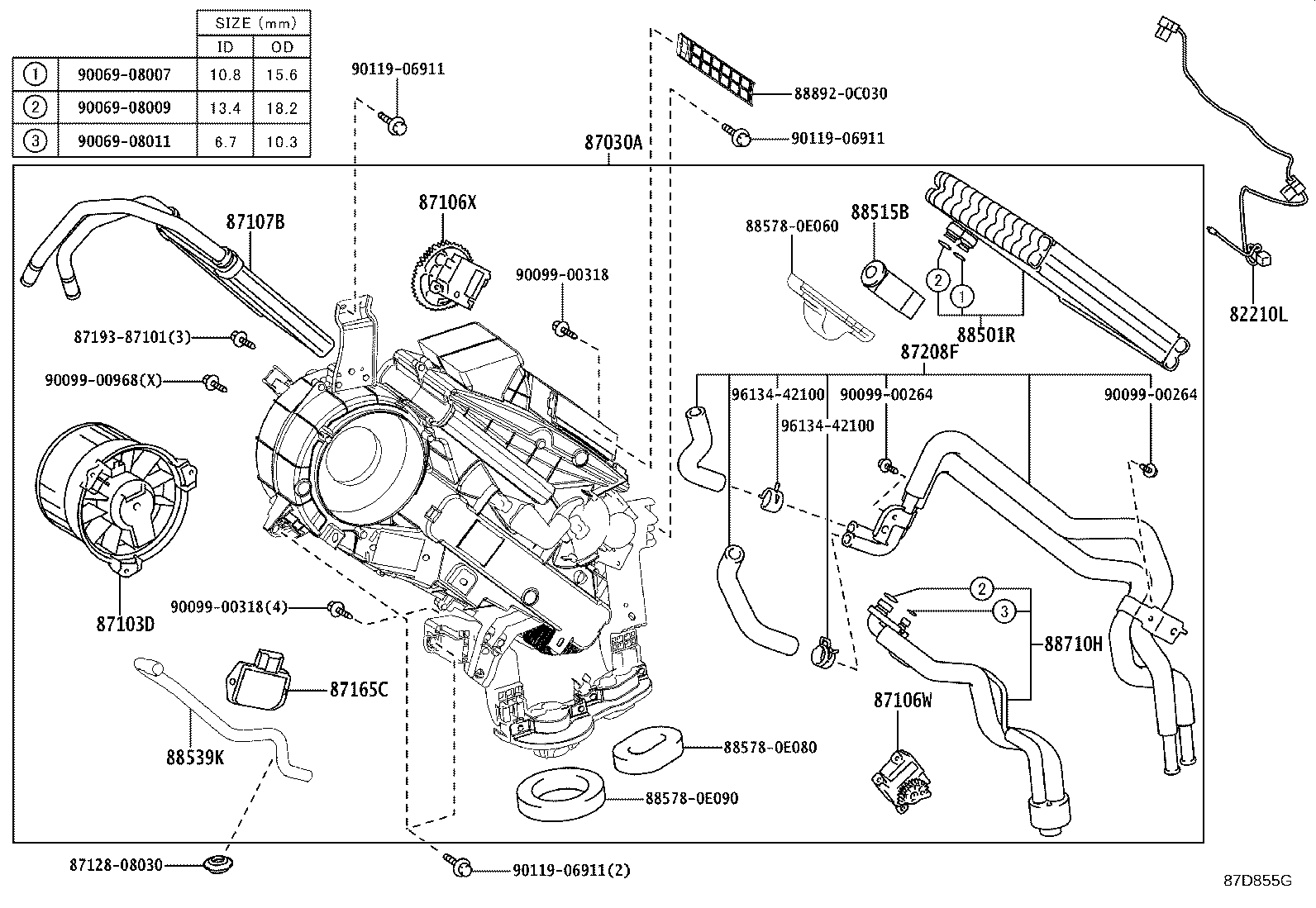

REAR,AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82210-0C030 |
ASU50,GSU5# |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-0E030 |
ASU50,GSU5# |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-0C061 |
ASU50,GSU5# |
1 | ||
| 87106W - SERVO SUB-ASSY, DAMPER(FOR AIRMIX REAR) | ||||
| 87106-0C130 |
ASU50,GSU5# |
1 | ||
| 87106X - SERVO SUB-ASSY, DAMPER(FOR MODE REAR) | ||||
| 87106-0E160 |
ASU50,GSU5# |
1 | ||
| 87106-0C120 |
ASU50,GSU5# |
1 | ||
| 87107B - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0E030 |
ASU50,GSU5# |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-28020 |
ASU50,GSU5# |
1 | ||
| 87165-45030 |
ASU50,GSU5# |
1 | ||
| 87208F - PIPE SUB-ASSY, WATER | ||||
| 87207-0E040 |
ASU50,GSU5# |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-0C080 |
ASU50,GSU5# |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-0E110 |
ASU50,GSU5# |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-0E060 |
ASU50,GSU5# |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0E270 |
ASU50,GSU5# |
1 | ||
| Common parts | ||||
| 87128-08030 | ||||
| 87193-87101 | ||||
| 88578-0E060 | ||||
| 88578-0E080 | ||||
| 88578-0E090 | ||||
| 88892-0C030 | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90069-08011 | ||||
| 90099-00264 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-06911 | ||||
| 96134-42100 | ||||
