ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )RUS ; (1312- )8FC..ARL

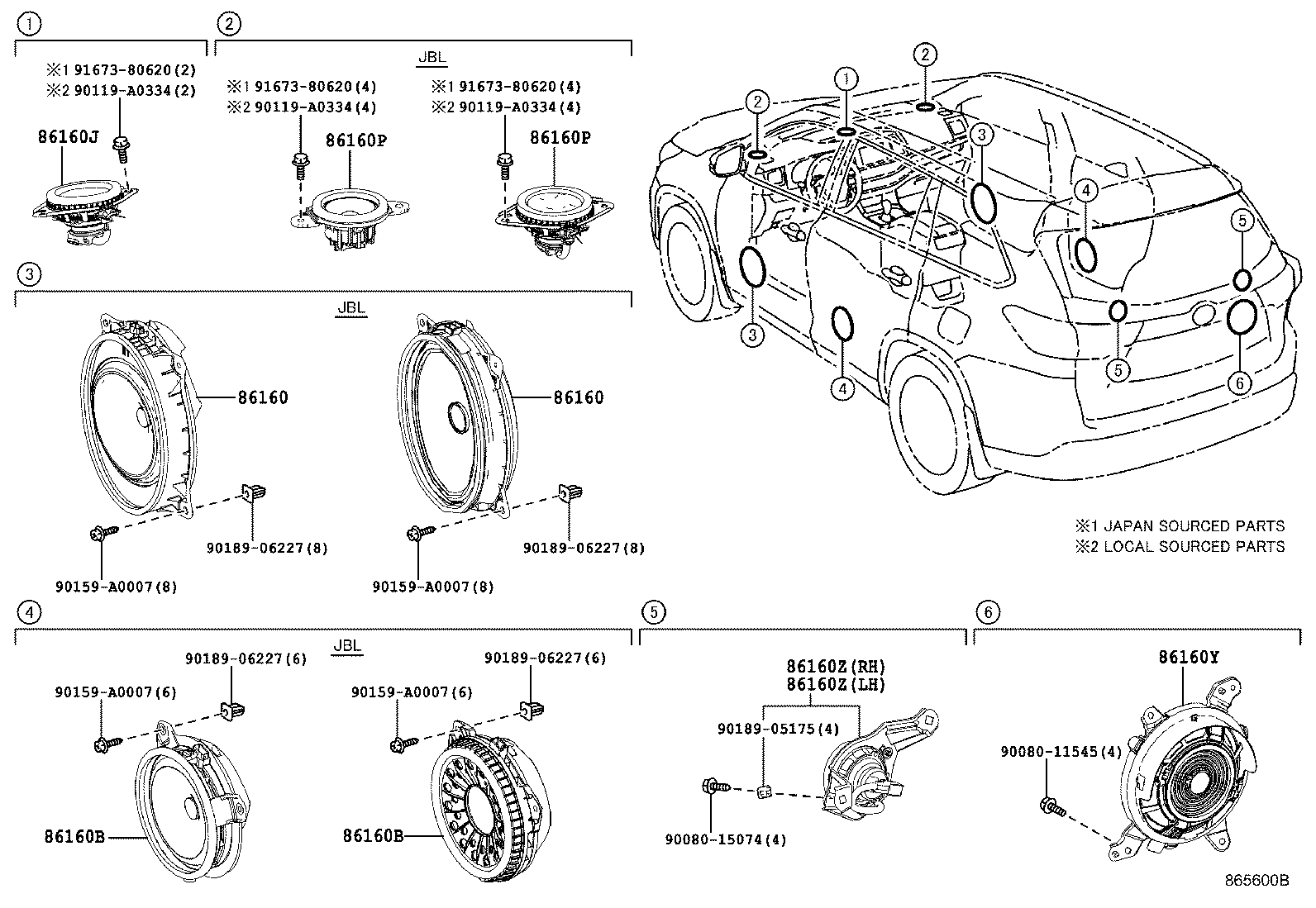

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86160J 86160P 86160P 86160Y 86160Z 86160Z 9008011545 9008015074 90119A0334 90119A0334 90119A0334 90159A0007 90159A0007 90159A0007 90159A0007 9018905175 9018906227 9018906227 9018906227 9018906227 9167380620 9167380620 9167380620
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-0E250

ASU50,GSU5#

 2
86160-0WU60

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-0E250

ASU50,GSU5#

 2
86160-0WU60

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER

 2
86160B - SPEAKER ASSY, REAR
86160-0R110

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER

 2
86160-0C140

ASU50,GSU5#

 2
86160B - SPEAKER ASSY, REAR
86160-0R110

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER

 2
86160-0C140

ASU50,GSU5#

 2
86160J - SPEAKER ASSY, FRONT NO.3
86160-0WU80

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-0WU50

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER

 2
86160-0E240

ASU50,GSU5#

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-0WU50

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER

 2
86160-0E240

ASU50,GSU5#

 2
86160Y - SPEAKER ASSY, REAR NO.2
86150-0E010

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER

 1
86160Z - SPEAKER ASSY, REAR NO.3
86150-0E020

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER,RH

 1
86150-0E030

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER,LH

 1
86160Z - SPEAKER ASSY, REAR NO.3
86150-0E020

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER,RH

 1
86150-0E030

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER,LH

 1
Common parts
90080-11545
90080-15074
90119-A0334
90159-A0007
90189-05175
90189-06227
91673-80620
