ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

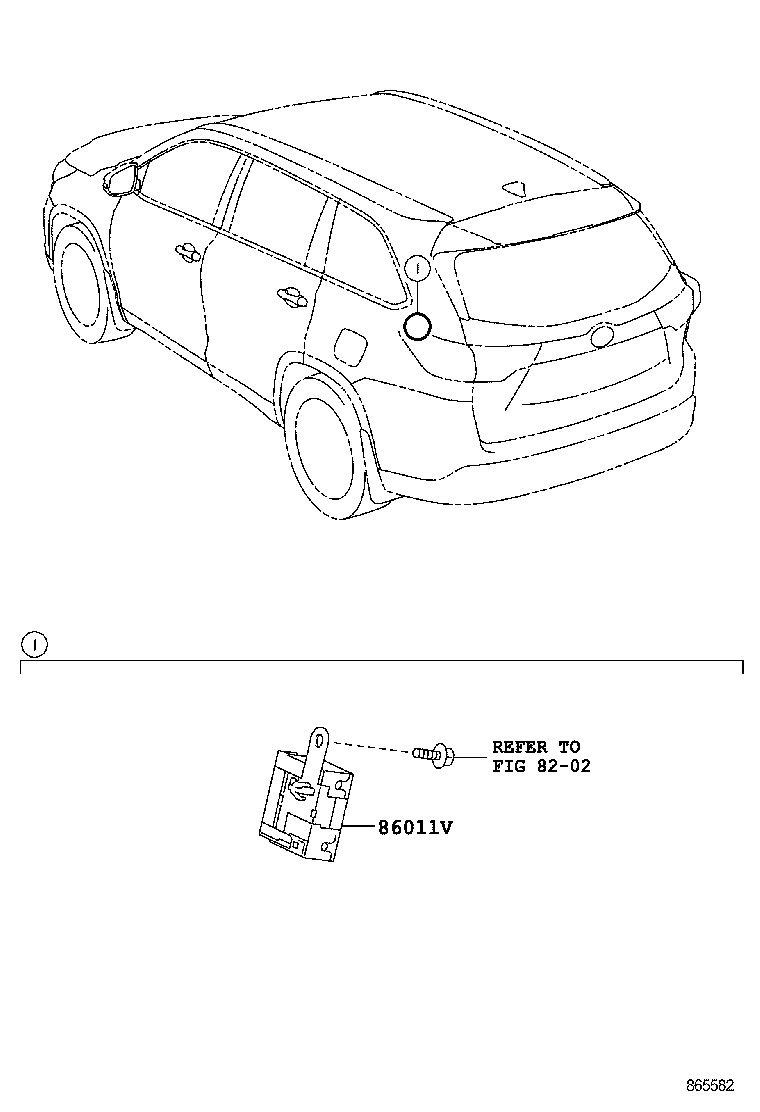

ILLUST NO. 2 OF 3(1312- )

Click highlighted areas on diagram

CONDENSEAR

diagram 8202 86011V
Part # Description Qty Price
86011V - CONDENSER, RADIO SETTING
90980-04204

ASU50,GSU5#

 1
Linked diagrams
8202

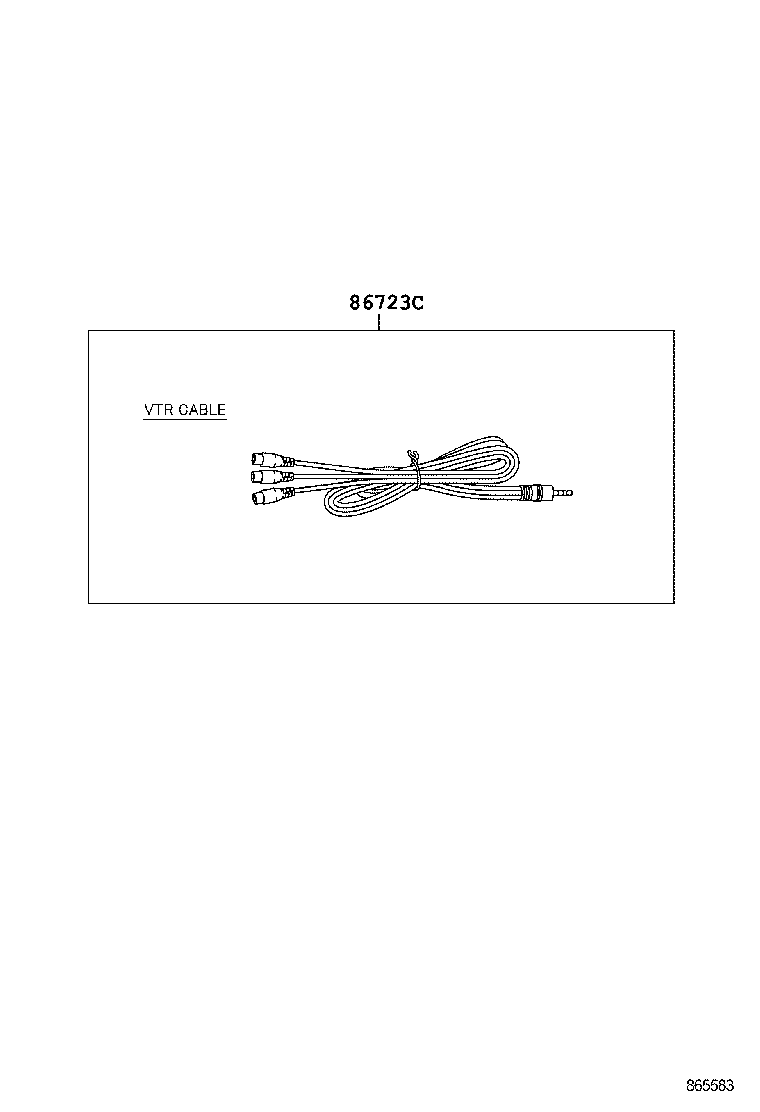

ILLUST NO. 3 OF 3(1312- )6FC..RUS

Click highlighted areas on diagram

VTR CABLE

diagram 86723C
Part # Description Qty Price

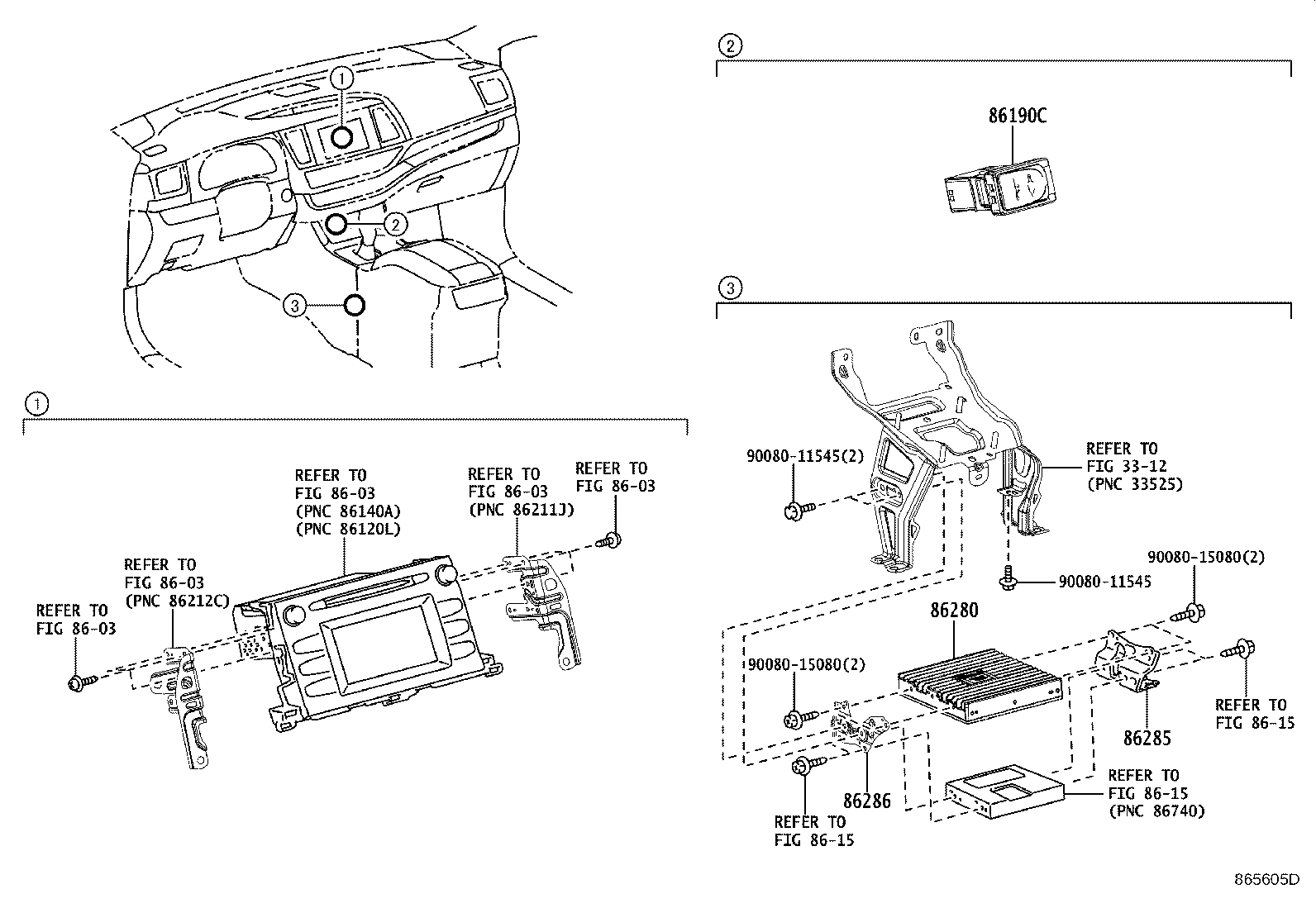

ILLUST NO. 1 OF 3(1312- )RUS ; (1312- )8FC..ARL

Click highlighted areas on diagram

diagram 3312 8603 8603 8603 8603 8603 86190C 86280 86285 86286 9008011545 9008011545 9008015080 9008015080
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0R010

ASU50,GSU5#

 1
86190-0E070

ASU50,GSU5#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0E120

ASU50,GSU55..LIMD..RUS

AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-0E051

ASU50,GSU55..RUS

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-0E051

ASU50,GSU55..RUS

 1
Common parts
90080-11545
90080-15080
Linked diagrams
3312
8603
