ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

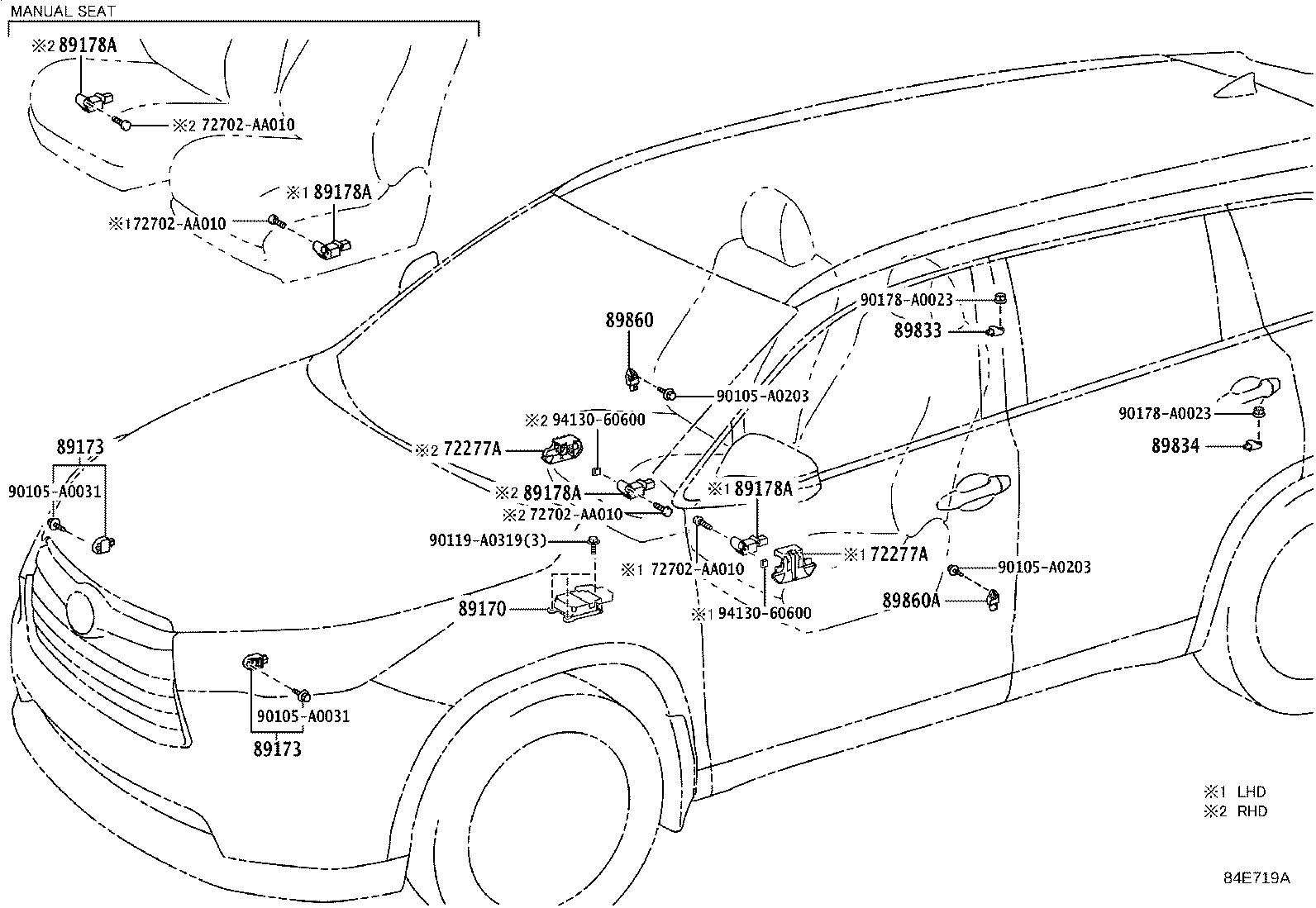

Click highlighted areas on diagram

diagram 72277A 72277A 72702AA010 72702AA010 72702AA010 72702AA010 89170 89173 89173 89178A 89178A 89178A 89178A 89833 89834 89860 89860A 90105A0031 90105A0031 90105A0203 90105A0203 90119A0319 90178A0023 90178A0023 9413060600 9413060600
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-08010

ASU50,GSU5#

 1
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-08010

ASU50,GSU5#

 1
89170 - SENSOR ASSY, AIR BAG
89170-0E130

ASU50,GSU55..RUS

 1
89173 - SENSOR, AIR BAG, FRONT
89173-09885

ASU50,GSU5#

 1
89173 - SENSOR, AIR BAG, FRONT
89173-09885

ASU50,GSU5#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06040

ASU50,GSU5#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06040

ASU50,GSU5#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06040

ASU50,GSU5#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06040

ASU50,GSU5#

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-0R100

ASU50,GSU5#

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-0R100

ASU50,GSU5#

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-0R070

ASU50,GSU5#

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-0R070

ASU50,GSU5#

 1
Common parts
72702-AA010
90105-A0031
90105-A0203
90119-A0319
90178-A0023
94130-60600
