ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

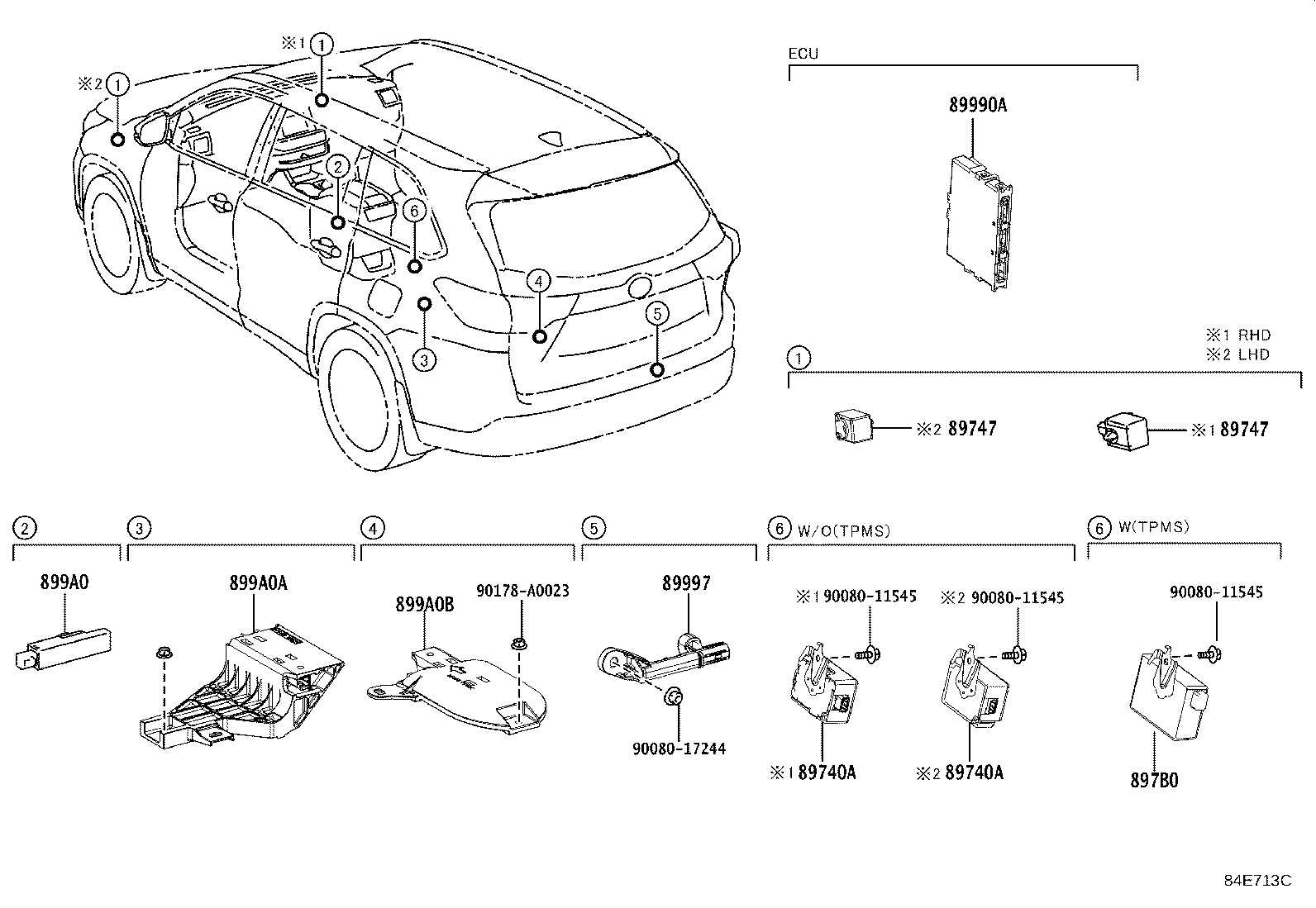

Click highlighted areas on diagram

W(SMART)

diagram 89740A 89740A 89747 89747 897B0 89990A 89997 899A0 899A0A 899A0B 9008011545 9008011545 9008011545 9008017244 90178A0023
Part # Description Qty Price
89740A - RECEIVER ASSY, SMART DOOR CONTROL
89740-48220

ASU50,GSU55..LIMD..RUS

 1
89740A - RECEIVER ASSY, SMART DOOR CONTROL
89740-48220

ASU50,GSU55..LIMD..RUS

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-0R020

GSU5#..ARL;ASU50,GSU55..LIMD..RUS

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-0R020

GSU5#..ARL;ASU50,GSU55..LIMD..RUS

 1
89990A - COMPUTER ASSY, SMART KEY
89990-0E080

ASU50,GSU5#..LIMD

 1
89990-0E081

ASU50,GSU5#..LIMD

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-0E050

ASU50,GSU5#..LIMD

LUGGAGE

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-06030

ASU50,GSU5#..LIMD

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-0E010

ASU50,GSU5#..LIMD

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-0E020

ASU50,GSU5#..LIMD

 1
Common parts
90080-11545
90080-17244
90178-A0023
