ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

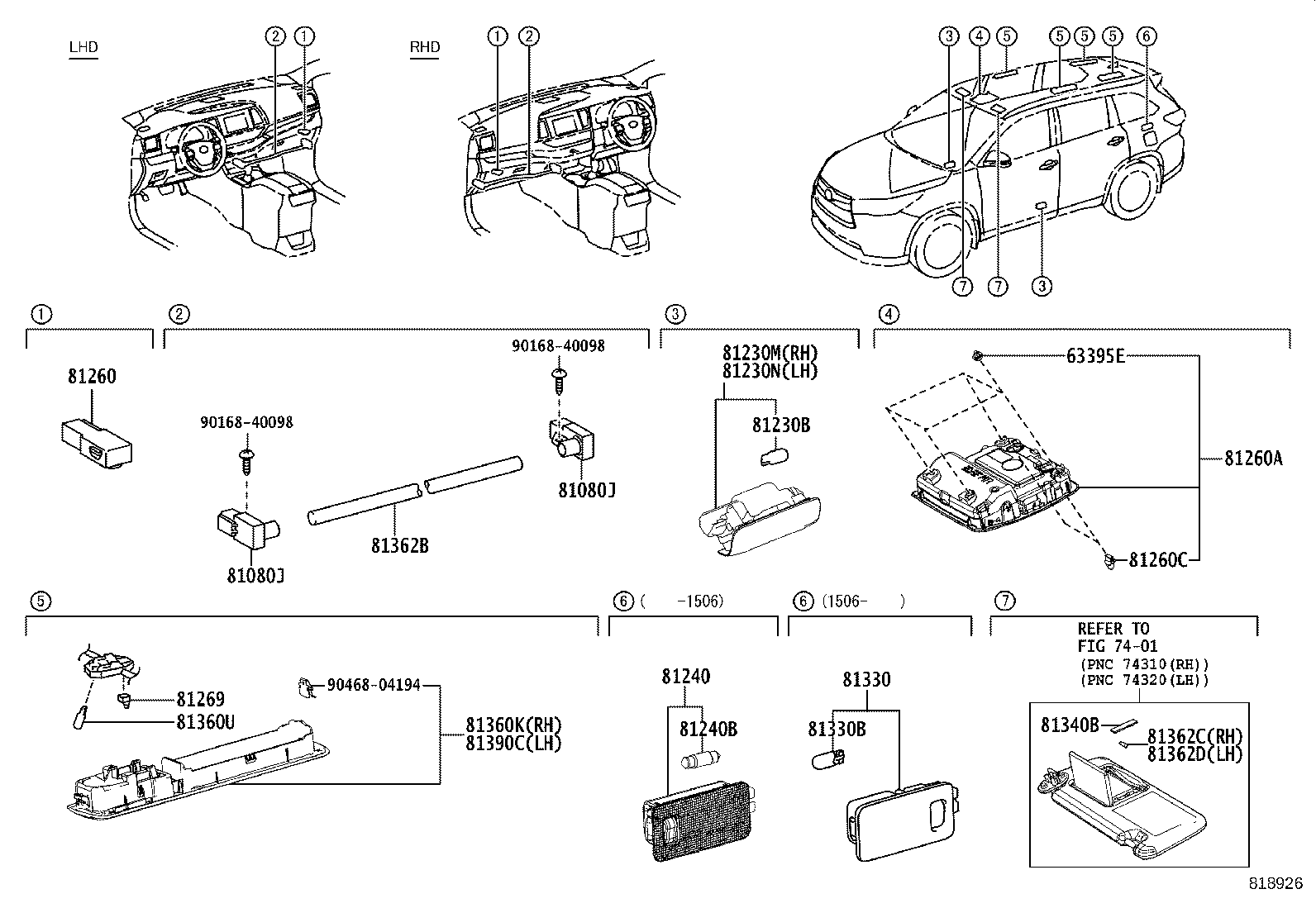

Click highlighted areas on diagram

diagram 63395E 7401 81080J 81080J 81230B 81230M 81230N 81240 81240B 81260 81260A 81260C 81269 81330 81330B 81340B 81360K 81360U 81362B 81362C 81362D 81390C 9016840098 9016840098 9046804194
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
63395-12150

ASU50;GSU5#..LE;GSU55..LIMD..RUS

 4
62489-0E010

ASU50,GSU55..LIMD..RUS

MOON ROOF-WITH(TILT & SLIDE)

 4
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-0E020

ASU50,GSU5#..LIMD

 2
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-0E020

ASU50,GSU5#..LIMD

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

ASU50,GSU5#

12V 5W

 2
81230M - LAMP ASSY, COURTESY, RH
81230-06040

ASU50,GSU5#

 1
81230N - LAMP ASSY, COURTESY, LH
81230-06040

ASU50,GSU5#

 1
81240 - LAMP ASSY, ROOM, NO.1
81250-48010

ASU50,GSU5#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-13050

ASU50,GSU5#

12V 5W

 1
81260 - LAMP ASSY, GLOVE BOX
81080-48010

ASU50,GSU5#

 1
81260A - LAMP ASSY, MAP
63650-0E190A0

ASU50,GSU55..LIMD..RUS

MOON ROOF-WITH(TILT & SLIDE),FLAXEN,TRIM0#

 1
63650-0E190B0

ASU50,GSU55..LIMD..RUS

MOON ROOF-WITH(TILT & SLIDE),GRAY,TRIM2#

 1
63650-0E180A0

ASU50,GSU55..RUS

FLAXEN,TRIM0#

 1
63650-0E180B0

ASU50,GSU55..RUS

GRAY,TRIM2#

 1
81260C - BULB(FOR MAP LAMP)
90084-81002

ASU50,GSU5#

12V 5W

 2
81269 - SWITCH, MAP LAMP
84532-58010

ASU50,GSU5#

 4
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-58010

ASU50,GSU5#

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

ASU50,GSU5#

12V 5W

 1
81360K - LAMP ASSY, SPOT, RH
81360-0E020A0

ASU50;GSU5#..LIMD;GSU55..LE..RUS

FLAXEN,TRIM0#

 2
81360-0E020B0

ASU50,GSU5#

GRAY,TRIM2#

 2
81360U - BULB, SPOT LAMP
90981-11062

ASU50,GSU5#

 4
81362B - LENS, INTERIOR ILLUMINATION LAMP
81362-0E010

ASU50,GSU5#..LIMD

 1
81390C - LAMP ASSY, SPOT, LH
81390-0E010B0

ASU50,GSU5#

GRAY,TRIM2#

 2
81390-0E010A0

ASU50;GSU5#..LIMD;GSU55..LE..RUS

FLAXEN,TRIM0#

 2
Common parts
90168-40098
90468-04194
Linked diagrams
7401
