ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)ASU50 ; (1312-1611)GSU5#..LIMD ; (1312-1611)GSU55..LE..RUS

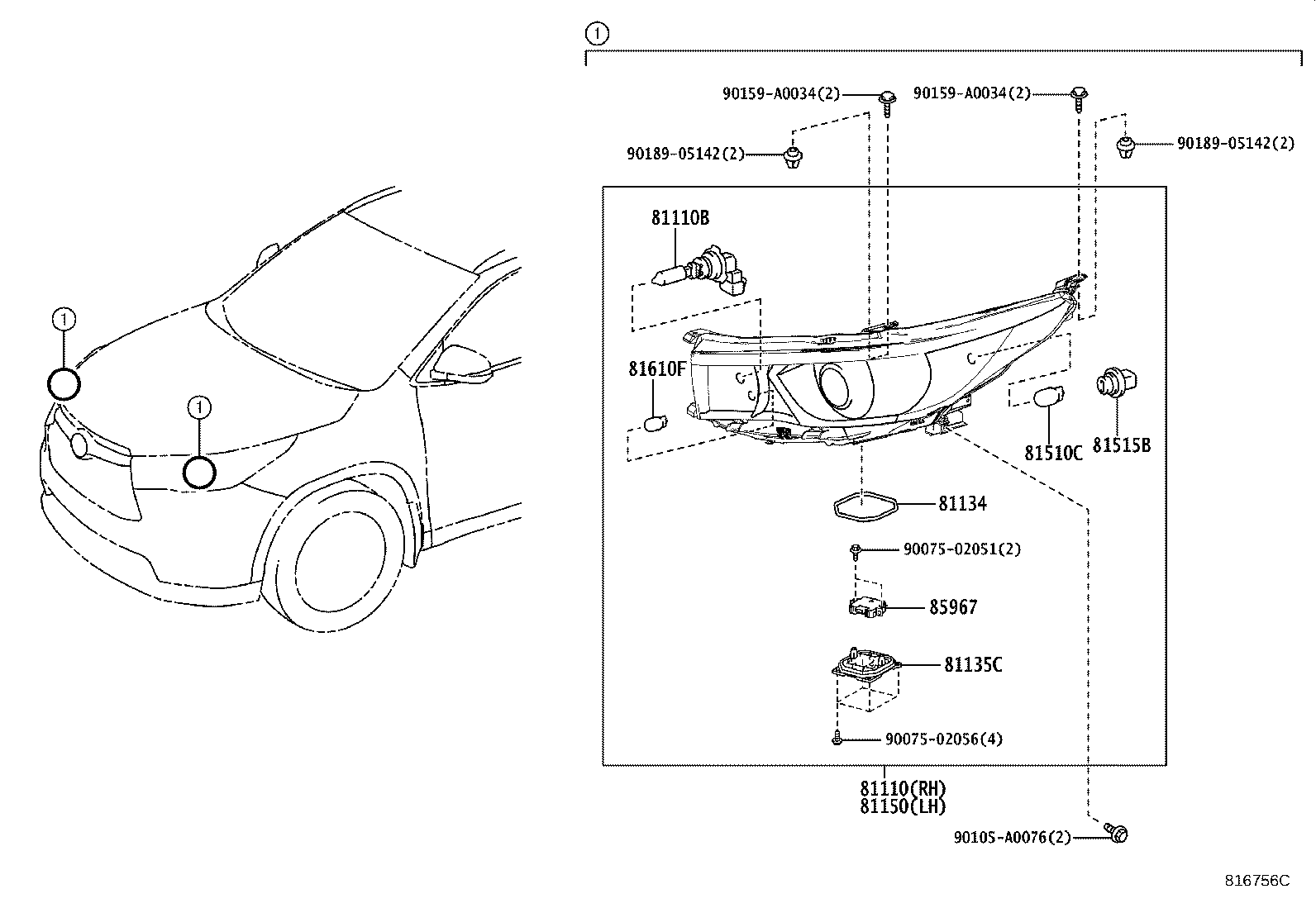

Click highlighted areas on diagram

LED HEADLAMP

diagram 81110 81110B 81134 81135C 81150 81510C 81515B 81610F 85967 9007502051 9007502056 90105A0076 90159A0034 90159A0034 9018905142 9018905142
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0E220

ASU50,GSU55..LIMD..RUS

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ASU50,GSU5#

12V65W(SAE),60W(ECE)

 2
81134 - GASKET, HEADLAMP
90075-68007

ASU50,GSU5#..LIMD

 1
81135C - COVER, HEADLAMP BACK, NO.1
81135-0E220

ASU50,GSU5#..LIMD

 2
81150 - HEADLAMP ASSY, LH
81150-0E220

ASU50,GSU55..LIMD..RUS

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ASU50,GSU5#

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ASU50,GSU5#

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11069

ASU50,GSU5#

12V 5W

 2
85967 - COMPUTER, LIGHT CONTROL
85967-02020

ASU50,GSU5#..LIMD

 2
Common parts
90075-02051
90075-02056
90105-A0076
90159-A0034
90189-05142
