ASU50L-ARTGKX (2013)
Toyota Highlander/Kluger

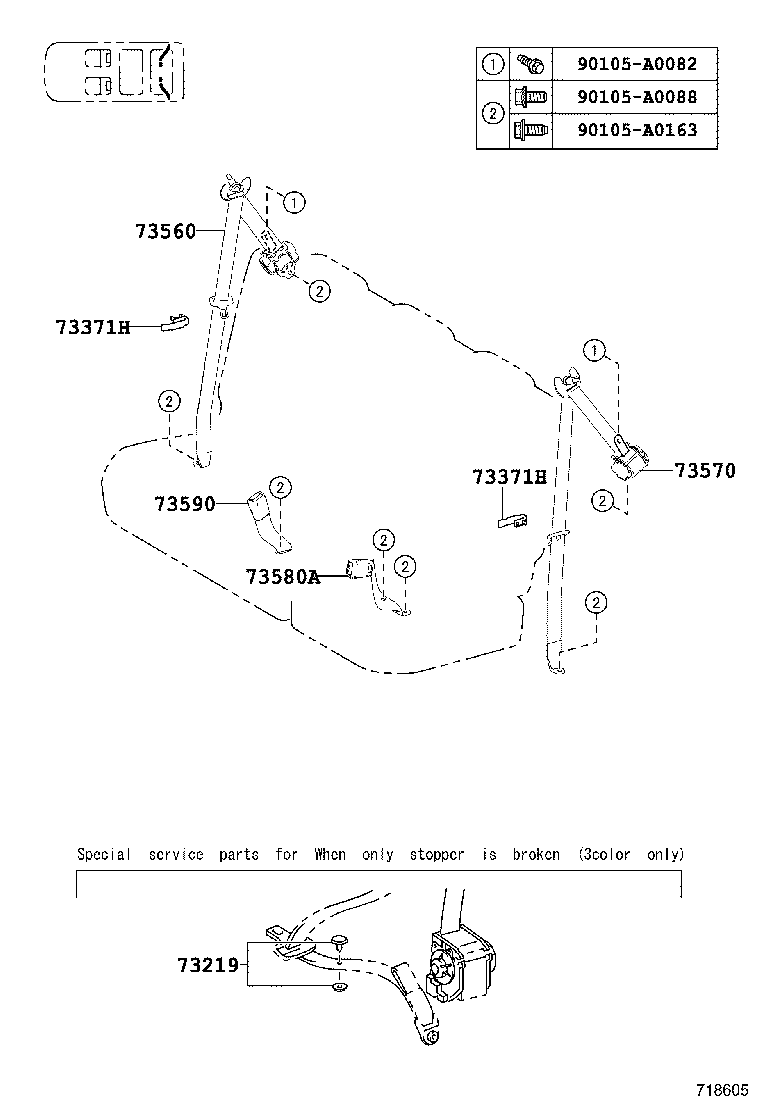

ILLUST NO. 3 OF 3(1312- )
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ASU50,GSU5# GRAY |
1 | ||
| 73219-33030 |
ASU50,GSU5# BEIGE |
1 | ||
| 73219-33010 |
ASU50,GSU5# BLACK |
1 | ||
| 73371H - HANGER, REAR NO.2 SEAT SHOULDER BELT | ||||
| 73371-0E060C0 |
ASU50,GSU5# BLACK,TRIM2# |
2 | ||
| 73371-0E060A0 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS FLAXEN,TRIM0# |
2 | ||
| 73371H - HANGER, REAR NO.2 SEAT SHOULDER BELT | ||||
| 73371-0E060C0 |
ASU50,GSU5# BLACK,TRIM2# |
2 | ||
| 73371-0E060A0 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS FLAXEN,TRIM0# |
2 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-0E070A0 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS FLAXEN,TRIM0# |
1 | ||
| 73560-0E070C0 |
ASU50,GSU5# BLACK,TRIM2# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-0E120A0 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS FLAXEN,TRIM0# |
1 | ||
| 73570-0E120C0 |
ASU50,GSU5# BLACK,TRIM2# |
1 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-0E050C0 |
ASU50,GSU5# BLACK,TRIM2# |
1 | ||
| 73580-0E050A0 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS FLAXEN,TRIM0# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-0E050C0 |
ASU50,GSU5# BLACK,TRIM2# |
1 | ||
| 73580-0E050A0 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS FLAXEN,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-A0082 | ||||
| 90105-A0088 | ||||
| 90105-A0163 | ||||

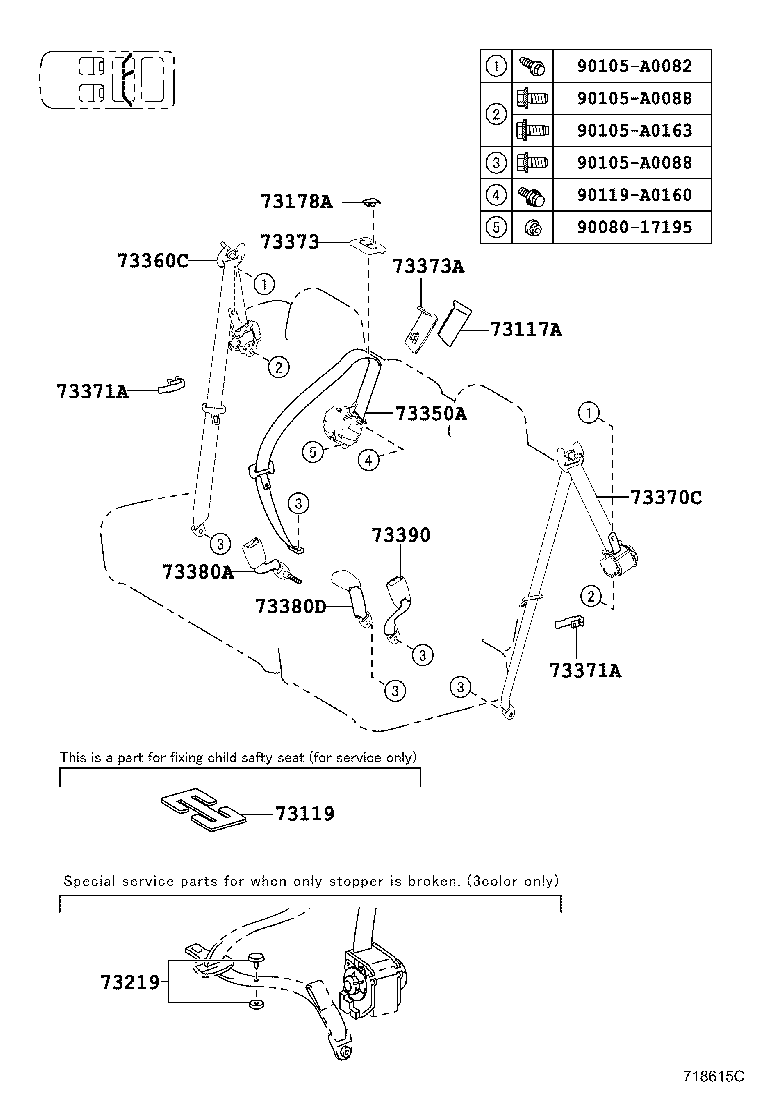

ILLUST NO. 2 OF 3(1312- )RUS
REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73117A - PROTECTOR, BELT | ||||
| 73117-0E020 |
ASU50,GSU5# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ASU50,GSU55..RUS |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0E030A0 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS FLAXEN,TRIM0# |
1 | ||
| 73178-0E030C0 |
ASU50,GSU5# BLACK,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ASU50,GSU5# GRAY |
1 | ||
| 73219-33030 |
ASU50,GSU5# BEIGE |
1 | ||
| 73219-33010 |
ASU50,GSU5# BLACK |
1 | ||
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73350-0E100A1 |
ASU50,GSU55..RUS FLAXEN,TRIM0# |
1 | ||
| 73350-0E100C1 |
ASU50,GSU55..RUS BLACK,TRIM2# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-0E080C0 |
ASU50,GSU55..RUS BLACK,TRIM2# |
1 | ||
| 73360-0E080A0 |
ASU50,GSU55..RUS FLAXEN,TRIM0# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-0E080C0 |
ASU50,GSU55..RUS BLACK,TRIM2# |
1 | ||
| 73370-0E080A0 |
ASU50,GSU55..RUS FLAXEN,TRIM0# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-0E060A0 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS FLAXEN,TRIM0# |
2 | ||
| 73371-0E060C0 |
ASU50,GSU5# BLACK,TRIM2# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-0E060A0 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS FLAXEN,TRIM0# |
2 | ||
| 73371-0E060C0 |
ASU50,GSU5# BLACK,TRIM2# |
2 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-0E130A0 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS FLAXEN,TRIM0# |
1 | ||
| 73373-0E130C0 |
ASU50,GSU5# BLACK,TRIM2# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-0E090C0 |
ASU50,GSU55..RUS BLACK,TRIM2# |
1 | ||
| 73380-0E090A0 |
ASU50,GSU55..RUS FLAXEN,TRIM0# |
1 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-0E100A0 |
ASU50,GSU55..RUS FLAXEN,TRIM0# |
1 | ||
| 73380-0E100C0 |
ASU50,GSU55..RUS BLACK,TRIM2# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73480-0E050A0 |
ASU50,GSU55..RUS FLAXEN,TRIM0# |
1 | ||
| 73480-0E050C0 |
ASU50,GSU55..RUS BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90080-17195 | ||||
| 90105-A0082 | ||||
| 90105-A0088 | ||||
| 90105-A0163 | ||||
| 90119-A0160 | ||||

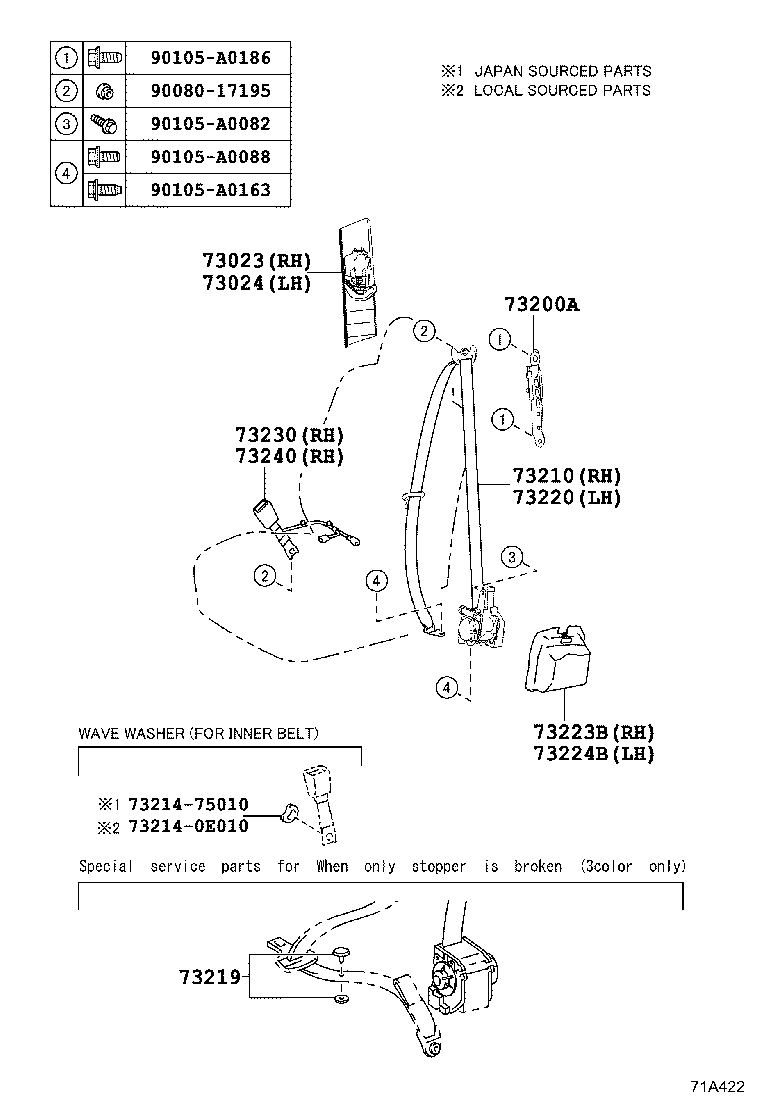

ILLUST NO. 1 OF 3(1312- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-06070A1 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS FLAXEN,TRIM0# |
1 | ||
| 73023-06070B0 |
ASU50,GSU5# GRAY,TRIM2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-06070A1 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS FLAXEN,TRIM0# |
1 | ||
| 73024-06070B0 |
ASU50,GSU5# GRAY,TRIM2# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0C020 |
ASU50,GSU5# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0E090A0 |
ASU50,GSU55..LIMD..RUS FLAXEN,TRIM0# |
1 | ||
| 73210-0E091C0 |
ASU50,GSU55..RUS BLACK,TRIM2# |
1 | ||
| 73210-0E091A0 |
ASU50,GSU55..LIMD..RUS FLAXEN,TRIM0# |
1 | ||
| 73210-0E090C0 |
ASU50,GSU55..RUS BLACK,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ASU50,GSU5# GRAY |
1 | ||
| 73219-33030 |
ASU50,GSU5# BEIGE |
1 | ||
| 73219-33010 |
ASU50,GSU5# BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0E110C0 |
ASU50,GSU55..RUS BLACK,TRIM2# |
1 | ||
| 73220-0E110A0 |
ASU50,GSU55..LIMD..RUS IVORY,TRIM0# |
1 | ||
| 73220-0E111C0 |
ASU50,GSU55..RUS BLACK,TRIM2# |
1 | ||
| 73220-0E111A0 |
ASU50,GSU55..LIMD..RUS IVORY,TRIM0# |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-0E020 |
ASU50,GSU5# |
1 | ||
| 73224B - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-0E020 |
ASU50,GSU5# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73240-0E070C0 |
ASU50,GSU55..LIMD..RUS BLACK,TRIM2# |
1 | ||
| 73240-0E070A0 |
ASU50,GSU55..LIMD..RUS FLAXEN,TRIM0# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0E080A0 |
ASU50,GSU55..LIMD..RUS FLAXEN,TRIM0# |
1 | ||
| 73230-0E080C0 |
ASU50,GSU55..LIMD..RUS BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 73214-0E010 | ||||
| 73214-75010 | ||||
| 90080-17195 | ||||
| 90105-A0082 | ||||
| 90105-A0088 | ||||
| 90105-A0163 | ||||
| 90105-A0186 | ||||
