ASU50L-ARTGKX (2013)
Toyota Highlander/Kluger

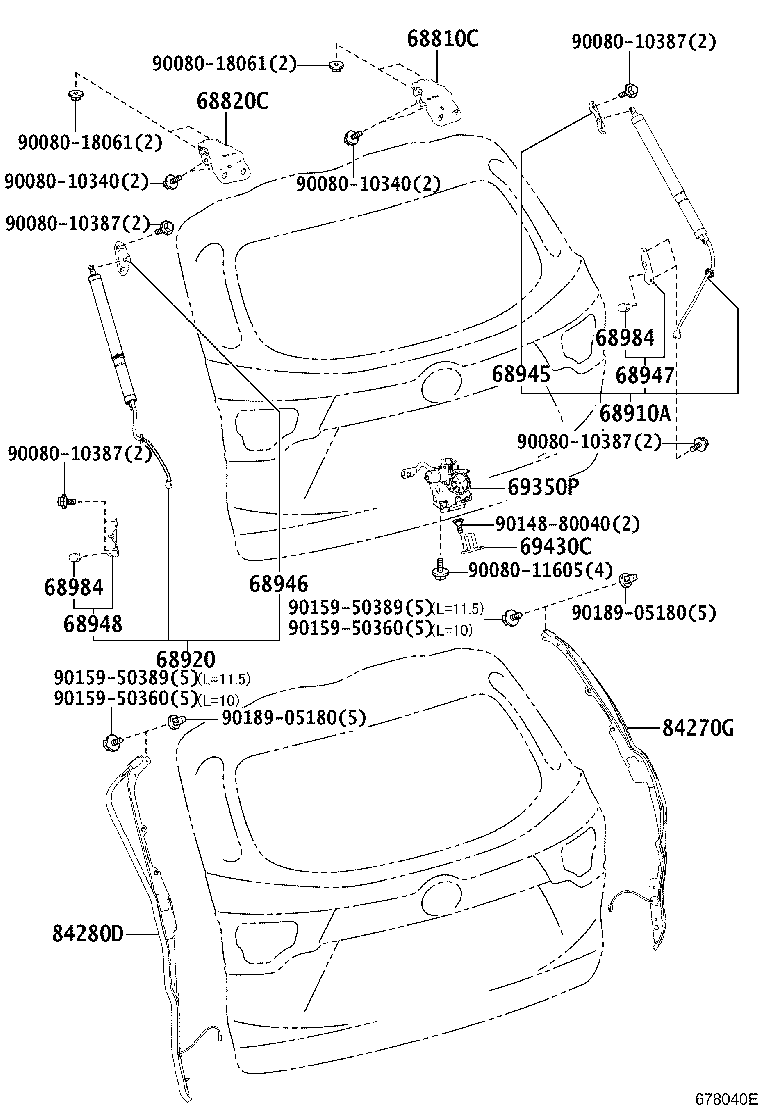

ILLUST NO. 1 OF 2(1312- )ASU50 ; (1312- )GSU5#..LIMD ; (1312- )8FC..LE..ARL ; (1312- )GS
W(POWER BACK DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-0E160 |
ASU50,GSU5# |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-0E130 |
ASU50,GSU5# |
1 | ||
| 68910A - UNIT ASSY SET, POWER BACK DOOR, RH | ||||
| 68910-09021 |
ASU50,GSU5#..LIMD |
1 | ||
| 68910-09030 |
ASU50,GSU55..LIMD..RUS AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER |
1 | ||
| 68910-09020 |
ASU50,GSU5#..LIMD |
1 | ||
| 68910-09031 |
ASU50,GSU55..LIMD..RUS AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER |
1 | ||
| 68910-09022 |
ASU50,GSU5#..LIMD |
1 | ||
| 68910-09040 |
ASU50,GSU55..LIMD..RUS AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER |
1 | ||
| 68920 - UNIT ASSY SET, POWER BACK DOOR, LH | ||||
| 68920-09031 |
ASU50,GSU55..LIMD..RUS AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER |
1 | ||
| 68920-09030 |
ASU50,GSU55..LIMD..RUS AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER |
1 | ||
| 68910-09051 |
ASU50,GSU5#..LIMD |
1 | ||
| 68910-09052 |
ASU50,GSU55..LIMD..RUS AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER |
1 | ||
| 68920-09020 |
ASU50,GSU5#..LIMD |
1 | ||
| 68920-09021 |
ASU50,GSU5#..LIMD |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68903-0E010 |
ASU50,GSU5#..LIMD |
1 | ||
| 68903-0E010 |
ASU50,GSU5#..LIMD |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68904-0E010 |
ASU50,GSU5#..LIMD |
1 | ||
| 68904-0E010 |
ASU50,GSU5#..LIMD |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68903-0E020 |
ASU50,GSU5#..LIMD |
1 | ||
| 68903-0E020 |
ASU50,GSU5#..LIMD |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68904-0E020 |
ASU50,GSU5#..LIMD |
1 | ||
| 68904-0E020 |
ASU50,GSU5#..LIMD |
1 | ||
| 68984 - STOPPER, BACK DOOR STAY | ||||
| 68984-0E010 |
ASU50,GSU5# |
2 | ||
| 68984 - STOPPER, BACK DOOR STAY | ||||
| 68984-0E010 |
ASU50,GSU5# |
2 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-0E100 |
ASU50,GSU5#..LIMD |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-0E040 |
ASU50,GSU5# |
1 | ||
| 69430-0E070 |
ASU50,GSU5# |
1 | ||
| 84270G - SENSOR ASSY, POWER BACK DOOR, RH | ||||
| 84270-0E021 |
ASU50,GSU5#..LIMD |
1 | ||
| 84270-0E020 |
ASU50,GSU5#..LIMD |
1 | ||
| 84280D - SENSOR ASSY, POWER BACK DOOR, LH | ||||
| 84280-0E020 |
ASU50,GSU5#..LIMD |
1 | ||
| 84280-0E021 |
ASU50,GSU5#..LIMD |
1 | ||
| Common parts | ||||
| 90080-10340 | ||||
| 90080-10387 | ||||
| 90080-11605 | ||||
| 90080-18061 | ||||
| 90148-80040 | ||||
| 90159-50360 | ||||
| 90159-50389 | ||||
| 90189-05180 | ||||

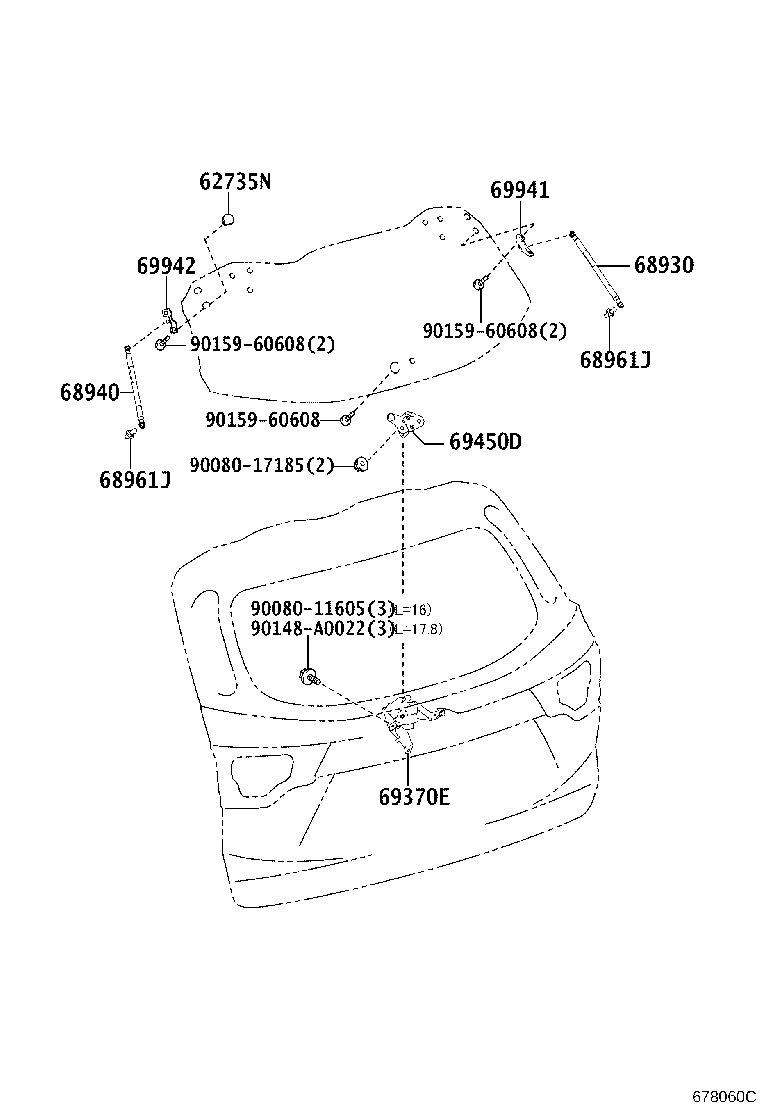

ILLUST NO. 2 OF 2(1312- )ASU50 ; (1312- )GSU5#..LIMD ; (1312- )8FC..LE..ARL ; (1312- )GS
HATCH GLASS PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68930 - STAY ASSY, BACK WINDOW, RH | ||||
| 68930-0E030 |
ASU50,GSU5#..LIMD |
1 | ||
| 68930-0E050 |
ASU50,GSU5#..LIMD |
1 | ||
| 68940 - STAY ASSY, BACK WINDOW, LH | ||||
| 68940-0E030 |
ASU50,GSU5#..LIMD |
1 | ||
| 68940-0E050 |
ASU50,GSU5#..LIMD |
1 | ||
| 68961J - BOLT, BACK WINDOW STAY | ||||
| 68961-0E020 |
ASU50,GSU5#..LIMD |
2 | ||
| 68961J - BOLT, BACK WINDOW STAY | ||||
| 68961-0E020 |
ASU50,GSU5#..LIMD |
2 | ||
| 69370E - LOCK ASSY, BACK WINDOW | ||||
| 69370-0E020 |
ASU50,GSU5#..LIMD |
1 | ||
| 69450D - STRIKER ASSY, BACK WINDOW LOCK | ||||
| 69450-0E030 |
ASU50,GSU5#..LIMD |
1 | ||
| 69941 - BRACKT, BACK DOOR GLASS GUIDE, UPPER RH | ||||
| 69941-0E040 |
ASU50,GSU5#..LIMD |
1 | ||
| 69942 - BRACKT, BACK DOOR GLASS GUIDE, UPPER LH | ||||
| 69942-0E040 |
ASU50,GSU5#..LIMD |
1 | ||
| Common parts | ||||
| 90080-11605 | ||||
| 90080-17185 | ||||
| 90148-A0022 | ||||
| 90159-60608 | ||||
