ASU50L-ARTGKX (2013)
Toyota Highlander/Kluger

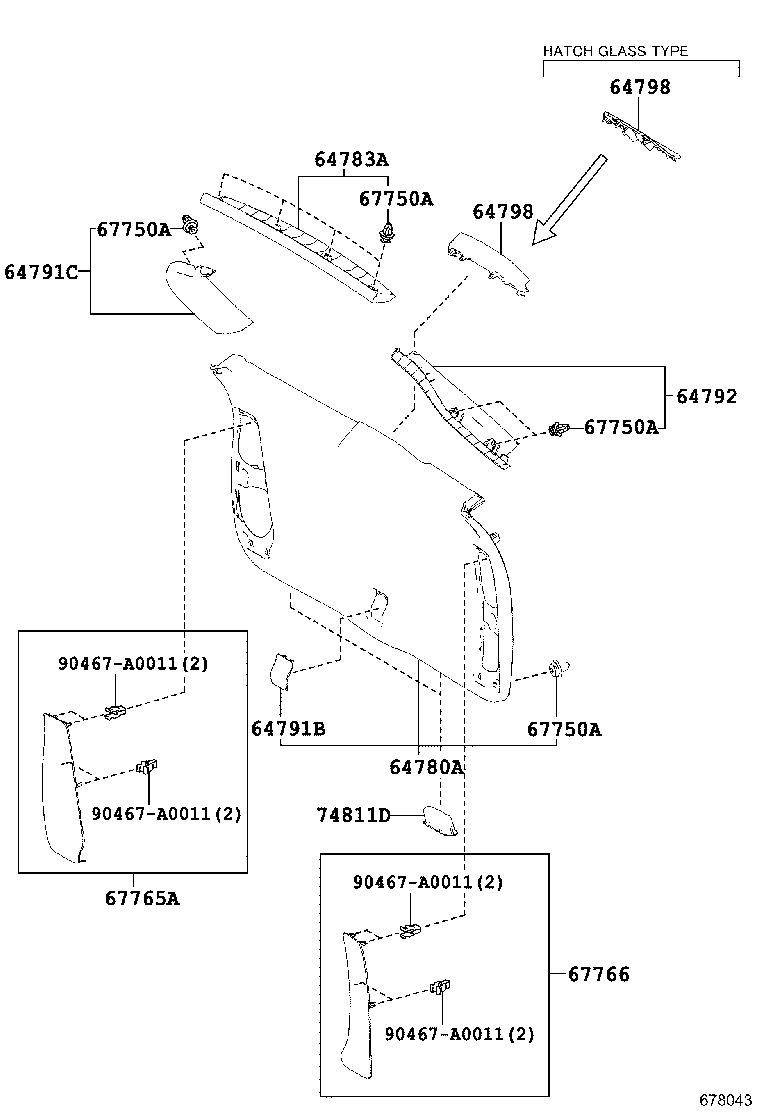

ILLUST NO. 2 OF 2(1312- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-0E060C0 |
ASU50,GSU5# BLACK,TRIM2# |
1 | ||
| 64780-0E060A0 |
ASU50,GSU5#..LIMD FLAXEN,TRIM0# |
1 | ||
| 64780-0E070A0 |
ASU50,GSU55..LIMD..RUS AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER,FLAXEN,TRIM0# |
1 | ||
| 64780-0E070C0 |
ASU50,GSU55..LIMD..RUS AUDIO-8INCH MONITOR *DA + NAVI JBL 12SPEKAER,BLACK,TRIM2# |
1 | ||
| 64783A - TRIM, BACK WINDOW PANEL, UPPER | ||||
| 64783-0E060A0 |
ASU50,GSU5#..LIMD FLAXEN,TRIM0# |
1 | ||
| 64783-0E060B0 |
ASU50,GSU5# GRAY,TRIM2# |
1 | ||
| 64791B - COVER, BACK DOOR TRIM | ||||
| 69321-0E050A0 |
ASU50,GSU5#..LIMD FLAXEN,TRIM0# |
1 | ||
| 69321-0E050C0 |
ASU50,GSU5# BLACK,TRIM2# |
1 | ||
| 64791C - COVER, BACK DOOR TRIM, RH | ||||
| 64791-0E070B0 |
ASU50,GSU5# GRAY,TRIM2# |
1 | ||
| 64791-0E070A0 |
ASU50,GSU5#..LIMD FLAXEN,TRIM0# |
1 | ||
| 64792 - COVER, BACK DOOR TRIM, LH | ||||
| 64792-0E070B0 |
ASU50,GSU5# GRAY,TRIM2# |
1 | ||
| 64792-0E070A0 |
ASU50,GSU5#..LIMD FLAXEN,TRIM0# |
1 | ||
| 64798 - COVER, BACK DOOR LOCK | ||||
| 64798-0E060A0 |
ASU50,GSU5#..LIMD FLAXEN,TRIM0# |
1 | ||
| 64798-0E060C0 |
ASU50,GSU5#..LIMD BLACK,TRIM2# |
1 | ||
| 64798 - COVER, BACK DOOR LOCK | ||||
| 64798-0E060A0 |
ASU50,GSU5#..LIMD FLAXEN,TRIM0# |
1 | ||
| 64798-0E060C0 |
ASU50,GSU5#..LIMD BLACK,TRIM2# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 62489-0E010 |
ASU50,GSU5# |
24 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 62489-0E010 |
ASU50,GSU5# |
24 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 62489-0E010 |
ASU50,GSU5# |
24 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 62489-0E010 |
ASU50,GSU5# |
24 | ||
| 67765A - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67765-0E020A0 |
ASU50,GSU5#..LIMD FLAXEN,TRIM0# |
1 | ||
| 67765-0E020C0 |
ASU50,GSU5# BLACK,TRIM2# |
1 | ||
| 67766 - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67766-0E020A0 |
ASU50,GSU5#..LIMD FLAXEN,TRIM0# |
1 | ||
| 67766-0E020C0 |
ASU50,GSU5# BLACK,TRIM2# |
1 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 74811-0E010C0 |
ASU50,GSU5# BLACK |
2 | ||
| Common parts | ||||
| 90467-A0011 | ||||

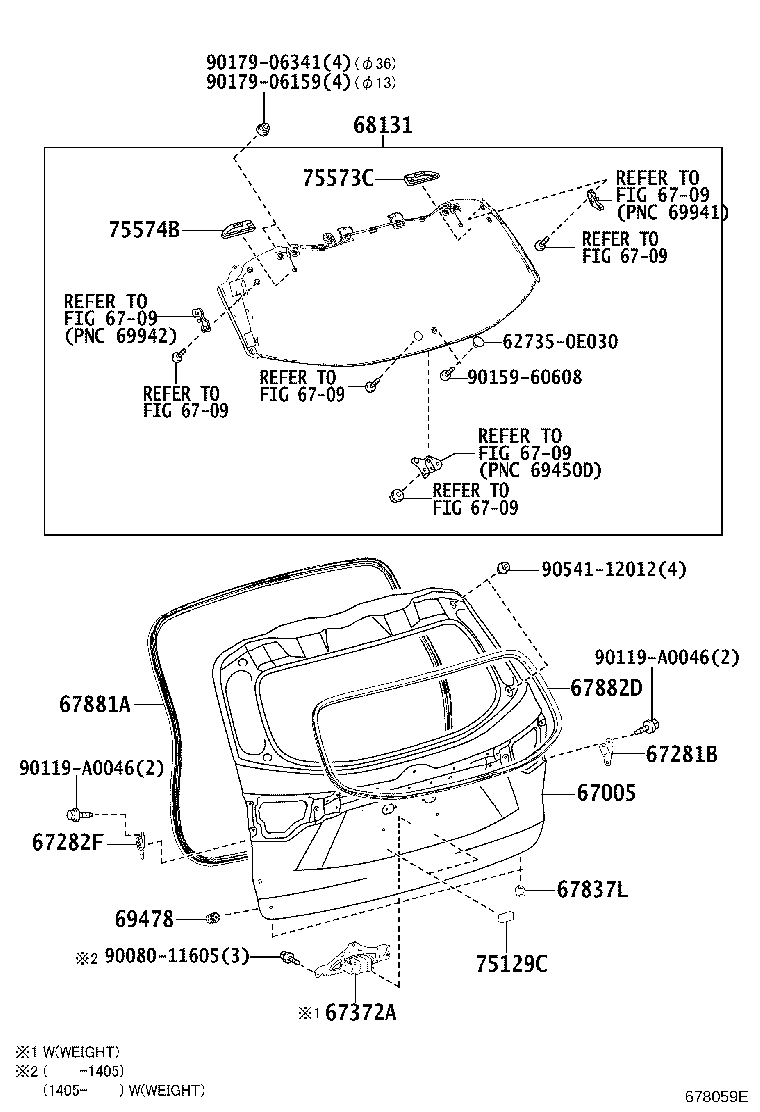

ILLUST NO. 1 OF 2(1312- )ASU50 ; (1312- )GSU5#..LIMD ; (1312- )8FC..LE..ARL ; (1312- )GS
DOOR PANEL (HATCH GLASS TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-0E300 |
ASU50,GSU5#..LIMD |
1 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-0E020 |
ASU50,GSU5# |
1 | ||
| 67282F - STOPPER, BACK DOOR, LWR LH | ||||
| 67282-0E010 |
ASU50,GSU5# |
1 | ||
| 67372A - WEIGHT, BACK DOOR | ||||
| 67372-0E010 |
ASU50..LIMD |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-0E010 |
ASU50,GSU5# |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-0E050 |
ASU50,GSU5# |
1 | ||
| 67882D - WEATHERSTRIP, BACK DOOR, NO.2 | ||||
| 67882-0E030 |
ASU50,GSU5# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-0E080 |
ASU50,GSU5#..LIMD *TEM,T=5.0,DK.GRAY |
1 | ||
| 69478 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 69478-48010 |
ASU50,GSU5# |
2 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-AC010 |
ASU50,GSU5# |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-0E030 |
ASU50,GSU5#..LIMD |
1 | ||
| 75574B - MOULDING, BACK WINDOW, OUTSIDE LH | ||||
| 75574-0E010 |
ASU50,GSU5#..LIMD |
1 | ||
| Common parts | ||||
| 62735-0E030 | ||||
| 90080-11605 | ||||
| 90119-A0046 | ||||
| 90159-60608 | ||||
| 90179-06159 | ||||
| 90179-06341 | ||||
| 90541-12012 | ||||
| Linked diagrams | ||||
| 6709 | ||||
