ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

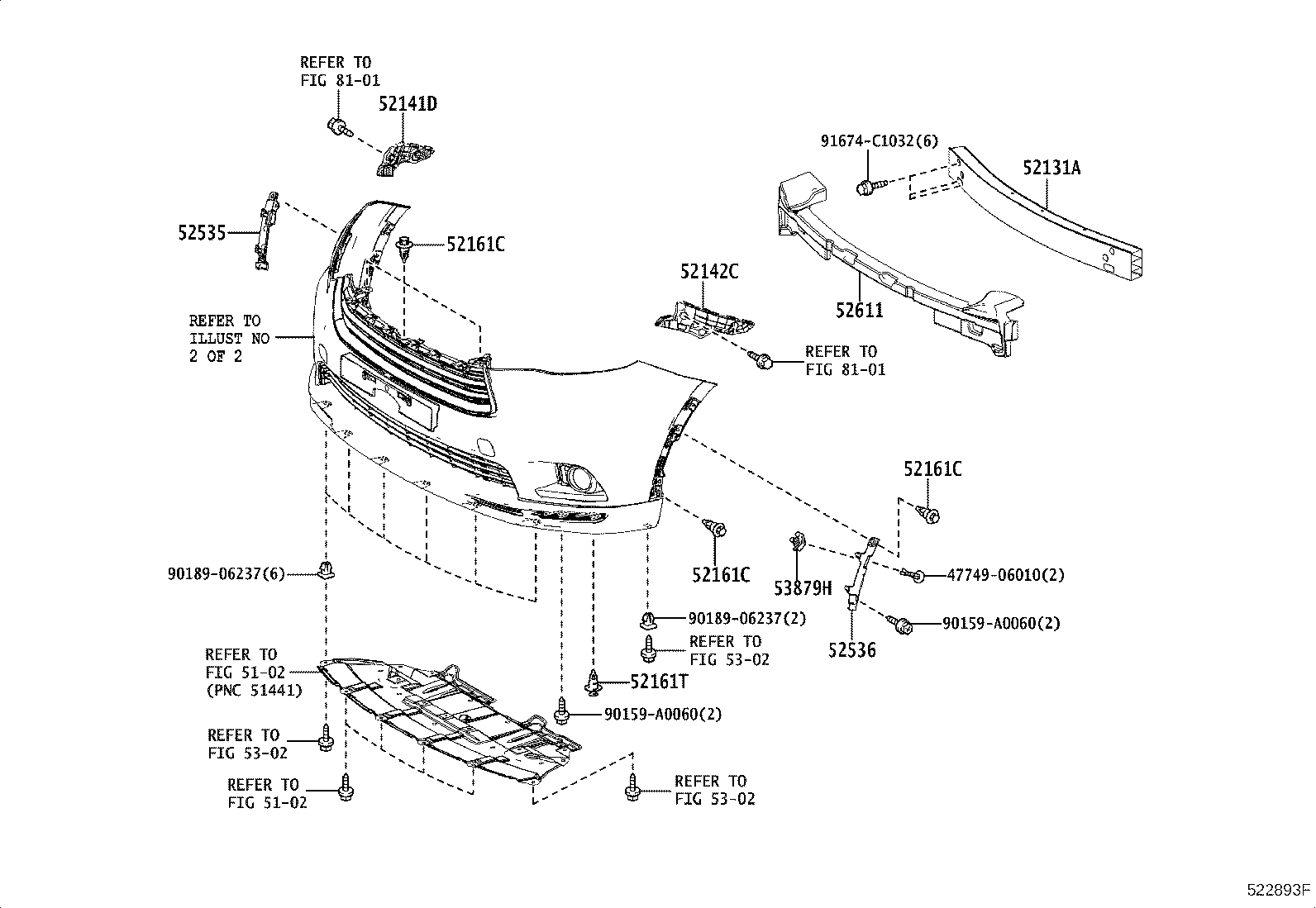

ILLUST NO. 1 OF 2(1312-1611)

Click highlighted areas on diagram

diagram 4774906010 5102 5102 52131A 52141D 52142C 52161C 52161C 52161C 52161T 52535 52536 52611 5302 5302 5302 53879H 8101 8101 90159A0060 90159A0060 9018906237 9018906237 91674C1032
Part # Description Qty Price
52131A - REINFORCEMENT, FRONT BUMPER
52131-0E090

ASU50,GSU5#

 1
52141D - STAY, FRONT BUMPER, RH
52145-0E060

ASU50,GSU5#

 1
52142C - STAY, FRONT BUMPER, LH
52146-0E060

ASU50,GSU5#

 1
52161C - PIECE, FRONT BUMPER
52161-02020

ASU50,GSU5#

 9
52161C - PIECE, FRONT BUMPER
52161-02020

ASU50,GSU5#

 9
52161C - PIECE, FRONT BUMPER
52161-02020

ASU50,GSU5#

 9
52161T - PIECE, FRONT BUMPER
52161-02020

ASU50,GSU5#

 4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0E050

ASU50,GSU5#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0E030

ASU50,GSU5#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-0E091

ASU50,GSU5#

 1
53879H - RETAINER, FRONT FENDER LINER
53879-50020

ASU50,GSU5#

 2
Common parts
47749-06010
90159-A0060
90189-06237
91674-C1032
Linked diagrams
5102
5302
8101

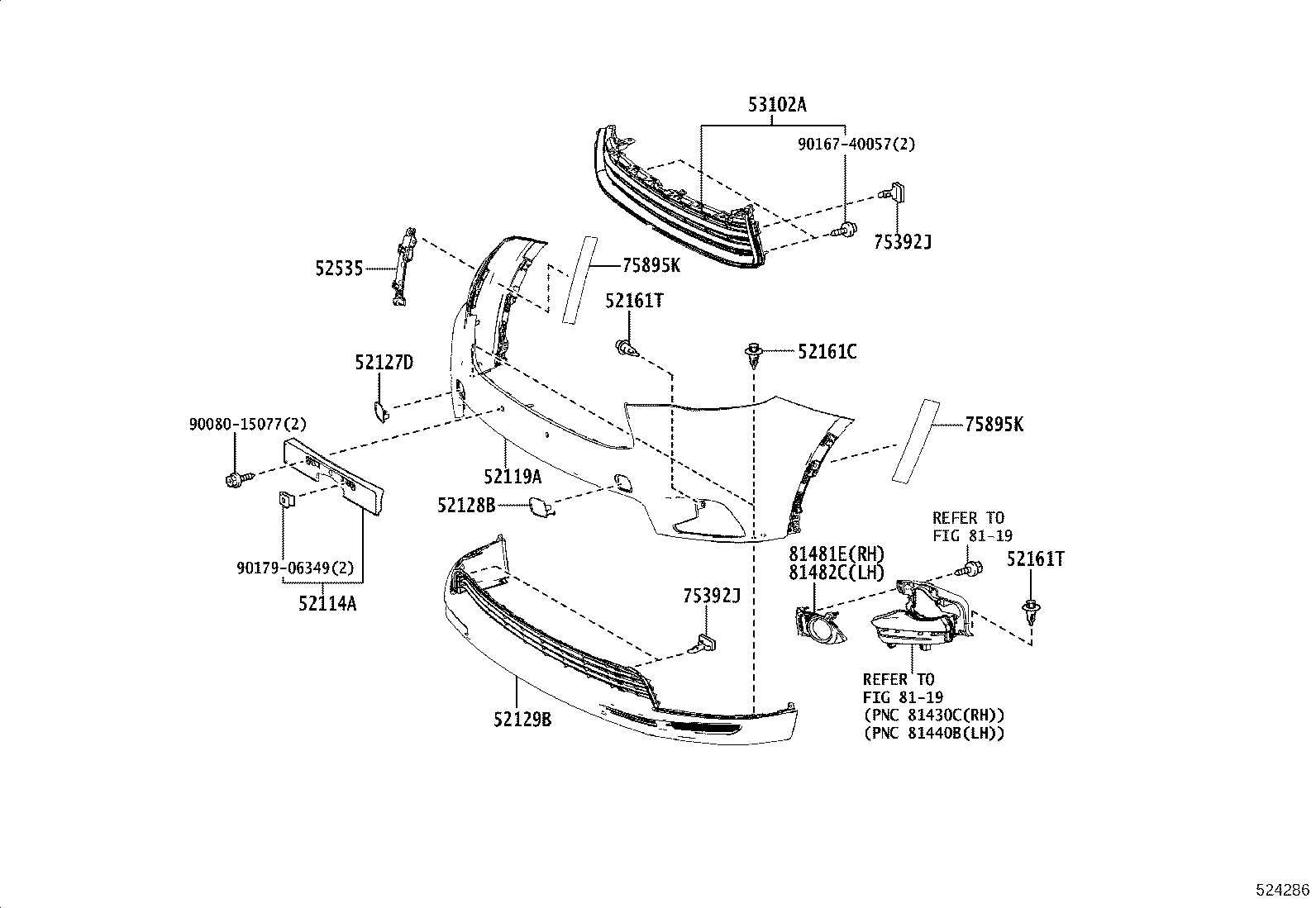

ILLUST NO. 2 OF 2(1312-1611)

Click highlighted areas on diagram

diagram 52114A 52119A 52127D 52128B 52129B 52161C 52161T 52161T 52535 53102A 75392J 75392J 75895K 75895K 8119 8119 81481E 81482C 9008015077 9016740057 9017906349
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-0E090

ASU50,GSU5#

 1
52119A - COVER, FRONT BUMPER
52119-0E924

ASU50,GSU55..LIMD..RUS

PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0E925

ASU50,GSU5#

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0E926

ASU50,GSU5#

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-0E010

ASU50,GSU5#

 1
52161C - PIECE, FRONT BUMPER
52161-02020

ASU50,GSU5#

 9
52161T - PIECE, FRONT BUMPER
52161-02020

ASU50,GSU5#

 4
52161T - PIECE, FRONT BUMPER
52161-02020

ASU50,GSU5#

 4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0E050

ASU50,GSU5#

 1
53102A - GRILLE SUB-ASSY, RADIATOR, LWR
53102-0E050

ASU50,GSU55..RUS

 1
75392J - RETAINER, OUTSIDE MOULDING
75392-35200

ASU50,GSU5#

 4
75392J - RETAINER, OUTSIDE MOULDING
75392-35200

ASU50,GSU5#

 4
75895K - TAPE, MOULDING, NO.1
75895-0E010

ASU50,GSU5#

 2
75895K - TAPE, MOULDING, NO.1
75895-0E010

ASU50,GSU5#

 2
81481E - COVER, FOG LAMP, RH
81481-0E160

ASU50,GSU5#

 1
81482C - COVER, FOG LAMP, LH
81482-0E160

ASU50,GSU5#

 1
Common parts
90080-15077
90167-40057
90179-06349
Linked diagrams
8119
