ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)

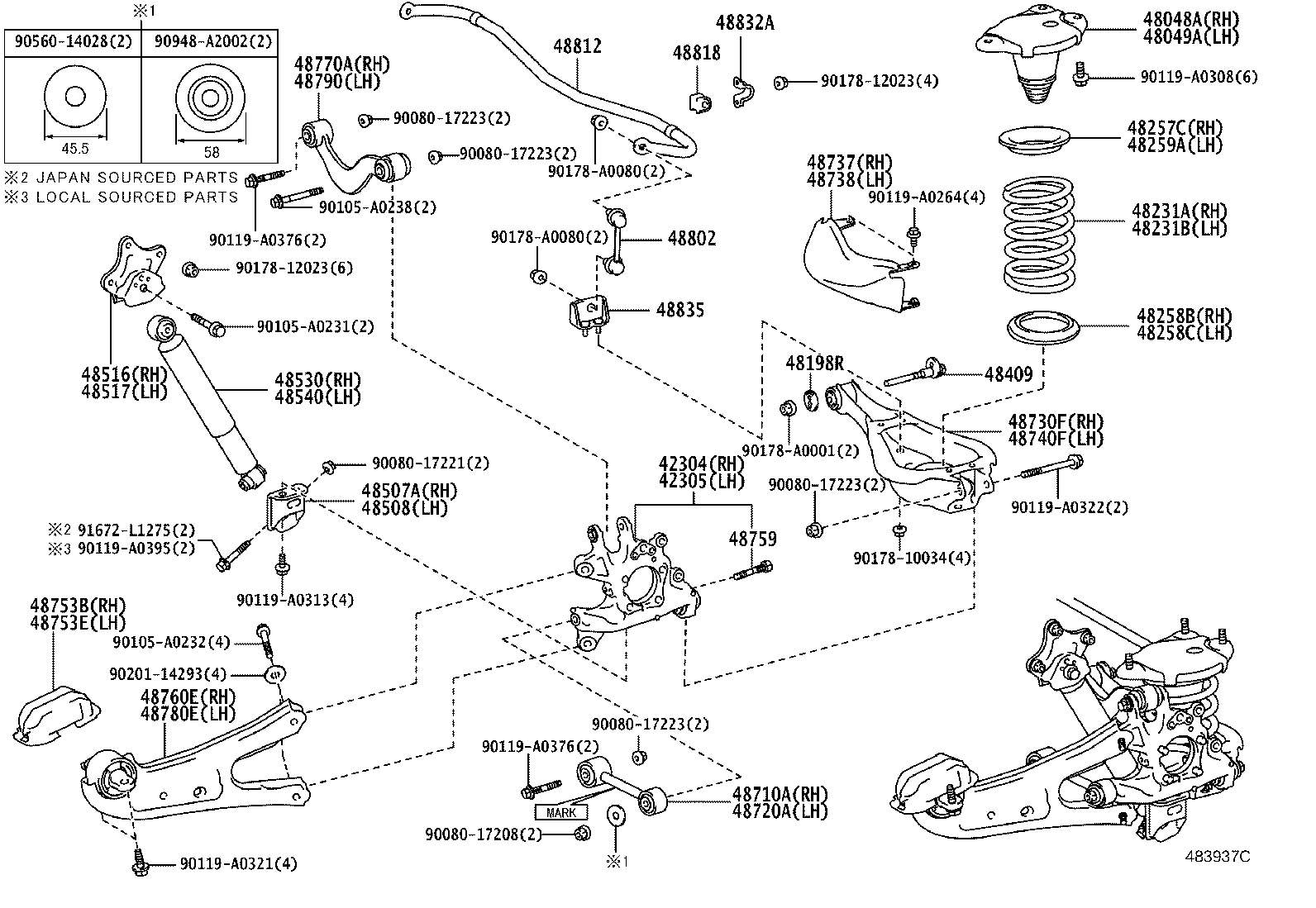

Click highlighted areas on diagram

diagram 42304 42305 48048A 48049A 48198R 48231A 48231B 48257C 48258B 48258C 48259A 48409 48507A 48508 48516 48517 48530 48540 48710A 48720A 48730F 48737 48738 48740F 48753B 48753E 48759 48760E 48770A 48780E 48790 48802 48812 48818 48832A 48835 9008017208 9008017221 9008017223 9008017223 9008017223 9008017223 90105A0231 90105A0232 90105A0238 90119A0264 90119A0308 90119A0313 90119A0321 90119A0322 90119A0376 90119A0376 90119A0395 9017810034 9017812023 9017812023 90178A0001 90178A0080 90178A0080 9020114293 9056014028 90948A2002 91672L1275
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-0E020

ASU50,GSU5#

 1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-0E020

ASU50,GSU5#

 1
48048A - SEAT SUB-ASSY, SPRING, RH
48048-0E011

ASU50,GSU5#

 1
48049A - SEAT SUB-ASSY, SPRING, LH
48049-0E011

ASU50,GSU5#

 1
48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48198-48010

ASU50,GSU5#

 2
48231A - SPRING, COIL, REAR RH
48231-0E180

ASU50

 1
48231B - SPRING, COIL, REAR LH
48231-0E180

ASU50

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-0E020

ASU50,GSU5#

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-0E050

ASU50,GSU5#

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-0E050

ASU50,GSU5#

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-0E020

ASU50,GSU5#

 1
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-0E020

ASU50,GSU5#

 2
48507A - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH
48507-0E010

ASU50,GSU5#

 1
48508 - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH
48508-0E010

ASU50,GSU5#

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48516-0E010

ASU50,GSU5#

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48517-0E010

ASU50,GSU5#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-0E090

ASU50

MARK 48531-0E090

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-0E090

ASU50

MARK 48531-0E090

 1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-0E030

ASU50,GSU5#

NO MARK

 1
48710-0E060

ASU50,GSU5#

MARK=48710-0E060

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-0E060

ASU50,GSU5#

MARK=48710-0E060

 1
48710-0E030

ASU50,GSU5#

NO MARK

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-0E050

ASU50,GSU5#

 1
48737 - COVER, REAR SUSPENSION ARM, RH
48737-0E010

ASU50,GSU5#

 1
48738 - COVER, REAR SUSPENSION ARM, LH
48738-0E010

ASU50,GSU5#

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48730-0E050

ASU50,GSU5#

 1
48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753-0E010

ASU50,GSU5#

 1
48753E - COVER, REAR SUSPENSION SUPOPORT, NO.2 LH
48753-0E010

ASU50,GSU5#

 1
48759 - PIN, LOWER CONTROL ARM
48759-48010

ASU50,GSU5#

 1
48760E - ARM ASSY, TRAILING, REAR RH
48760-0E050

ASU50,GSU5#

 1
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48770-48010

ASU50,GSU5#

 1
48780E - ARM ASSY, TRAILING, REAR LH
48780-0E060

ASU50,GSU5#

 1
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48770-48010

ASU50,GSU5#

 1
48802 - LINK SUB-ASSY, STABILIZER
48802-0E010

ASU50,GSU5#

RH

 1
48803-0E010

ASU50,GSU5#

LH

 1
48812 - BAR, STABILIZER, REAR
48812-0E070

ASU50,GSU5#

 1
48818 - BUSH, STABILIZER, REAR
48818-0E020

ASU50,GSU5#

 2
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-0E070

ASU50,GSU5#

 2
48835 - BRACKET, REAR STABILIZER, LOWER
48835-0E010

ASU50,GSU5#

LH

 1
Common parts
90080-17208
90080-17221
90080-17223
90105-A0231
90105-A0232
90105-A0238
90119-A0264
90119-A0308
90119-A0313
90119-A0321
90119-A0322
90119-A0376
90119-A0395
90178-10034
90178-12023
90178-A0001
90178-A0080
90201-14293
90560-14028
90948-A2002
91672-L1275
