ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

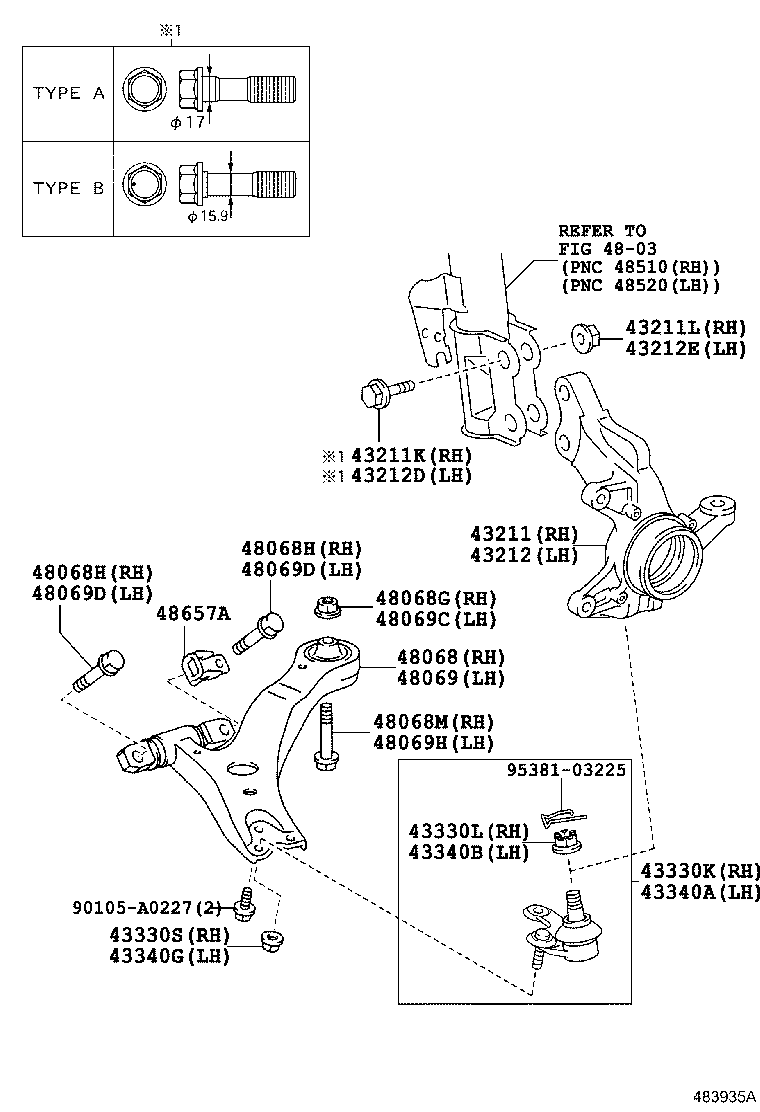

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330S 43340A 43340B 43340G 4803 48068 48068G 48068H 48068H 48068M 48069 48069C 48069D 48069D 48069H 48657A 90105A0227 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-0E010

GSU55..ARL;ASU50,GSU50

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17013

ASU50,GSU5#

OD=15.9,TYPE B:REFER ILLUST.

 2
90105-A0052

ASU50,GSU5#

OD=17,TYPE A:REFER ILLUST.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-A0027

ASU50,GSU5#

 2
43212 - KNUCKLE, STEERING, LH
43212-0E010

ASU50,GSU5#

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17013

ASU50,GSU5#

OD=15.9,TYPE B:REFER ILLUST.

 2
90105-A0052

ASU50,GSU5#

OD=17,TYPE A:REFER ILLUST.

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-A0027

ASU50,GSU5#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09780

ASU50,GSU5#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90080-17214

ASU50,GSU5#

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-A0094

ASU50,GSU5#

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-09140

ASU50,GSU5#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90080-17214

ASU50,GSU5#

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-A0094

ASU50,GSU5#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-0E060

ASU50,GSU5#

 1
48068-0T011

ASU50,GSU5#

 1
48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90080-17223

ASU50,GSU5#

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90080-10376

ASU50,GSU5#

 2
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90080-10376

ASU50,GSU5#

 2
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-A0259

ASU50,GSU5#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-0T011

ASU50,GSU5#

 1
48069-0E060

ASU50,GSU5#

 1
48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90080-17223

ASU50,GSU5#

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90080-10376

ASU50,GSU5#

 2
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90080-10376

ASU50,GSU5#

 2
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-A0259

ASU50,GSU5#

 1
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-06010

ASU50,GSU5#

 2
Common parts
90105-A0227
95381-03225
Linked diagrams
4803
