ASU50L-ARTGKX (2013)
Toyota Highlander/Kluger
Production
Dec 2013
-
Nov 2016
Engine
1ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

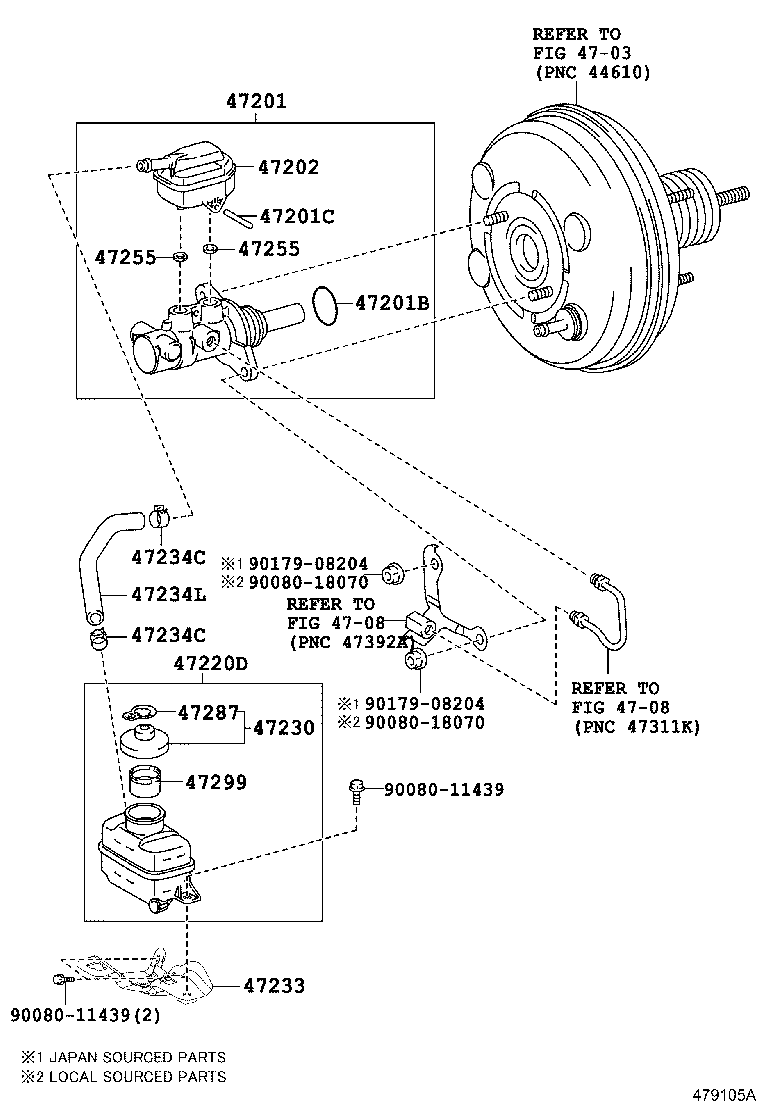

(1312-1412)RUS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-48202 |
ASU50,GSU5# |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
ASU50,GSU5# |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15803 |
ASU50,GSU5# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-48200 |
ASU50,GSU5# |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-0E080 |
ASU50,GSU5# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-02271 |
ASU50,GSU5# |
1 | ||
| 47230-02270 |
ASU50,GSU5# |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-0E040 |
ASU50,GSU55..RUS |
1 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90466-A0013 |
ASU50,GSU5# |
2 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90466-A0013 |
ASU50,GSU5# |
2 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-48210 |
ASU50,GSU55..RUS |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90029-48001 |
ASU50,GSU5# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90029-48001 |
ASU50,GSU5# |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
ASU50,GSU5# |
1 | ||
| 47287-02360 |
ASU50,GSU5# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
ASU50,GSU5# |
1 | ||
| Common parts | ||||
| 90080-11439 | ||||
| 90080-18070 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 4708 | ||||

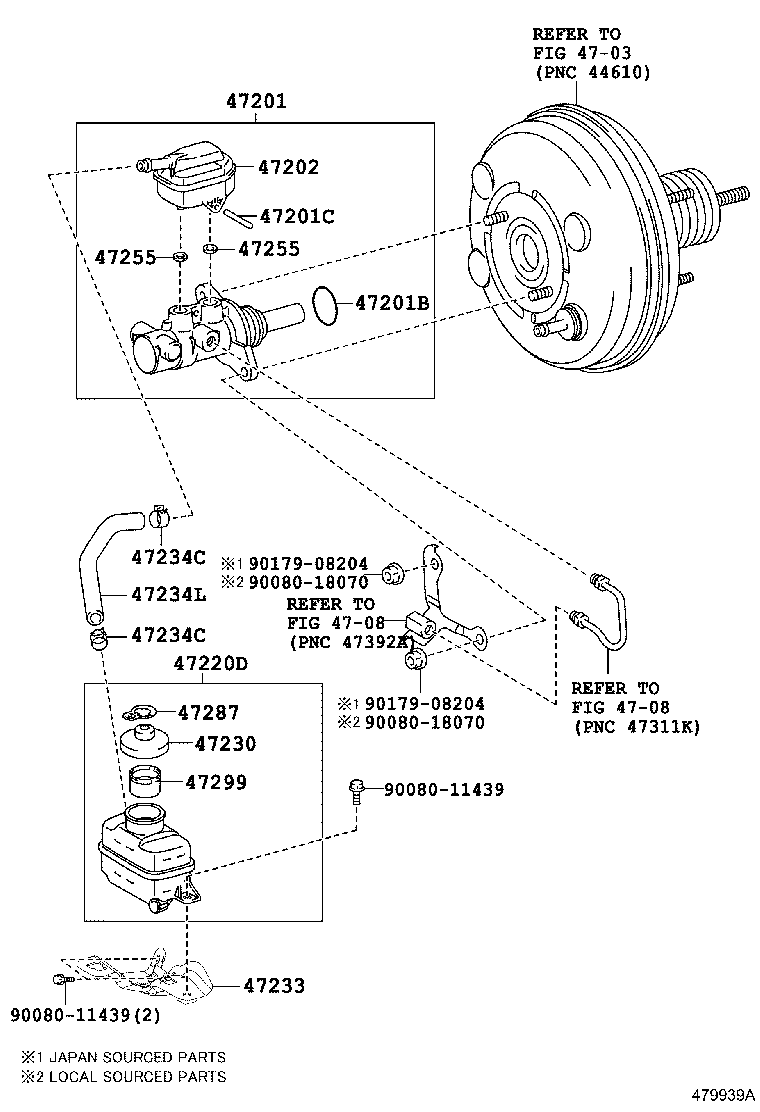

(1412- )RUS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-48202 |
ASU50,GSU5# |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
ASU50,GSU5# |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15803 |
ASU50,GSU5# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-48200 |
ASU50,GSU5# |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-0E080 |
ASU50,GSU5# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-02271 |
ASU50,GSU5# |
1 | ||
| 47230-02270 |
ASU50,GSU5# |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-0E040 |
ASU50,GSU55..RUS |
1 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90466-A0013 |
ASU50,GSU5# |
2 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90466-A0013 |
ASU50,GSU5# |
2 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-48210 |
ASU50,GSU55..RUS |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90029-48001 |
ASU50,GSU5# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90029-48001 |
ASU50,GSU5# |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
ASU50,GSU5# |
1 | ||
| 47287-02360 |
ASU50,GSU5# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
ASU50,GSU5# |
1 | ||
| Common parts | ||||
| 90080-11439 | ||||
| 90080-18070 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 4708 | ||||
