ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1312- )

Click highlighted areas on diagram

diagram 46503 46504 46540 46550 46550A 46550C 46550E 46550G 46550H 46580 46590 46612 47405A 47406A 47447C 47447D 47447D 47449A 47449A 47456A 47459B 47611 47612 47613D 90178A0013
Part # Description Qty Price
46503 - PLATE SUB-ASSY, PARKING BRAKE, RH
46503-0E020

ASU50,GSU5#

 1
46504 - PLATE SUB-ASSY, PARKING BRAKE, LH
46504-0E020

ASU50,GSU5#

 1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-0E020

ASU50,GSU5#

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-0E020

ASU50,GSU5#

 1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90016-DY008

ASU50,GSU5#

 2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-07018

ASU50,GSU5#

 2
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90016-DY009

ASU50,GSU5#

 2
46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
90905-A6001

ASU50,GSU5#

 2
46550H - SHIM(FOR PARKING BRAKE SHOE)
90564-09184

ASU50,GSU5#

T=0.3

 1
90564-09185

ASU50,GSU5#

T=0.6

 1
90564-09186

ASU50,GSU5#

T=0.9

 1
46580 - SHOE ASSY, PARKING BRAKE, LH NO.1
46540-0E020

ASU50,GSU5#

 1
46590 - SHOE ASSY, PARKING BRAKE, LH NO.2
46590-0E020

ASU50,GSU5#

 1
46612 - STRUT, PARKING BRAKE SHOE LEVER
46612-0E020

ASU50,GSU5#

 2
47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
46605-0E020

ASU50,GSU5#

 1
47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
46606-0E020

ASU50,GSU5#

 1
47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE)
47447-11010

ASU50,GSU5#

 4
47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
90501-A0002

ASU50,GSU5#

 4
47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
90501-A0002

ASU50,GSU5#

 4
47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449-30030

ASU50,GSU5#

 4
47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449-30030

ASU50,GSU5#

 4
47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47456-35010

ASU50,GSU5#

 2
47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47459-30010

ASU50,GSU5#

 2
47611 - LEVER, PARKING BRAKE SHOE, RH
46611-48040

ASU50,GSU5#

 1
47612 - LEVER, PARKING BRAKE SHOE, LH
46621-48040

ASU50,GSU5#

 1
47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90501-A0004

ASU50,GSU5#

 2
Common parts
90178-A0013

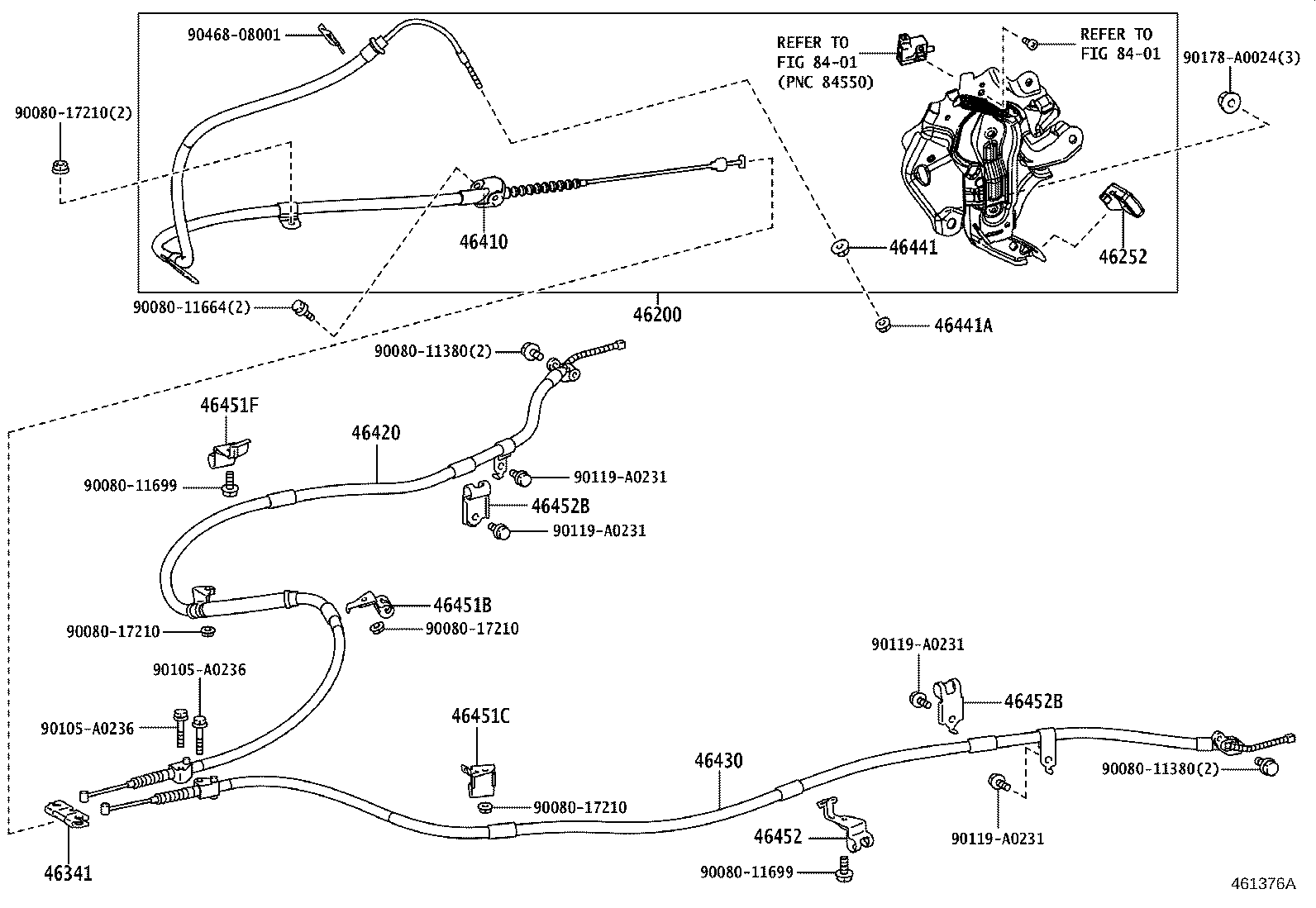

ILLUST NO. 1 OF 2(1312- )RUS

Click highlighted areas on diagram

diagram 46200 46252 46341 46410 46420 46430 46441 46441A 46451B 46451C 46451F 46452 46452B 46452B 8401 8401 9008011380 9008011380 9008011664 9008011699 9008011699 9008017210 9008017210 9008017210 9008017210 90105A0236 90105A0236 90119A0231 90119A0231 90119A0231 90119A0231 90178A0024 9046808001
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-0E050

ASU50,GSU55..RUS

 1
46252 - PAD, PARKING PEDAL
46252-22010

ASU50,GSU5#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-48010

ASU50,GSU5#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-0E060

ASU50,GSU55..RUS

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0E060

ASU50,GSU5#

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0E060

ASU50,GSU5#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

ASU50,GSU5#

 1
46441A - NUT, WIRE ADJUSTING, NO.2
90178-A0023

ASU50,GSU5#

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-0E021

ASU50,GSU5#

 1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-0E030

ASU50,GSU5#

 1
46451F - BRACKET, CABLE SUPPORT
46451-0E100

ASU50,GSU5#

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46451-0E050

ASU50,GSU5#

 1
46452B - BRACKET, CABLE SUPPORT, NO.2
46451-0E060

ASU50,GSU5#

 2
46452B - BRACKET, CABLE SUPPORT, NO.2
46451-0E060

ASU50,GSU5#

 2
Common parts
90080-11380
90080-11664
90080-11699
90080-17210
90105-A0236
90119-A0231
90178-A0024
90468-08001
Linked diagrams
8401
