ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

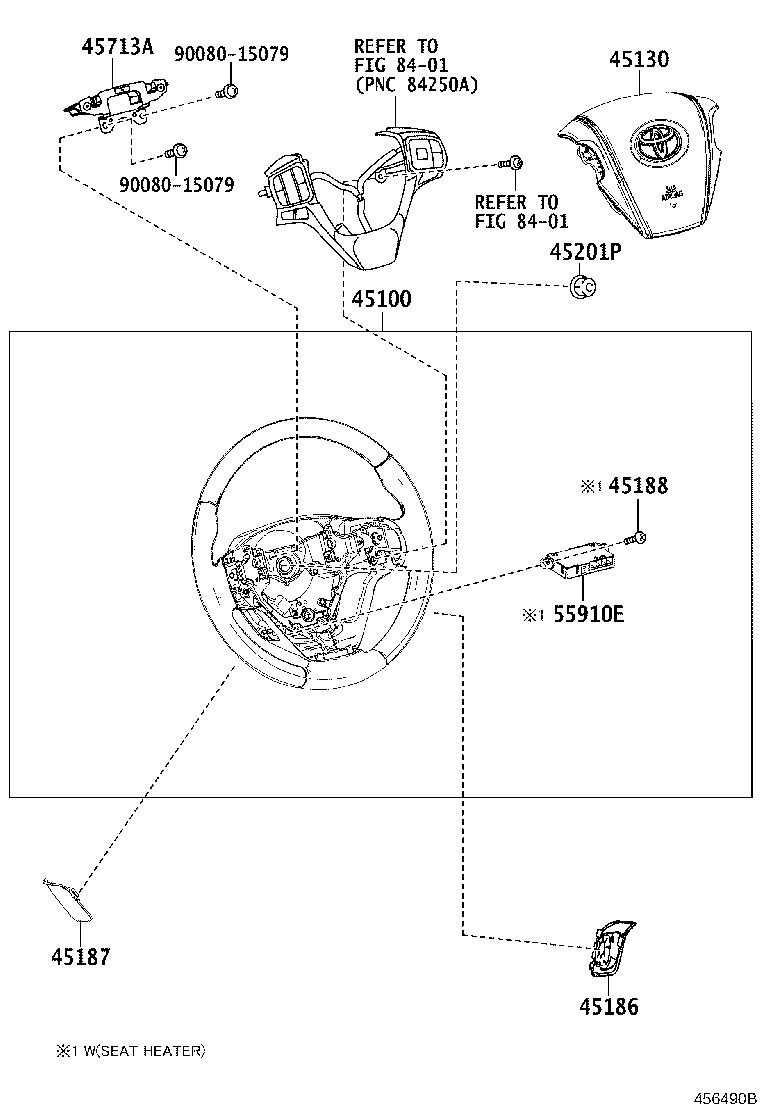

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45186 45187 45188 45201P 45713A 55910E 8401 8401 9008015079 9008015079
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0E371C0

ASU50,GSU55..LIMD..RUS

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

 1
45100-0E372C0

ASU50,GSU55..LIMD..RUS

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

 1
45130 - BUTTON ASSY, HORN
45130-0E090C0

ASU50;GSU5#..LIMD;GSU55..LE..RUS

BLACK,TRIM0#,2#

 1
45130-0E071C0

ASU50;GSU5#..LIMD;GSU55..LE..RUS

BLACK,TRIM0#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0E060C0

ASU50;GSU5#..LIMD;GSU55..LE..RUS

BLACK,TRIM0#,2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-0E050C0

ASU50;GSU5#..LIMD;GSU55..LE..RUS

BLACK,TRIM0#,2#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90080-16108

ASU50,GSU55..LIMD..RUS

L=16.5

 2
45201P - NUT, STEERING WHEEL SET
90080-17234

ASU50,GSU5#

 1
55910E - CONTROL ASSY, STEERING WHEEL HEATER
55910-53011

ASU50,GSU55..LIMD..RUS

 1
55910-53010

ASU50,GSU55..LIMD..RUS

 1
Common parts
90080-15079
Linked diagrams
8401
