ASU50L-ARTGKX (2013)
Toyota Highlander/Kluger
Production
Dec 2013
-
Nov 2016
Engine
1ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

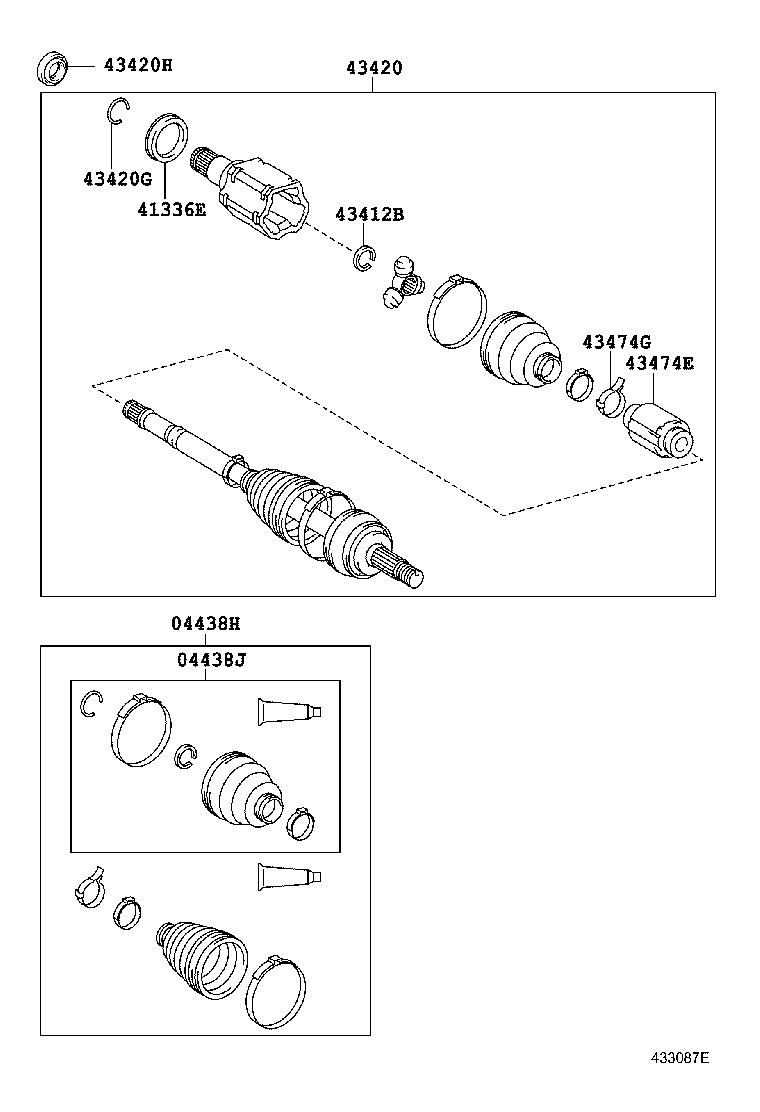

ILLUST NO. 2 OF 2(1312-1407)GSU5# ; (1312- )ASU50
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04427-06510 |
ASU50 |
1 | ||
| 04427-06570 |
ASU50 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-06280 |
ASU50 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-06060 |
ASU50,GSU5# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-08040 |
ASU50,GSU5# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-0T031 |
ASU50 |
1 | ||
| 43420-0T030 |
ASU50 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52017 |
ASU50,GSU5# |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-A0021 |
ASU50 AISIN AW |
1 | ||
| 90311-50045 |
ASU50 TMMWV |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-06310 |
ASU50 |
1 | ||
| 43474-06090 |
ASU50 |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-06100 |
ASU50 |
1 | ||
| 42345-06790 |
ASU50 |
2 | ||

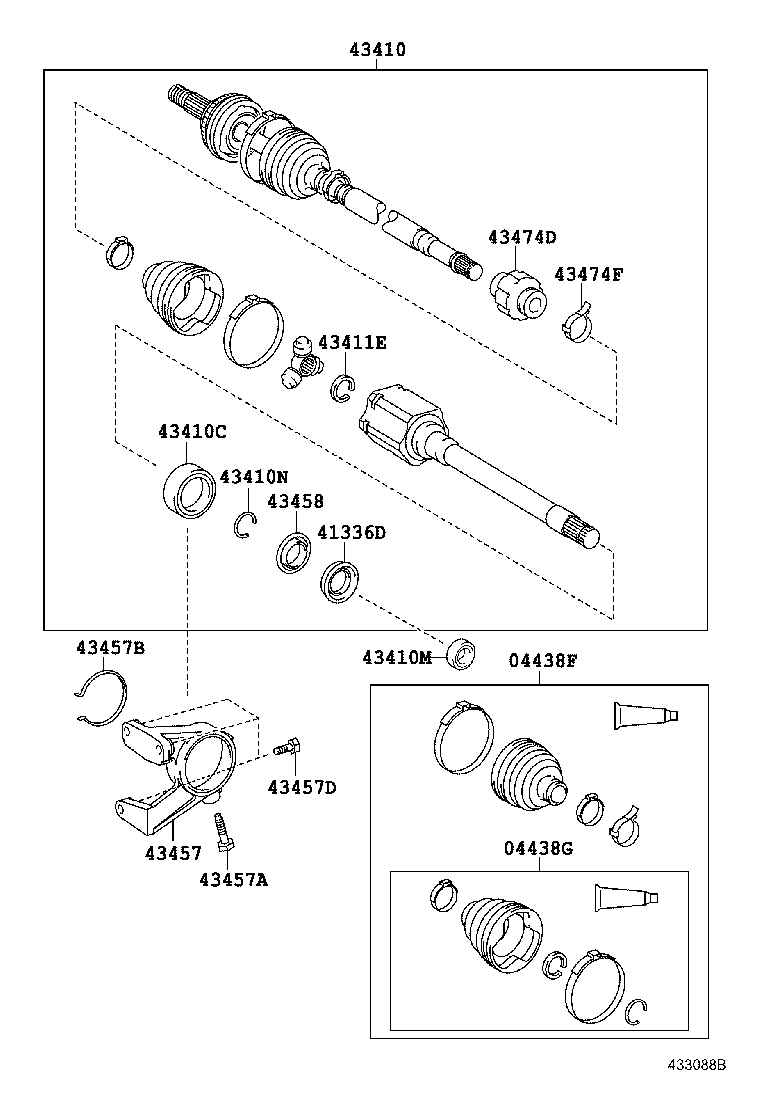

ILLUST NO. 1 OF 2(1312- )ASU50
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-06500 |
ASU50 |
1 | ||
| 04427-06550 |
ASU50 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-06270 |
ASU50 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-06020 |
ASU50,GSU50 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-0T060 |
ASU50 |
1 | ||
| 43410-0T061 |
ASU50 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90080-36133 |
ASU50,GSU50 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-A0029 |
ASU50 (J) |
1 | ||
| 90311-A0012 |
ASU50 |
1 | ||
| 90311-A0012 |
ASU50 (L) |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52013 |
ASU50,GSU50 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-08040 |
ASU50,GSU5# |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-0T010 |
ASU50 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
ASU50,GSU50 *10-1.25PX19.8-8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
ASU50,GSU50 |
1 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90080-10087 |
ASU50 |
3 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-06020 |
ASU50,GSU50 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-06300 |
ASU50 |
1 | ||
| 43474-0W030 |
ASU50 |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-06100 |
ASU50 |
1 | ||
| 42345-06790 |
ASU50 |
2 | ||
