ASU50L-ARTGKX (2013)
Toyota Highlander/Kluger
(1312- )ASU50
U760E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-0R010 |
ASU50 |
1 | ||
| 35105-0R011 |
ASU50 |
1 | ||
| 35174 - SEPARATOR, TRANSAXLE HOUSING OIL | ||||
| 35174-73010 |
ASU50 |
1 | ||
| 35783R - GEAR, COUNTER DRIVEN | ||||
| 35705-0T010 |
ASU50 |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-33080 |
ASU50 |
1 | ||
| 41039-28020 |
ASU50 |
1 | ||
| 41211J - BEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION | ||||
| 90366-A0050 |
ASU50 |
1 | ||
| 41211K - BEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION | ||||
| 90366-A0047 |
ASU50 |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-A0221 |
ASU50 T=2.050 |
1 | ||
| 90564-A0220 |
ASU50 T=2.025 |
1 | ||
| 90564-A0219 |
ASU50 T=2.000 |
1 | ||
| 90564-A0222 |
ASU50 T=2.075 |
1 | ||
| 90564-A0224 |
ASU50 T=2.125 |
1 | ||
| 90564-A0227 |
ASU50 T=2.200 |
1 | ||
| 90564-A0228 |
ASU50 T=2.225 |
1 | ||
| 90564-A0234 |
ASU50 T=2.375 |
1 | ||
| 90564-A0226 |
ASU50 T=2.175 |
1 | ||
| 90564-A0232 |
ASU50 T=2.325 |
1 | ||
| 90564-A0223 |
ASU50 T=2.100 |
1 | ||
| 90564-A0230 |
ASU50 T=2.275 |
1 | ||
| 90564-A0229 |
ASU50 T=2.250 |
1 | ||
| 90564-A0235 |
ASU50 T=2.400 |
1 | ||
| 90564-A0225 |
ASU50 T=2.150 |
1 | ||
| 90564-A0231 |
ASU50 T=2.300 |
1 | ||
| 90564-A0233 |
ASU50 T=2.350 |
1 | ||
| 90564-A0242 |
ASU50 T=2.575 |
1 | ||
| 90564-A0236 |
ASU50 T=2.425 |
1 | ||
| 90564-A0238 |
ASU50 T=2.475 |
1 | ||
| 90564-A0244 |
ASU50 T=2.625 |
1 | ||
| 90564-A0239 |
ASU50 T=2.500 |
1 | ||
| 90564-A0241 |
ASU50 T=2.550 |
1 | ||
| 90564-A0246 |
ASU50 T=2.675 |
1 | ||
| 90564-A0243 |
ASU50 T=2.600 |
1 | ||
| 90564-A0254 |
ASU50 T=2.875 |
1 | ||
| 90564-A0237 |
ASU50 T=2.450 |
1 | ||
| 90564-A0247 |
ASU50 T=2.700 |
1 | ||
| 90564-A0251 |
ASU50 T=2.800 |
1 | ||
| 90564-A0256 |
ASU50 T=2.925 |
1 | ||
| 90564-A0258 |
ASU50 T=2.975 |
1 | ||
| 90564-A0245 |
ASU50 T=2.650 |
1 | ||
| 90564-A0248 |
ASU50 T=2.725 |
1 | ||
| 90564-A0249 |
ASU50 T=2.750 |
1 | ||
| 90564-A0259 |
ASU50 T=3.000 |
1 | ||
| 90564-A0253 |
ASU50 T=2.850 |
1 | ||
| 90564-A0252 |
ASU50 T=2.825 |
1 | ||
| 90564-A0255 |
ASU50 T=2.900 |
1 | ||
| 90564-A0240 |
ASU50 T=2.525 |
1 | ||
| 90564-A0250 |
ASU50 T=2.775 |
1 | ||
| 90564-A0257 |
ASU50 T=2.950 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-0T010 |
ASU50 |
1 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90080-10239 |
ASU50 |
12 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-0R010 |
ASU50 |
1 | ||
| 41301-0R011 |
ASU50 |
1 | ||
| 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-A0266 |
ASU50 T=2.150 |
1 | ||
| 90564-A0262 |
ASU50 T=2.050 |
1 | ||
| 90564-A0264 |
ASU50 T=2.100 |
1 | ||
| 90564-A0263 |
ASU50 T=2.075 |
1 | ||
| 90564-A0265 |
ASU50 T=2.125 |
1 | ||
| 90564-A0260 |
ASU50 T=2.000 |
1 | ||
| 90564-A0268 |
ASU50 T=2.200 |
1 | ||
| 90564-A0270 |
ASU50 T=2.250 |
1 | ||
| 90564-A0267 |
ASU50 T=2.175 |
1 | ||
| 90564-A0277 |
ASU50 T=2.425 |
1 | ||
| 90564-A0274 |
ASU50 T=2.350 |
1 | ||
| 90564-A0271 |
ASU50 T=2.275 |
1 | ||
| 90564-A0275 |
ASU50 T=2.375 |
1 | ||
| 90564-A0276 |
ASU50 T=2.400 |
1 | ||
| 90564-A0279 |
ASU50 T=2.475 |
1 | ||
| 90564-A0273 |
ASU50 T=2.325 |
1 | ||
| 90564-A0280 |
ASU50 T=2.500 |
1 | ||
| 90564-A0261 |
ASU50 T=2.025 |
1 | ||
| 90564-A0281 |
ASU50 T=2.525 |
1 | ||
| 90564-A0283 |
ASU50 T=2.575 |
1 | ||
| 90564-A0282 |
ASU50 T=2.550 |
1 | ||
| 90564-A0269 |
ASU50 T=2.225 |
1 | ||
| 90564-A0288 |
ASU50 T=2.700 |
1 | ||
| 90564-A0284 |
ASU50 T=2.600 |
1 | ||
| 90564-A0272 |
ASU50 T=2.300 |
1 | ||
| 90564-A0294 |
ASU50 T=2.850 |
1 | ||
| 90564-A0278 |
ASU50 T=2.450 |
1 | ||
| 90564-A0286 |
ASU50 T=2.650 |
1 | ||
| 90564-A0285 |
ASU50 T=2.625 |
1 | ||
| 90564-A0293 |
ASU50 T=2.825 |
1 | ||
| 90564-A0291 |
ASU50 T=2.775 |
1 | ||
| 90564-A0292 |
ASU50 T=2.800 |
1 | ||
| 90564-A0290 |
ASU50 T=2.750 |
1 | ||
| 90564-A0295 |
ASU50 T=2.875 |
1 | ||
| 90564-A0287 |
ASU50 T=2.675 |
1 | ||
| 90564-A0289 |
ASU50 T=2.725 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-A0056 |
ASU50 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-55071 |
ASU50 |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ASU50,GSU5# |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-73010 |
ASU50 |
1 | ||
| 41342-73011 |
ASU50 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-73010 |
ASU50 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-73010 |
ASU50 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-73090 |
ASU50 T=2.10 |
2 | ||
| 41361-73070 |
ASU50 T=1.90 |
2 | ||
| 41361-73080 |
ASU50 T=2.00 |
2 | ||
| 41361-73050 |
ASU50 T=0.90 |
2 | ||
| 41361-73020 |
ASU50 T=1.10 |
2 | ||
| 41361-73100 |
ASU50 T=2.20 |
2 | ||
| 41361-73020 |
ASU50 T=1.10 |
2 | ||
| 41361-73030 |
ASU50 T=1.20 |
2 | ||
| 41361-73010 |
ASU50 T=1.00 |
2 | ||
| 41361-73030 |
ASU50 T=1.20 |
2 | ||
| 41361-0R030 |
ASU50 T=1.20 |
2 | ||
| 41361-0R040 |
ASU50 T=0.90 |
2 | ||
| 41361-73010 |
ASU50 T=1.00 |
2 | ||
| 41361-0R010 |
ASU50 T=1.00 |
2 | ||
| 41361-73050 |
ASU50 T=0.90 |
2 | ||
| 41361-0R020 |
ASU50 T=1.10 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-73090 |
ASU50 T=2.10 |
2 | ||
| 41361-73070 |
ASU50 T=1.90 |
2 | ||
| 41361-73080 |
ASU50 T=2.00 |
2 | ||
| 41361-73050 |
ASU50 T=0.90 |
2 | ||
| 41361-73020 |
ASU50 T=1.10 |
2 | ||
| 41361-73100 |
ASU50 T=2.20 |
2 | ||
| 41361-73020 |
ASU50 T=1.10 |
2 | ||
| 41361-73030 |
ASU50 T=1.20 |
2 | ||
| 41361-73010 |
ASU50 T=1.00 |
2 | ||
| 41361-73030 |
ASU50 T=1.20 |
2 | ||
| 41361-0R030 |
ASU50 T=1.20 |
2 | ||
| 41361-0R040 |
ASU50 T=0.90 |
2 | ||
| 41361-73010 |
ASU50 T=1.00 |
2 | ||
| 41361-0R010 |
ASU50 T=1.00 |
2 | ||
| 41361-73050 |
ASU50 T=0.90 |
2 | ||
| 41361-0R020 |
ASU50 T=1.10 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-40003 |
ASU50 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-40003 |
ASU50 |
2 | ||
| Common parts | ||||
| 90105-A0228 | ||||
| 91551-80816 | ||||

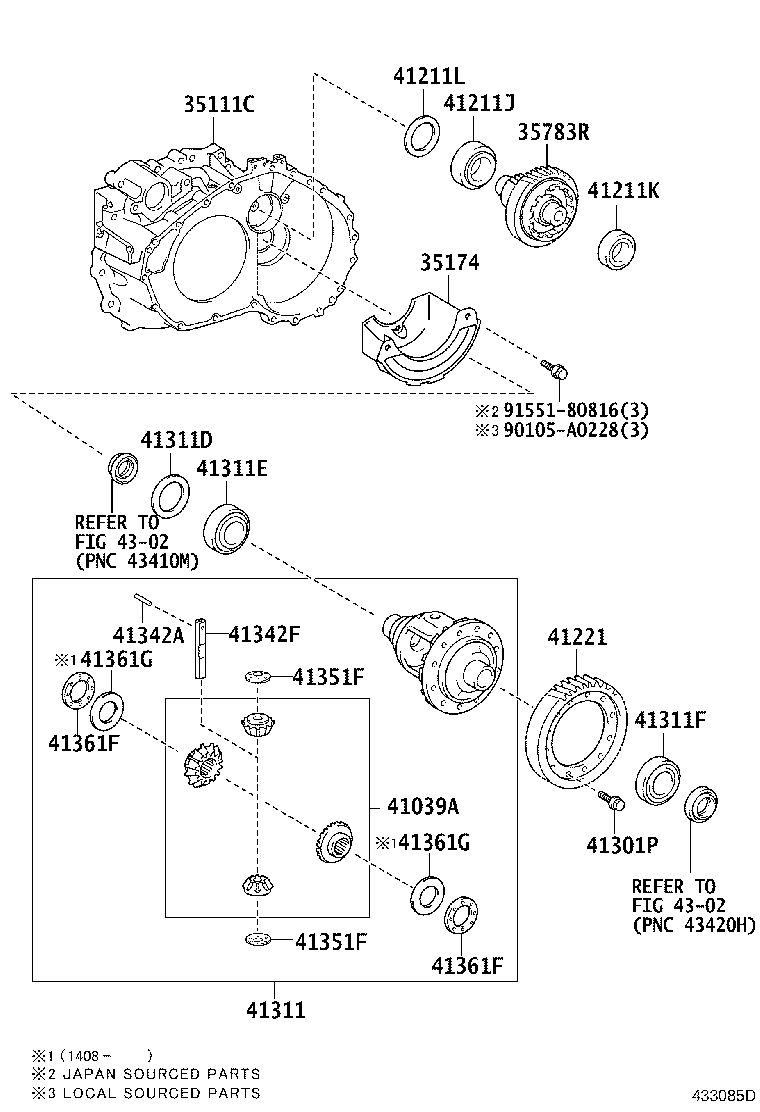

| Linked diagrams | ||||
| 4302 | ||||
