ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

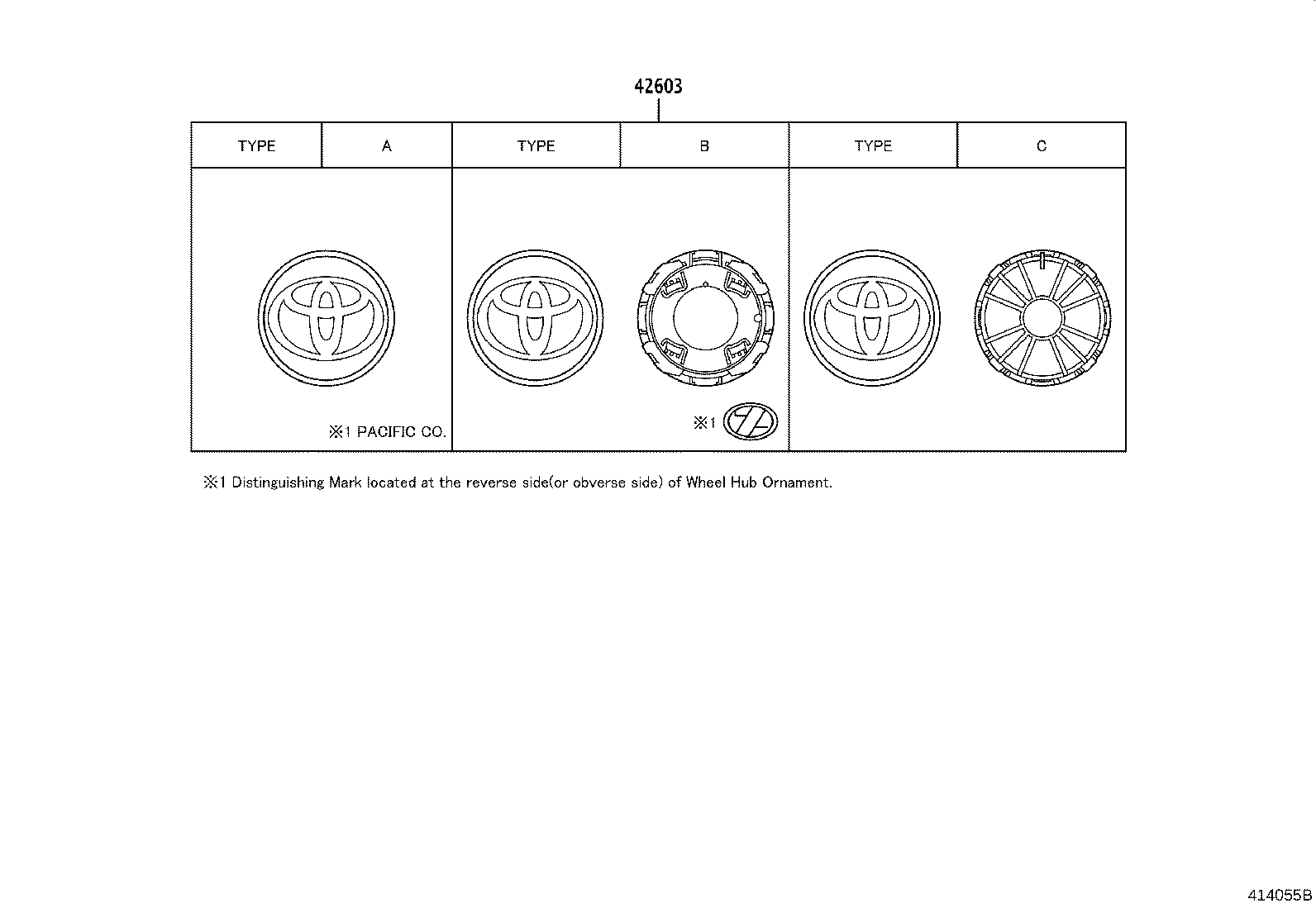

ILLUST NO. 2 OF 2(1312- )

Click highlighted areas on diagram

diagram 42603
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-06150

ASU50,GSU5#

*ALU,TYPE B:REFER ILLUST.

 4
42603-48130

ASU50;GSU5#..LIMD;GSU55..LE..RUS

*ALU,TYPE A:REFER ILLUST.

 4
42603-06160

ASU50,GSU5#

*ALU,TYPE A:REFER ILLUST.

 4

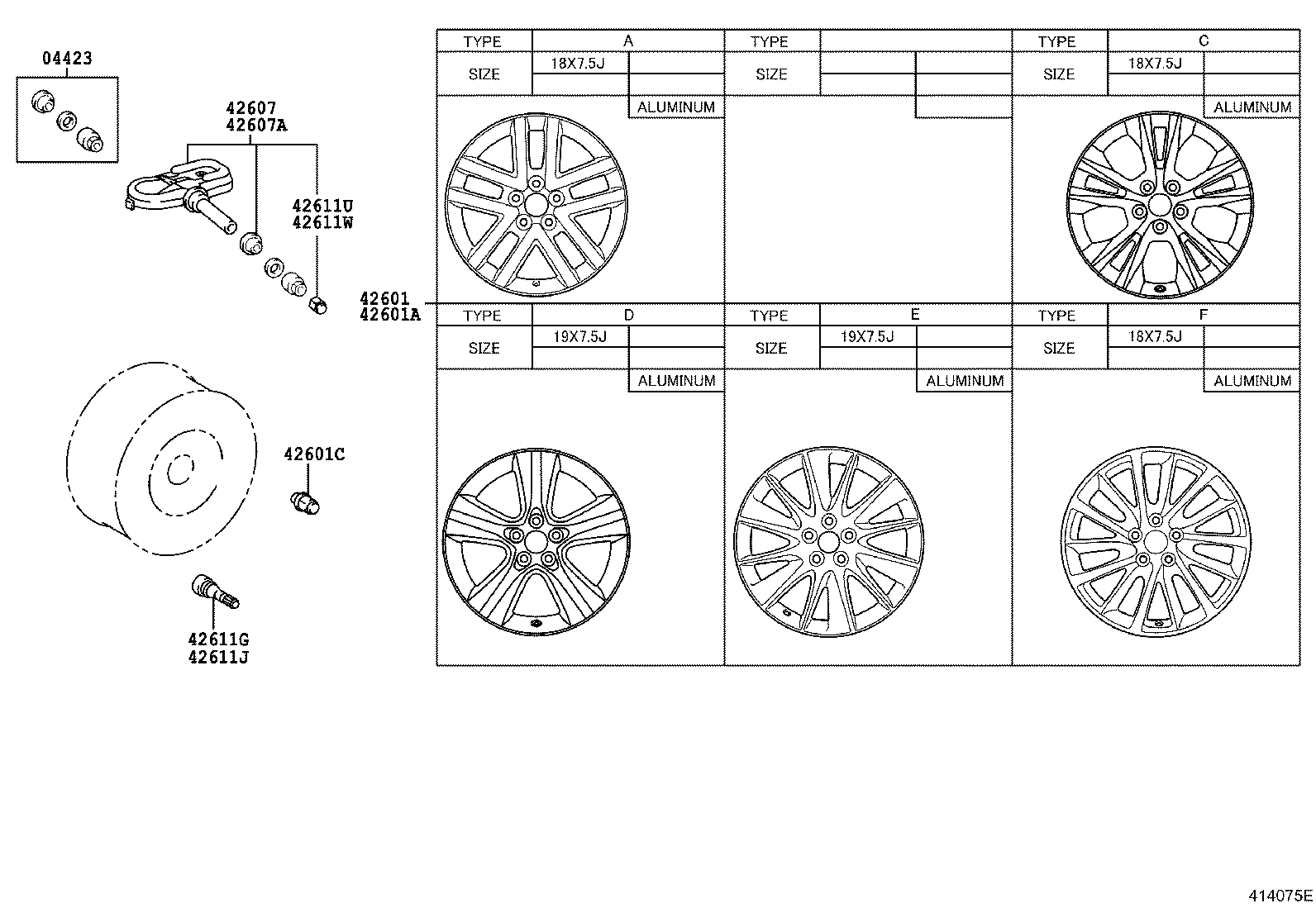

ILLUST NO. 1 OF 2(1312- )

Click highlighted areas on diagram

diagram 04423 42601 42601A 42601C 42607 42607A 42611G 42611J 42611U 42611W
Part # Description Qty Price
42601 - WHEEL, DISC
42611-0E300

ASU50,GSU55..LIMD..RUS

19X7.5J,#,TYPE E:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-0E300

ASU50,GSU55..LIMD..RUS

19X7.5J,#,TYPE E:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90084-94001

ASU50,GSU5#

 20
42611G - VALVE (FOR TUBELESS TIRE)
90080-45006

ASU50,GSU5#

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45006

ASU50,GSU5#

 1
