ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1611)GSU5# ; (1312- )ASU50

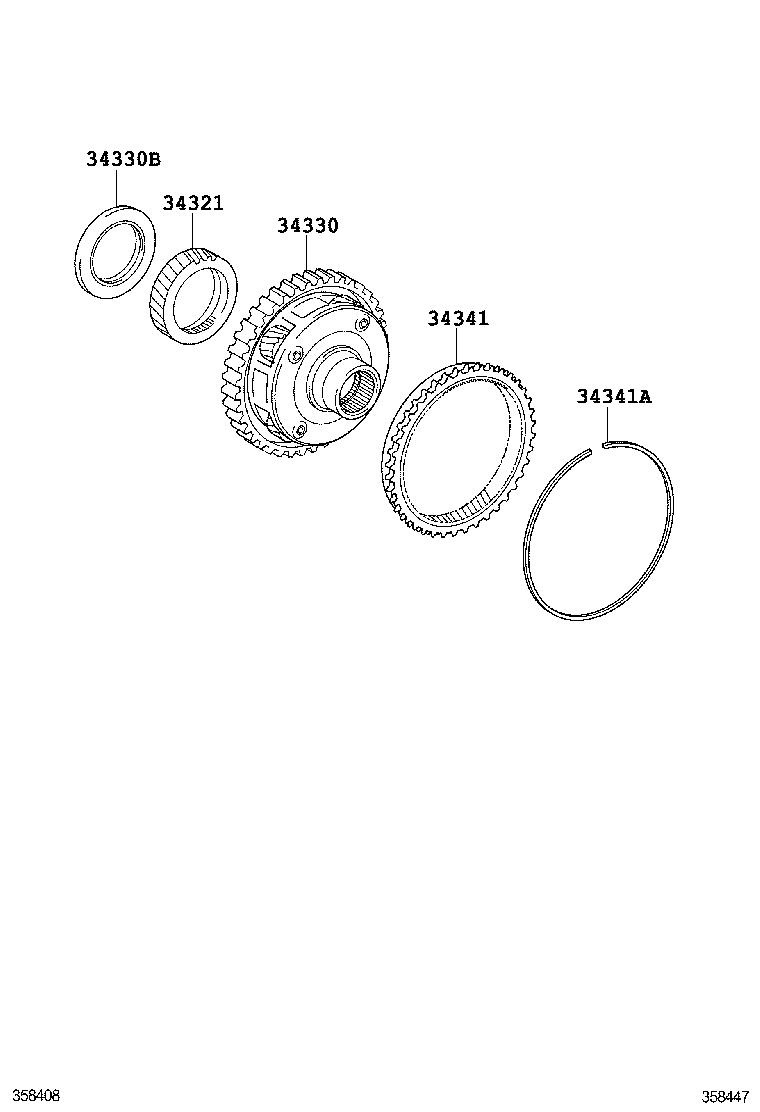

Click highlighted areas on diagram

U660E,U660F,U760E

diagram 34321 34330 34330B 34341 34341A
Part # Description Qty Price
34321 - GEAR, UNDERDRIVE PLANETARY SUN
34321-73010

ASU50

 1
34330 - GEAR ASSY, UNDERDRIVE PLANETARY
34330-07020

ASU50

 1
34330B - BEARING, THRUST NEEDLE ROLLER
90374-A0039

ASU50

 1
34341 - GEAR, UNDERDRIVE PLANETARY RING
34341-0R010

ASU50

(L)

 1
34341A - RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)
90520-A0010

ASU50

 1
