ASU50L-ARTGKX (2013)
Toyota Highlander/Kluger
Production
Dec 2013
-
Nov 2016
Engine
1ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1312-1611)GSU5# ; (1312- )ASU50

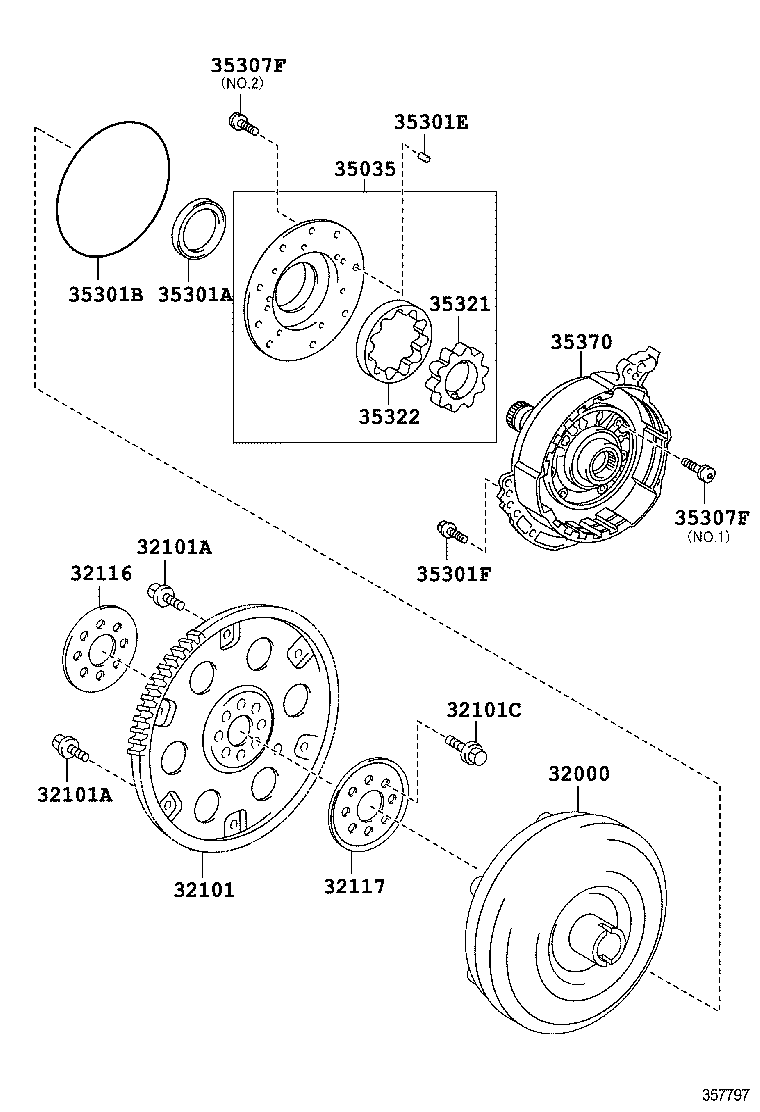

Click highlighted areas on diagram
U660E,U660F,U760E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-06051 |
ASU50 |
1 | ||
| 32000-06050 |
ASU50 |
1 | ||
| 32000-06052 |
ASU50 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-06050 |
ASU50 (L) |
1 | ||
| 32101-73010 |
ASU50 (J) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 |
ASU50,GSU5# *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
ASU50,GSU5# *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 |
ASU50,GSU5# *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
ASU50,GSU5# *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-12384 |
ASU50 *12-1.25PX21-15 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-20050 |
ASU50 |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-20060 |
ASU50 |
1 | ||
| 35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR | ||||
| 35035-0R011 |
ASU50 |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-A0010 |
ASU50 |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 35697-06010 |
ASU50 |
1 | ||
| 35301E - PIN, STRAIGHT (FOR FRONT OIL PUMP) | ||||
| 90250-A0023 |
ASU50 |
2 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-A0120 |
ASU50 *8-1.25PX35-22 |
7 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-A0010 |
ASU50 NO.2 |
9 | ||
| 90148-A0011 |
ASU50 NO.1 |
7 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-A0010 |
ASU50 NO.2 |
9 | ||
| 90148-A0011 |
ASU50 NO.1 |
7 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-0R080 |
ASU50 T=11.567,MARK 3 |
1 | ||
| 35321-0R070 |
ASU50 T=11.567,MARK 2 |
1 | ||
| 35321-0R060 |
ASU50 T=11.567,MARK 1 |
1 | ||
| 35321-0R090 |
ASU50 T=11.567,MARK 4 |
1 | ||
| 35321-0R100 |
ASU50 T=11.567,MARK 5 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-0R080 |
ASU50 T=11.567,MARK 3 |
1 | ||
| 35322-0R060 |
ASU50 T=11.567,MARK 1 |
1 | ||
| 35322-0R070 |
ASU50 T=11.567,MARK 2 |
1 | ||
| 35322-0R090 |
ASU50 T=11.567,MARK 4 |
1 | ||
| 35322-0R100 |
ASU50 T=11.567,MARK 5 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-0R011 |
ASU50 |
1 | ||
