ASU50L-ARTGKX (2013)
Toyota Highlander/Kluger
Production
Dec 2013
-
Nov 2016
Engine
1ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1312- )1ARFE

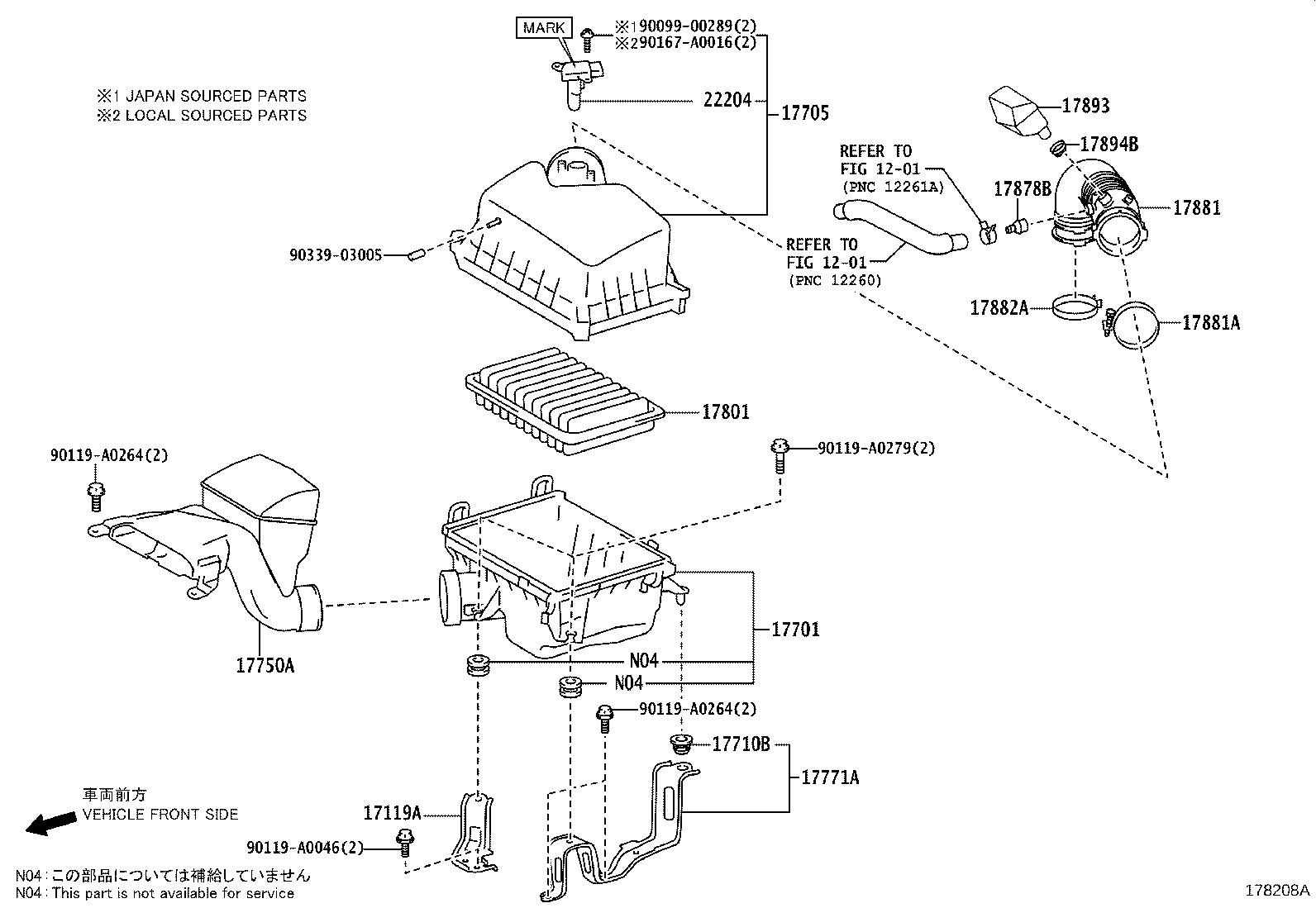

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-0P120 |
1ARFE..ASU50 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0P120 |
1ARFE..ASU50 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0P180 |
1ARFE..ASU50 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-18006 |
1ARFE..ASU50 |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-0V110 |
1ARFE..ASU50 |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-0P020 |
1ARFE..ASU50 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0P051 |
1ARFE..ASU50 |
1 | ||
| 17878B - TUBE, VENTILATION | ||||
| 17878-0V010 |
1ARFE..ASU50 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0V190 |
1ARFE..ASU50 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
1ARFE..ASU50 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10850 |
1ARFE..ASU50 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-0V140 |
1ARFE..ASU50 |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10300 |
1ARFE..ASU50 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0V010 |
1ARFE..ASU50 MARK 22204-0V010 |
1 | ||
| 22204-28010 |
1ARFE..ASU50 MARK 22204-28010 |
1 | ||
| 22204-0V020 |
1ARFE..ASU50 MARK 22204-0V020 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-A0046 | ||||
| 90119-A0264 | ||||
| 90119-A0279 | ||||
| 90167-A0016 | ||||
| 90339-03005 | ||||
| Linked diagrams | ||||
| 1201 | ||||
