ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )1ARFE

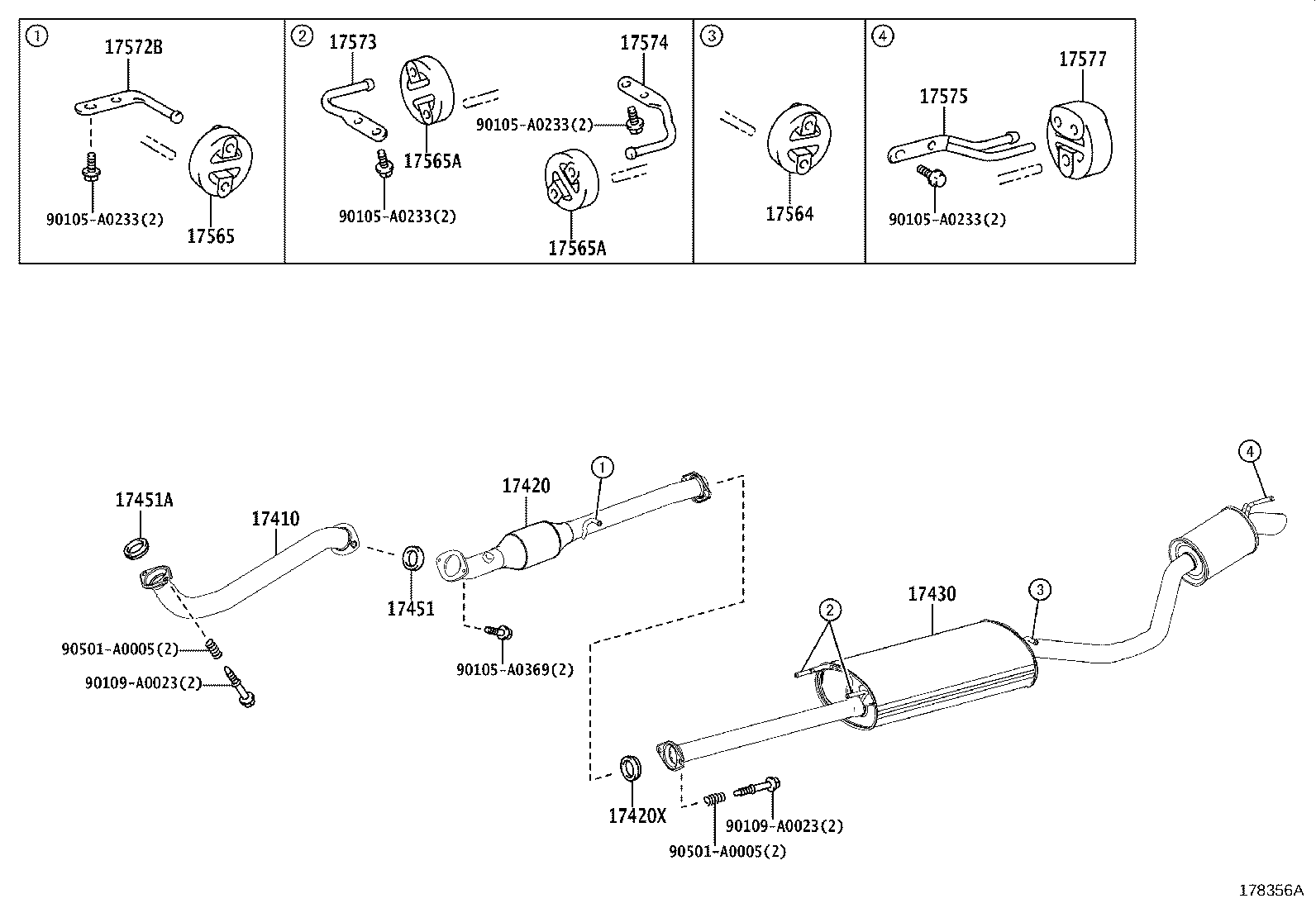

Click highlighted areas on diagram

diagram 17410 17420 17420X 17430 17451 17451A 17564 17565 17565A 17565A 17572B 17573 17574 17575 17577 90105A0233 90105A0233 90105A0233 90105A0233 90105A0369 90109A0023 90109A0023 90501A0005 90501A0005
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0V330

1ARFE..ASU50

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-0V310

1ARFE..ASU50

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-0V020

1ARFE..ASU50

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0V300

1ARFE..ASU50

 1
17451 - GASKET, EXHAUST PIPE
90917-A6001

1ARFE,2GRFE..ASU50,GSU5#

 1
90917-06090

1ARFE,2GRFE..ASU50,GSU5#

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-0V020

1ARFE..ASU50

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0S011

1ARFE,2GRFE..ASU50,GSU5#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0P031

1ARFE..ASU50

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0S011

1ARFE,2GRFE..ASU50,GSU5#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0S011

1ARFE,2GRFE..ASU50,GSU5#

 2
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-0V020

1ARFE..ASU50

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-0P100

1ARFE,2GRFE..ASU50,GSU5#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-0P150

1ARFE,2GRFE..ASU50,GSU5#

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-0P130

1ARFE,2GRFE..ASU50,GSU5#

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17565-0S021

1ARFE,2GRFE..ASU50,GSU5#

 1
Common parts
90105-A0233
90105-A0369
90109-A0023
90501-A0005
