ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )1ARFE

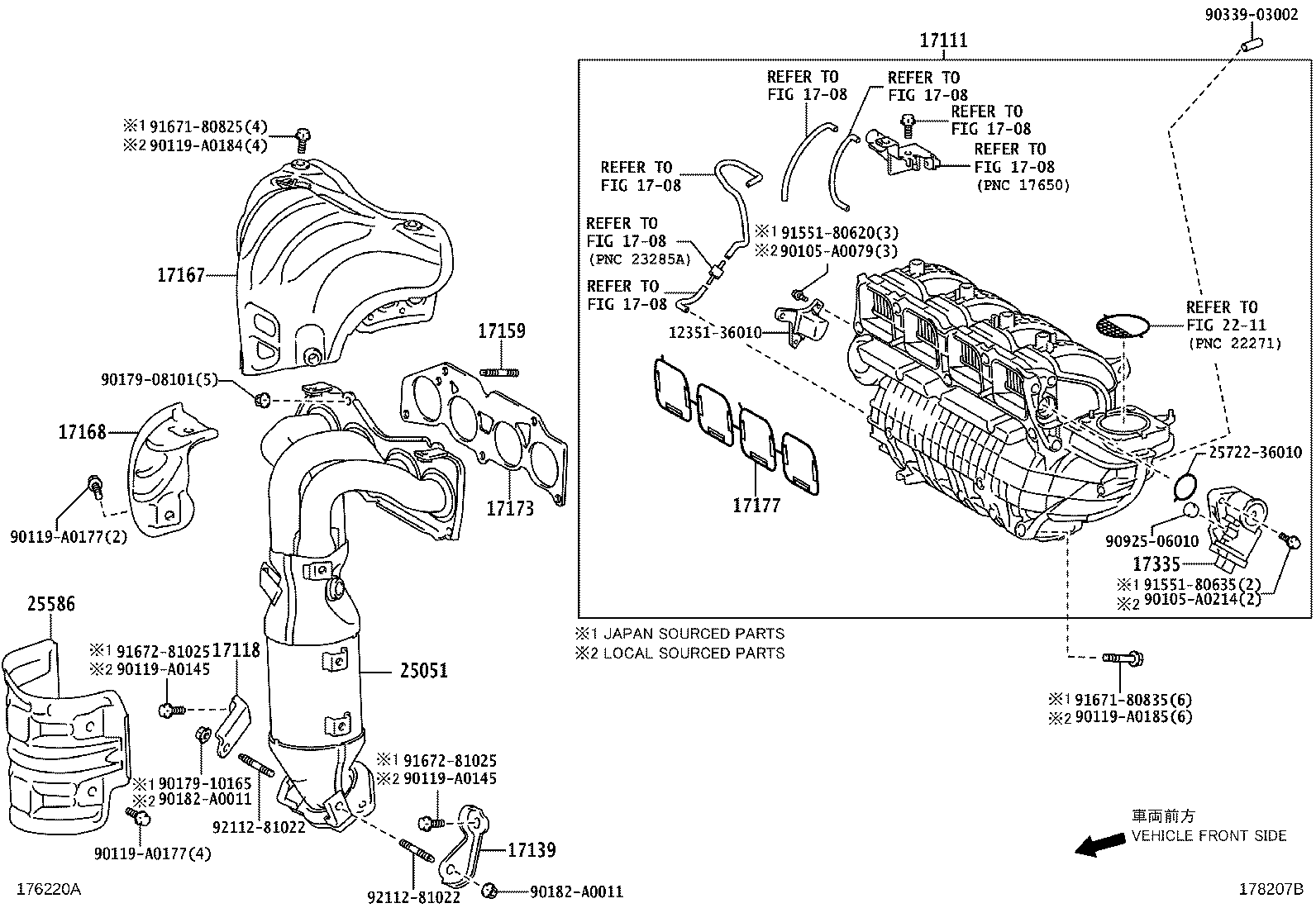

Click highlighted areas on diagram

diagram 1235136010 1708 1708 1708 1708 1708 1708 1708 17111 17118 17139 17159 17167 17168 17173 17177 17335 2211 25051 25586 2572236010 90105A0079 90105A0214 90119A0145 90119A0145 90119A0177 90119A0177 90119A0184 90119A0185 9017908101 9017910165 90182A0011 90182A0011 9033903002 9092506010 9155180620 9155180635 9167180825 9167180835 9167281025 9167281025 9211281022 9211281022
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-0V040

1ARFE..ASU50

 1
17118 - STAY, MANIFOLD
17118-36010

1ARFE..ASU50

(J)

 1
17118-0V010

1ARFE..ASU50

(L)

 1
17139 - STAY, MANIFOLD, NO.2
17139-36020

1ARFE..ASU50

(J)

 1
17139-0V050

1ARFE..ASU50

(L)

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-A0007

1ARFE..ASU50

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0V030

1ARFE..ASU50

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-0V010

1ARFE..ASU50

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0V010

1ARFE..ASU50

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-0V010

1ARFE..ASU50

 1
17335 - ACTUATOR, INTAKE AIR CONTROL VALVE
17335-0V010

1ARFE..ASU50

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-0V190

1ARFE..ASU50

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-0V010

1ARFE..ASU50

 1
Common parts
12351-36010
25722-36010
90105-A0079
90105-A0214
90119-A0145
90119-A0177
90119-A0184
90119-A0185
90179-08101
90179-10165
90182-A0011
90339-03002
90925-06010
91551-80620
91551-80635
91671-80825
91671-80835
91672-81025
92112-81022
Linked diagrams
1708
2211
