ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )1ARFE

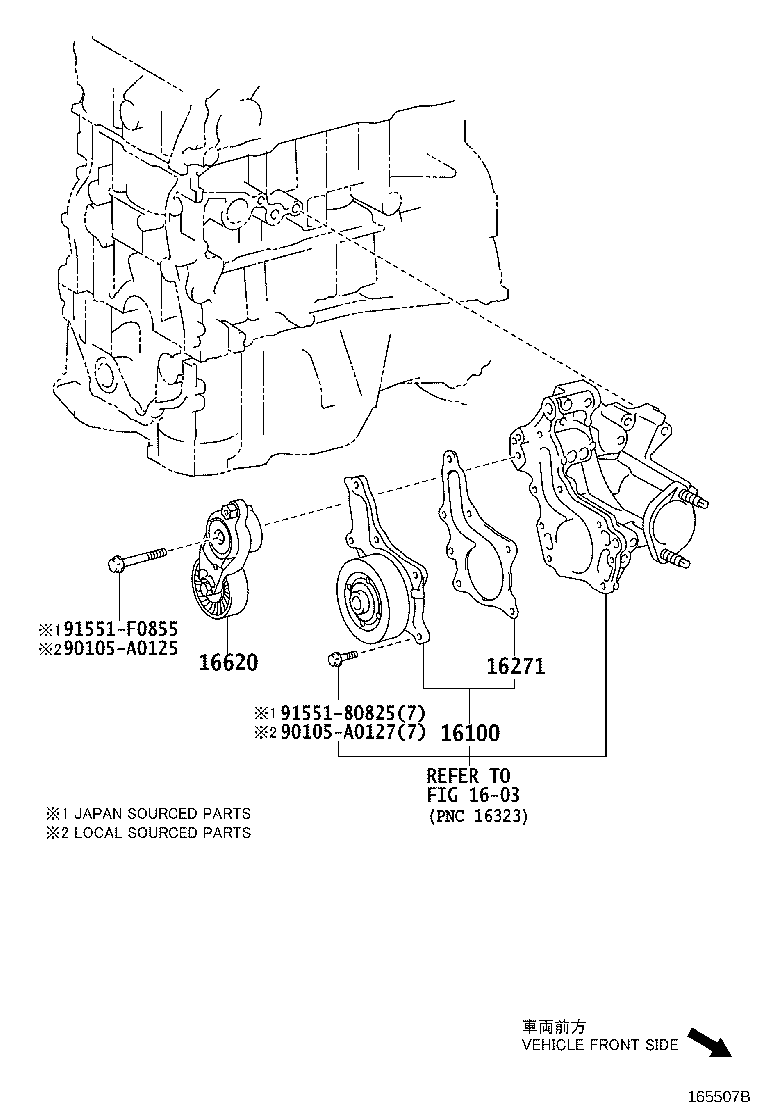

Click highlighted areas on diagram

diagram 1603 16100 16271 16620 90105A0125 90105A0127 9155180825 91551F0855
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09515

1ARFE..ASU50

 1
16271 - GASKET, WATER PUMP
16271-36010

1ARFE..ASU50

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0V022

1ARFE..ASU50

(L)

 1
16620-36010

1ARFE..ASU50

(J)

 1
16620-0V021

1ARFE..ASU50

(L)

 1
16620-36012

1ARFE..ASU50

(J)

 1
16620-36011

1ARFE..ASU50

(J)

 1
Common parts
90105-A0125
90105-A0127
91551-80825
91551-F0855
Linked diagrams
1603
