ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )1ARFE

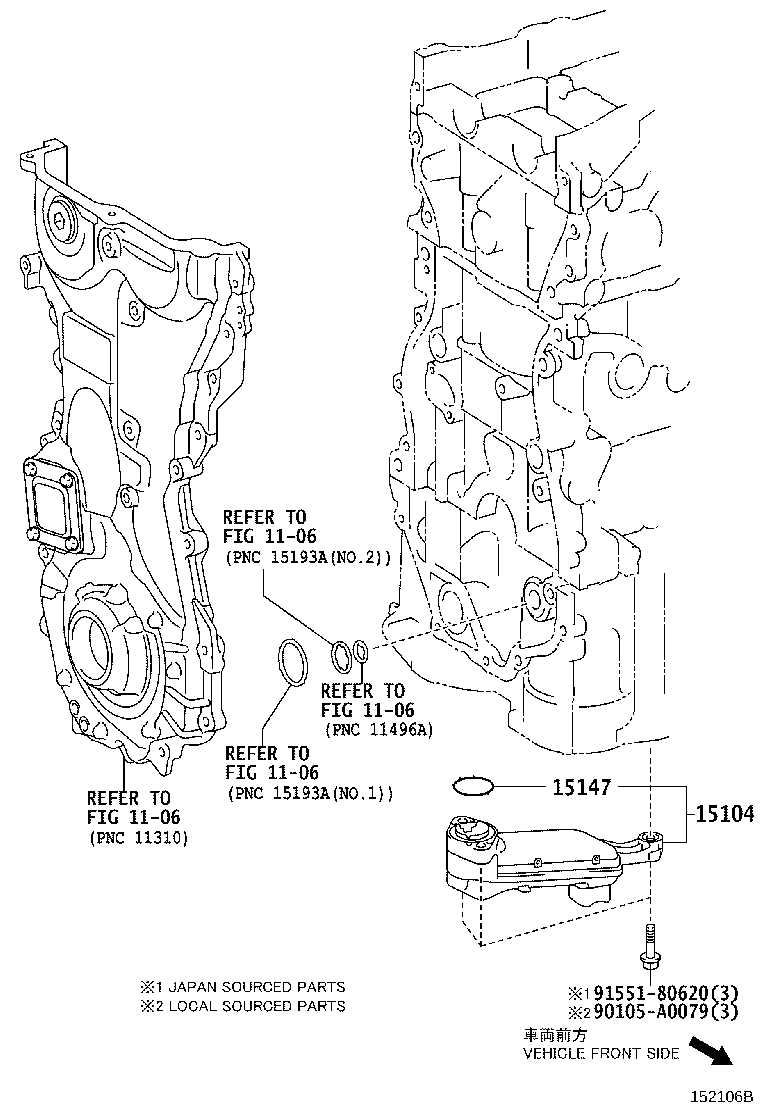

Click highlighted areas on diagram

diagram 1106 1106 1106 1106 15104 15147 90105A0079 9155180620
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-0V050

1ARFE..ASU50

(L)

 1
15104-36020

1ARFE..ASU50

(J)

 1
15104-36020

1ARFE..ASU50

 1
15147 - GASKET, OIL STRAINER
15147-36010

1ARFE..ASU50

 1
Common parts
90105-A0079
91551-80620
Linked diagrams
1106
