ASU50L-ARTGKX (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )1ARFE

Click highlighted areas on diagram

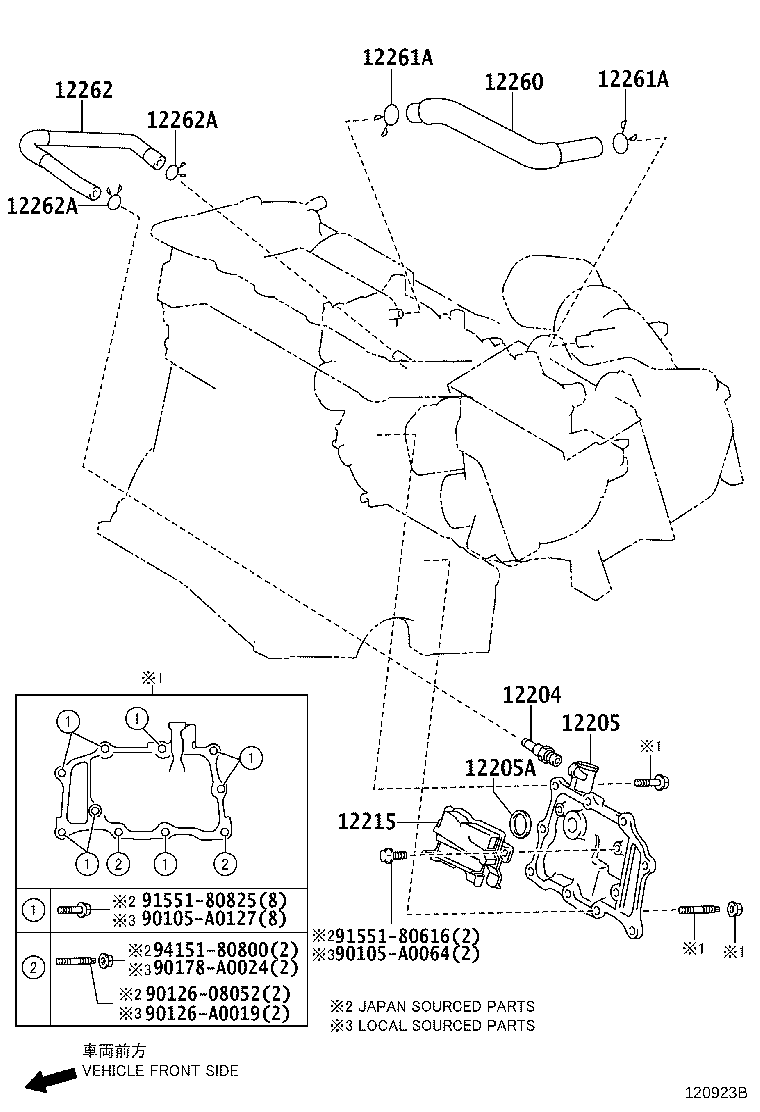

diagram 12204 12205 12205A 12215 12260 12261A 12261A 12262 12262A 12262A 90105A0064 90105A0127 9012608052 90126A0019 90178A0024 9155180616 9155180825 9415180800
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-36020

1ARFE..ASU50

 1
12205 - CASE SUB-ASSY, VENTILATION
12205-0V010

1ARFE..ASU50

 1
12205A - RING, O(FOR VENTILATION CASE)
12273-36010

1ARFE..ASU50

 1
12215 - SEPARATOR, CASE
12215-0V010

1ARFE..ASU50

 1
12260 - HOSE ASSY, VENTILATION
12260-0V130

1ARFE..ASU50

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21004

1ARFE..ASU50

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21004

1ARFE..ASU50

 2
12262 - HOSE, VENTILATION, NO.2
12262-36040

1ARFE..ASU50

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

1ARFE..ASU50

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

1ARFE..ASU50

 2
Common parts
90105-A0064
90105-A0127
90126-08052
90126-A0019
90178-A0024
91551-80616
91551-80825
94151-80800
