YH73RB-QRQ (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 4Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(8708-8908)LH71,YH53,73..05S,15S

Click highlighted areas on diagram

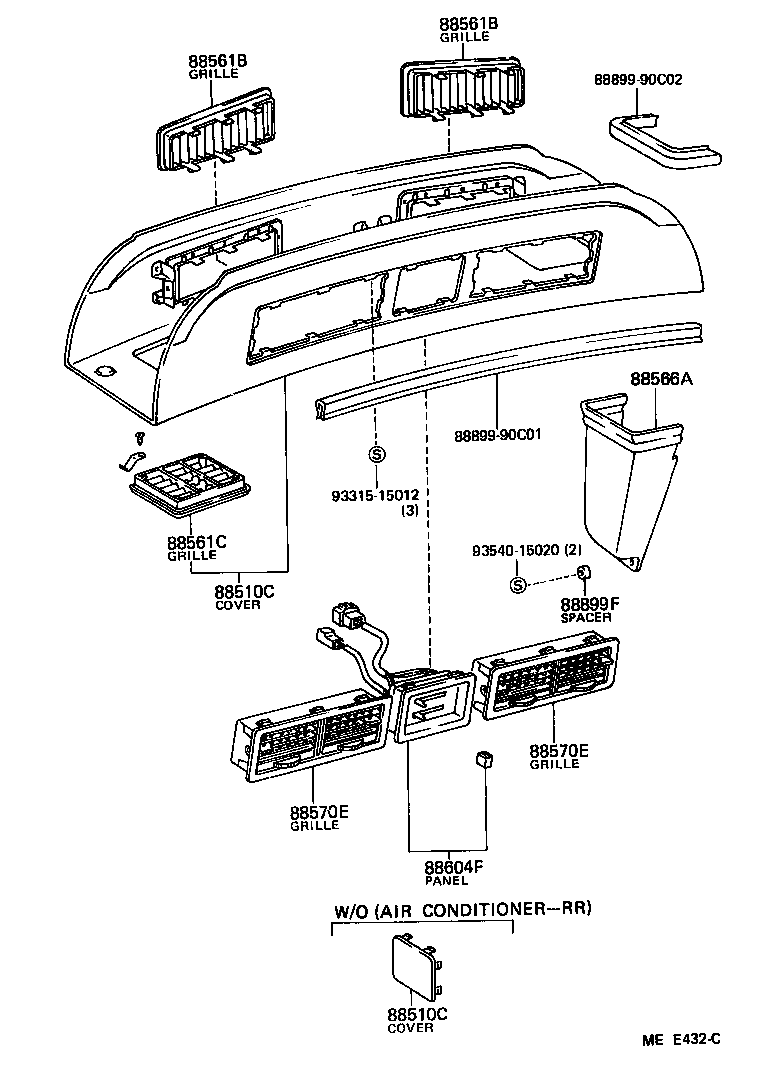

ROOF DUCT

diagram 88510C 88510C 88561B 88561B 88561C 88566A 88570E 88570E 88604F 8889990C01 8889990C02 88899F 9331515012 9354015020
Part # Description Qty Price
88510C - COVER ASSY, COOLER UNIT
88897-94350

LH71,YH73

 1
88510C - COVER ASSY, COOLER UNIT
88897-94350

LH71,YH73

 1
88561B - GRILLE, COOLER AIR INLET
88561-95J0118

LH51,61,71,YH51,61,73..COM

IVORY,TRIM4#,RH

 1
88561-95J0018

LH51,61,71,YH51,61,73..COM

IVORY,TRIM4#,LH

 1
88561B - GRILLE, COOLER AIR INLET
88561-95J0118

LH51,61,71,YH51,61,73..COM

IVORY,TRIM4#,RH

 1
88561-95J0018

LH51,61,71,YH51,61,73..COM

IVORY,TRIM4#,LH

 1
88561C - GRILLE, COOLER AIR INLET
88561-95J0218

LH51,61,71,YH51,61,73..COM

IVORY,TRIM4#

 2
88566A - DUCT, COOLER AIR, NO.1
88896-94352

LH71,YH73

 1
88570E - GRILLE ASSY, AIR OUTLET
88570-95J0018

LH51,61,71,YH51,61,73..COM

IVORY,TRIM4#

 2
88570E - GRILLE ASSY, AIR OUTLET
88570-95J0018

LH51,61,71,YH51,61,73..COM

IVORY,TRIM4#

 2
88604F - PANEL SUB-ASSY, COOLER CONTROL
88604-95J0018

LH51,61,71,YH51,61,73..COM

IVORY,TRIM4#

 1
88899F - SPACER
88899-95J0218

LH71,YH73

IVORY,IVORY,TRIM4#

 2
Common parts
88899-90C01
88899-90C02
93315-15012
93540-15020

ILLUST NO. 1 OF 4(8708- )

Click highlighted areas on diagram

FRONT HEATER CONTROL

diagram 55519 5590510110 5590595707 55906A 55907A 55908A 55909A 55910 55915 55931 55931 55937 55937 55937 5593995703 8401 87284 9018305103 9048013013 9095001112 9356755018
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-95J16

YH63;LH51,61,71,YH53,60,73..ARL,SA

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95J00

LH51,61,71,YH5#,6#,73

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95J00

LH61,71,YH5#,60,61,73

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95J00

LH51,61,71,YH5#,6#,73

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95J00

LH61,71,YH5#,60,61,73

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95J00

YH63;LH51,61,71,YH53,60,73..ARL,SA

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-24010

LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN)

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-24010

LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN)

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-95707

LH51,61,71,YH53,60,73..ARL,SA

 1
55905-10110

LH51,61,71,YH53,60,73..ARL,SA

 3
55937 - KNOB, HEATER CONTROL LEVER
55905-95707

LH51,61,71,YH53,60,73..ARL,SA

 1
55905-10110

LH51,61,71,YH53,60,73..ARL,SA

 3
55937 - KNOB, HEATER CONTROL LEVER
55905-95707

LH51,61,71,YH53,60,73..ARL,SA

 1
55905-10110

LH51,61,71,YH53,60,73..ARL,SA

 3
Common parts
55905-10110
55905-95707
55939-95703
90183-05103
90480-13013
90950-01112
93567-55018
Linked diagrams
8401

ILLUST NO. 3 OF 4(8708- )RHD

Click highlighted areas on diagram

FRONT DUCT

diagram 55791E 87195A 87195A 87201 87211 87214 87215 9009300609 9009900930 9015950134 9015950184 9015960069 9015960069 9015960069 9015960069 9018305094 9018305103 9018906084 9018906084 9048026003 9048026003 9338116016 9338216016 9356755016 9356755018
Part # Description Qty Price
87195A - COVER, HEATER INLET HOLE
87195-95J00

LH51,61,71,YH5#,60,61,73

 1
87195A - COVER, HEATER INLET HOLE
87195-95J00

LH51,61,71,YH5#,60,61,73

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
55086-95J00

LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN)

 1
87211 - DUCT, AIR, NO.1
87211-95J00

LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN)

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55084-95J01

LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN)

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-95J00

LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN)

 1
Common parts
90093-00609
90099-00930
90159-50134
90159-50184
90159-60069
90183-05094
90183-05103
90189-06084
90480-26003
93381-16016
93382-16016
93567-55016
93567-55018
