YH73RB-QRQ (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 4Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LH71,YH73

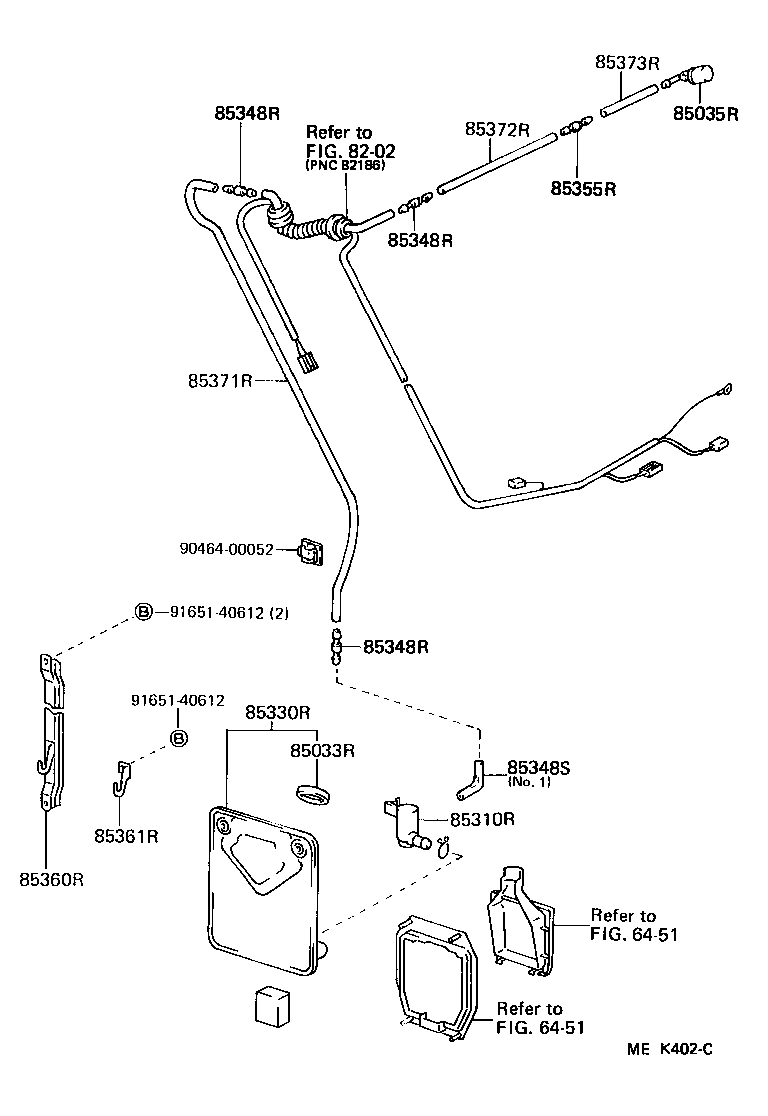

Click highlighted areas on diagram

diagram 6451 6451 8202 85033R 85035R 85310R 85330R 85348R 85348R 85348R 85348S 85355R 85360R 85361R 85371R 85372R 85373R 9046400052 9165140612 9165140612
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85332-20070

LH51,61,71,YH5#,6#,73

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85035-95J00

LH51,61,71,YH5#,6#,73

 1
85310R - MOTOR ASSY, REAR WASHER
85310-22080

LH51,61,71,YH5#,6#,73

 1
85330R - JAR ASSY, REAR WASHER
85330-95J03

LH51,61,71,YH5#,6#,73

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

LH61,71,YH61,73..HRF

 3
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

LH61,71,YH61,73..HRF

 3
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

LH61,71,YH61,73..HRF

 3
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-14481

LH61,71,YH61,73..HRF

NO.1

 1
85355R - VALVE, REAR WASHER HOSE
85031-12250

LH51,61,71,YH5#,6#,73

 1
85360R - BRACKET ASSY, REAR WASHER
85307-95J00

LH61..ARL;LH61..HRF;LH61..06S,15S;LH61..LHD..03S;LH51,71,YH5#,6#,73

 1
85361R - HOLDER, REAR WASHER
85361-95J00

LH61..ARL;LH61..HRF;LH61..06S,15S;LH61..LHD..03S;LH51,71,YH5#,6#,73

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06006

LH61,71,YH61,73..HRF

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-06013

LH61,71,YH61,73..HRF

L=450

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-06013

LH61,71,YH61,73..HRF

L=450

 1
Common parts
90464-00052
91651-40612
Linked diagrams
6451
8202
