YH63RV-SREQ (1987)
Toyota Hiace Van,Commuter
Production
Aug 1987
-
Aug 1989
Engine
4Y
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )YH53,61,63..ATM

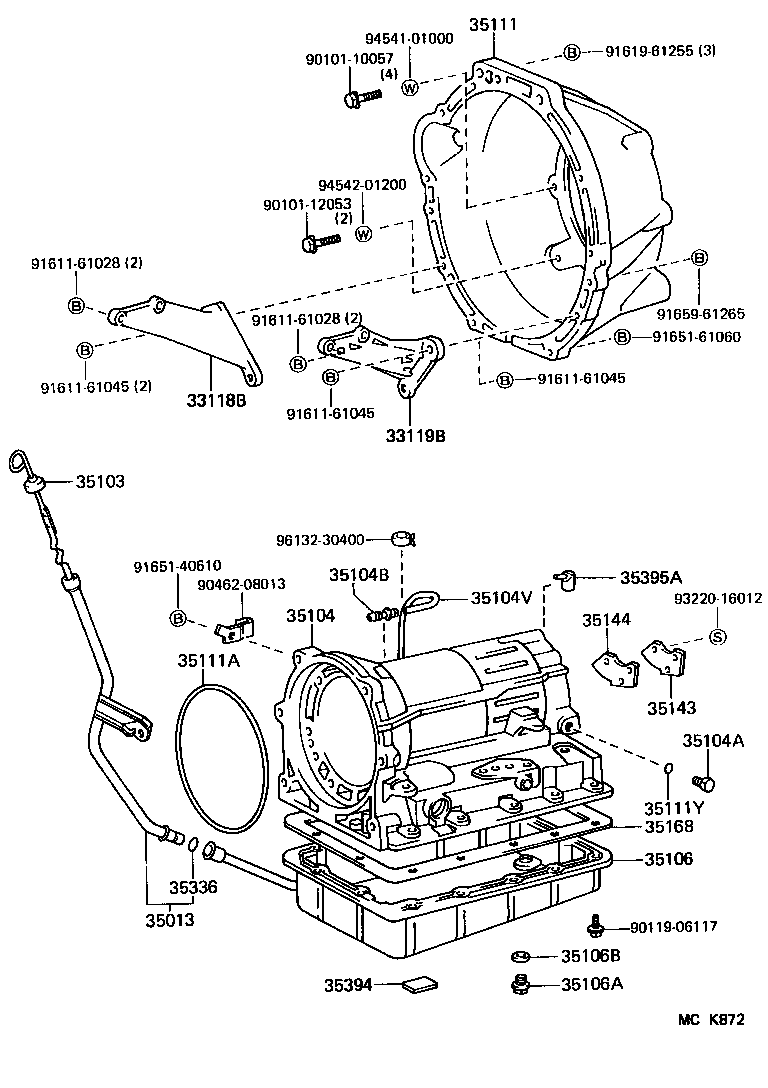

Click highlighted areas on diagram
A45DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-36031 |
YH53,61,63..ATM |
1 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-36030 |
YH53,61,63..ATM |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-26020 |
YH53,61,63..ATM |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-26021 |
YH53,61,63..ATM |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26021 |
LH51,61,YH53,61,63..ATM |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
LH51,61,YH53,63..ATM |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03099 |
LH51,61,YH53,6#..ATM BODY SIDE |
1 | ||
| 90930-03099 |
LH51,61,YH53,63..ATM BODY SIDE |
1 | ||
| 90930-03098 |
LH51,61,YH53,6#..ATM TRANSMISSION CASE |
1 | ||
| 90930-03098 |
LH51,61,YH53,63..ATM TRANSMISSION CASE |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11084 |
LH51,61,YH53,63..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30060 |
YH53,61,63..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
LH51,61,YH53,63..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
LH51,61,YH53,63..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-28011 |
YH53,61,63..ATM |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99054 |
LH51,61,YH53,61,63..ATM |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
LH51,61,YH53,63..ATM |
2 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
LH51,61,YH53,63..ATM |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-22010 |
LH51,61,YH53,61,63..ATM |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
LH51,61,YH53,63..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
LH51,61,YH53,61,63..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
LH51,61,YH53,61,63..ATM |
2 | ||
| 35395A - STRAINER, GOVERNOR OIL | ||||
| 35395-40010 |
YH53,61,63..ATM..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90101-10057 | ||||
| 90101-12053 | ||||
| 90119-06117 | ||||
| 90462-08013 | ||||
| 91611-61028 | ||||
| 91611-61045 | ||||
| 91619-61255 | ||||
| 91651-40610 | ||||
| 91651-61060 | ||||
| 91659-61265 | ||||
| 93220-16012 | ||||
| 94541-01000 | ||||
| 94542-01200 | ||||
| 96132-30400 | ||||
