YH63RV-SRE (1987)
Toyota Hiace Van,Commuter
Production
Aug 1987
-
Aug 1989
Engine
4Y
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )2Y,3Y,4Y

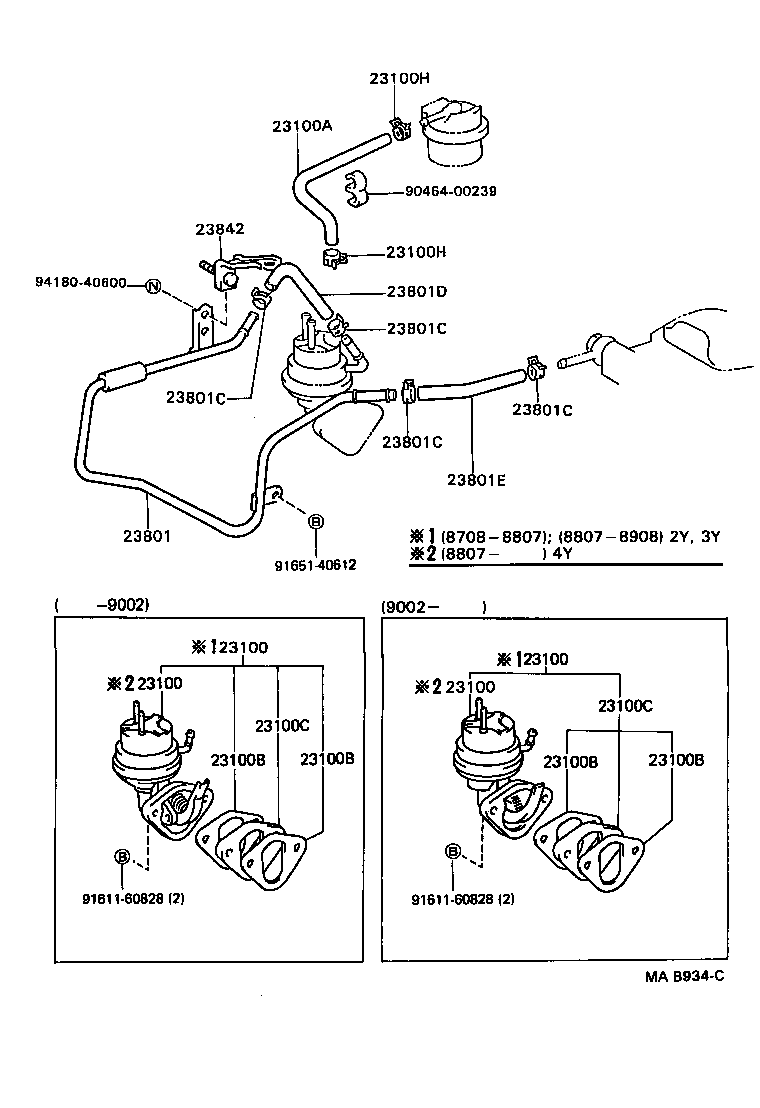

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-73021 |
4Y..YH53,63,73 |
1 | ||
| 23100-79065 |
4Y..YH53,63,73 |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-73021 |
4Y..YH53,63,73 |
1 | ||
| 23100-79065 |
4Y..YH53,63,73 |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-73021 |
4Y..YH53,63,73 |
1 | ||
| 23100-79065 |
4Y..YH53,63,73 |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-73021 |
4Y..YH53,63,73 |
1 | ||
| 23100-79065 |
4Y..YH53,63,73 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95333-06060 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05016 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05016 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05016 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05016 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06008 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06008 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23811-71011 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2Y,3Y,4Y..YH5#,6#,73 |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2Y,3Y,4Y..YH5#,6#,73 |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2Y,3Y,4Y..YH5#,6#,73 |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2Y,3Y,4Y..YH5#,6#,73 |
4 | ||
| 23801D - HOSE, FUEL PIPE, NO.1 | ||||
| 95333-06010 |
2Y,3Y,4Y..YH5#,6#,73 *H,L=100 |
1 | ||
| 23801E - HOSE, FUEL PIPE, NO.2 | ||||
| 95333-06010 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 23841-71011 |
3Y,4Y..YH5#,6#,73 |
1 | ||
| 23841-71012 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| Common parts | ||||
| 90464-00239 | ||||
| 91611-60828 | ||||
| 91651-40612 | ||||
| 94180-40600 | ||||
