YH63RV-QRBQ (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 4Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )MTM

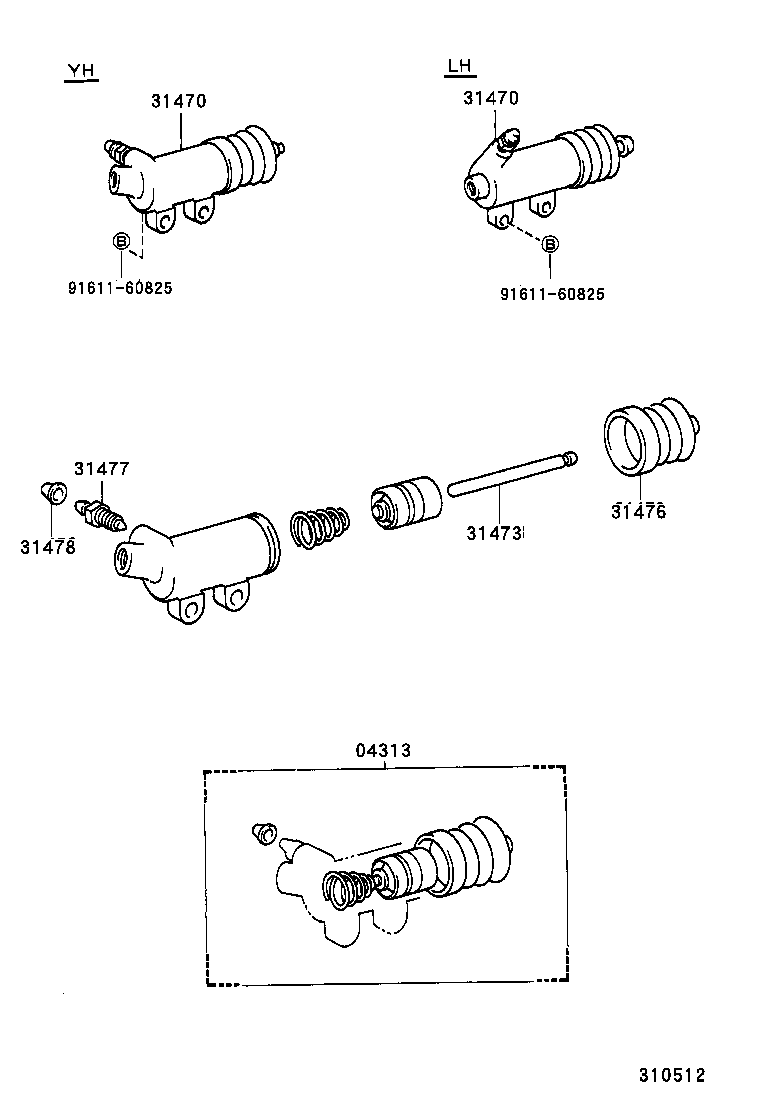

Click highlighted areas on diagram

diagram 04313 31470 31470 31473 31476 31477 31478 9161160825 9161160825
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-22020

LH51,61,71,YH5#,6#,73..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-35050

YH5#,6#,73..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-35050

YH5#,6#,73..MTM

 1
Common parts
91611-60825
