YH63RV-JRBN (1992)

Toyota Hiace Van,Commuter

Production Jun 1992 - Jan 2005
Engine 4Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9206- )STD

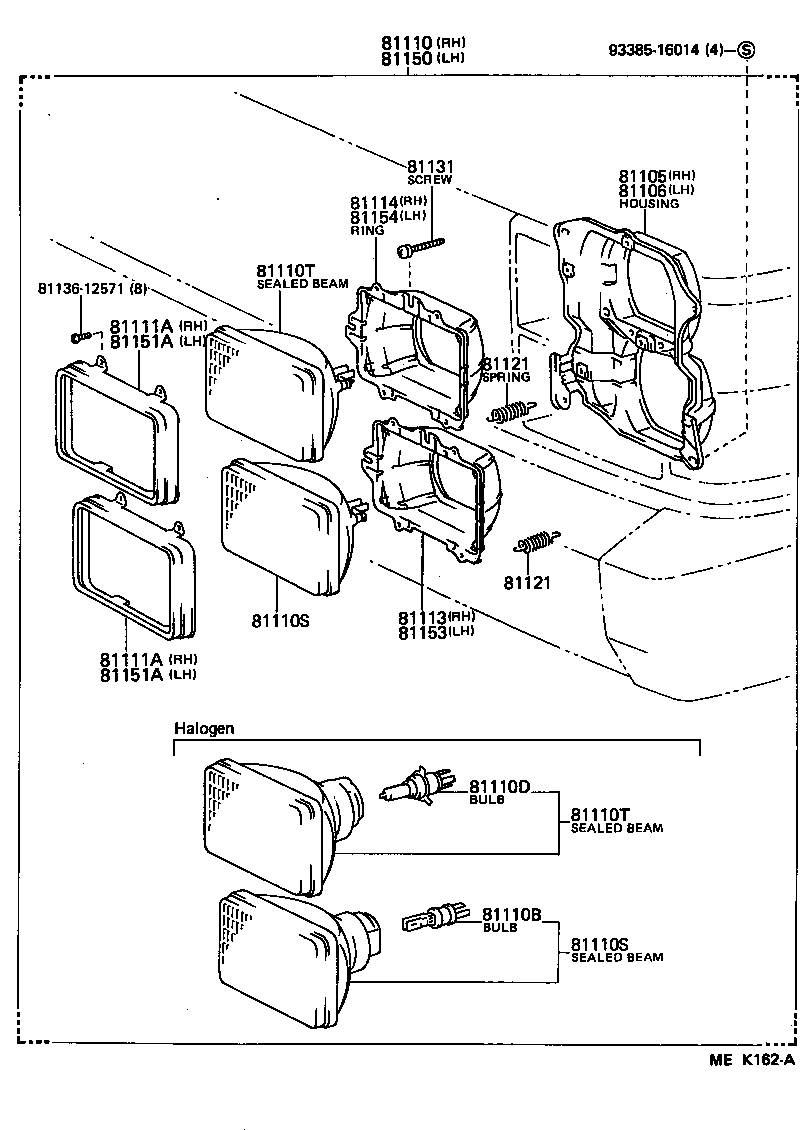

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110D 81110S 81110S 81110T 81110T 81111A 81111A 81113 81114 81121 81121 81131 8113612571 81150 81151A 81151A 81153 81154 9338516014
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95J14

YH63..03S

 1
81105-95J14

LH51,61,71,YH5#,6#,73..STD

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95J14

YH63..03S

 1
81106-95J14

LH51,61,71,YH5#,6#,73..STD

 1
81110 - HEADLAMP ASSY, RH
81110-95J57

YH63..03S

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

YH63..03S

12V 45/40W,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04005

YH63..03S

12V 45/40W,*WSB

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04005

YH63..03S

12V 45/40W,*WSB

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-16020

YH63..03S

 1
81111-16020

LH51,61,71,YH5#,6#,73..STD

 1
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-16020

YH63..03S

 1
81111-16020

LH51,61,71,YH5#,6#,73..STD

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-16220

YH63..03S

 1
81153-16220

LH51,61,71,YH5#,6#,73..STD

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

YH63..03S

 2
81121-16020

LH51,61,71,YH5#,6#,73..STD

 2
81121 - SPRING, HEADLAMP TENSION
81121-16020

YH63..03S

 2
81121-16020

LH51,61,71,YH5#,6#,73..STD

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

LH51,61,71,YH5#,6#,73..STD

 4
81131-10031

YH63..03S

 4
81150 - HEADLAMP ASSY, LH
81150-95J57

YH63..03S

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-16020

YH63..03S

 1
81111-16020

LH51,61,71,YH5#,6#,73..STD

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-16020

YH63..03S

 1
81111-16020

LH51,61,71,YH5#,6#,73..STD

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81113-16220

YH63..03S

 1
81113-16220

LH51,61,71,YH5#,6#,73..STD

 1
Common parts
81136-12571
93385-16014
