YH63RV-JRBN (1992)
Toyota Hiace Van,Commuter

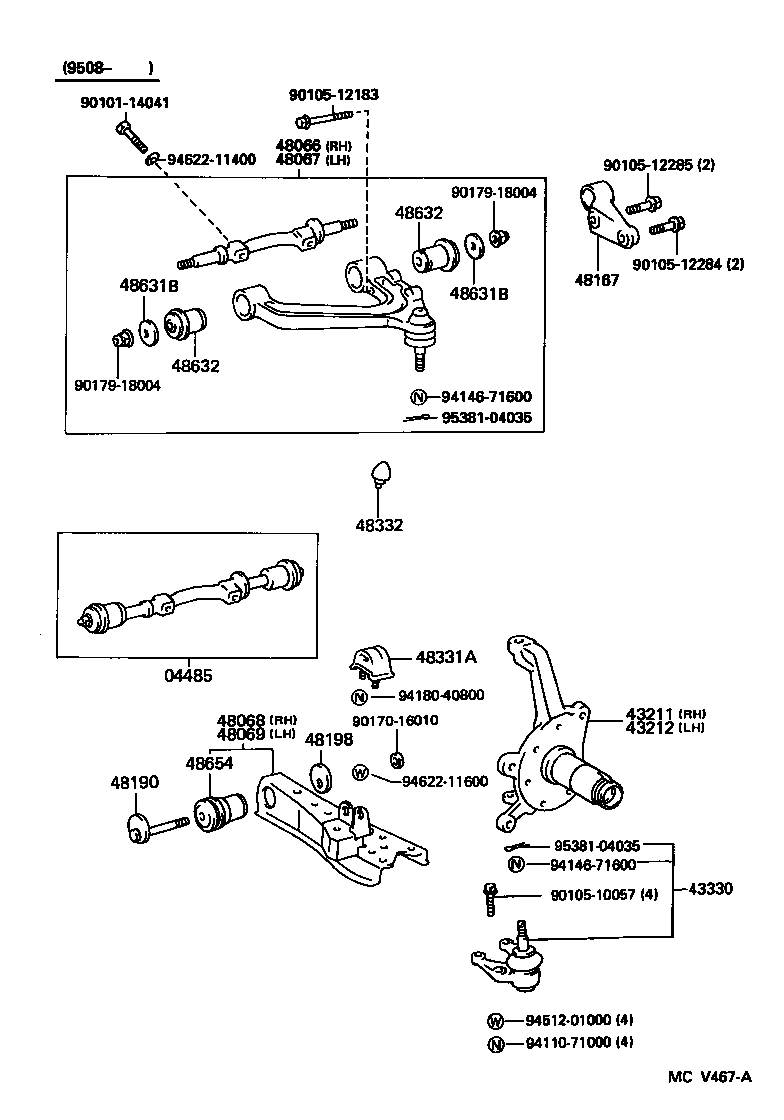

(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-26040 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 04485-26050 |
YH53,63 |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-26051 |
YH63;LH51,61,71,YH53,60,73..ARL,SA |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-26021 |
YH63;LH51,61,71,YH53,60,73..ARL,SA |
1 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29155 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-29075 |
YH53,63 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-29075 |
YH53,63 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-26131 |
YH53,63 |
1 | ||
| 48068-26050 |
YH53,63 |
1 | ||
| 48068-26130 |
YH53,63 |
1 | ||
| 48068-26090 |
YH53,63 |
1 | ||
| 48068-26022 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-26130 |
YH53,63 |
1 | ||
| 48069-26090 |
YH53,63 |
1 | ||
| 48069-26050 |
YH53,63 |
1 | ||
| 48069-26131 |
YH53,63 |
1 | ||
| 48069-26022 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48106-26011 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 48106-26040 |
YH53,63 |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-26020 |
YH53,63 |
2 | ||
| 48190-26010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-26010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 48198-26010 |
YH53,63 |
2 | ||
| 48331A - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-26100 |
YH53,63 |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-35020 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 48332-35020 |
YH53,63 |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02065 |
LH51,61,71,YH5#,6#,73 RR |
2 | ||
| 90948-02142 |
YH53,63 RR |
2 | ||
| 90948-02143 |
YH53,63 FR |
2 | ||
| 90948-02066 |
LH51,61,71,YH5#,6#,73 FR |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02065 |
LH51,61,71,YH5#,6#,73 RR |
2 | ||
| 90948-02142 |
YH53,63 RR |
2 | ||
| 90948-02143 |
YH53,63 FR |
2 | ||
| 90948-02066 |
LH51,61,71,YH5#,6#,73 FR |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-26010 |
YH53,63 FR |
2 | ||
| 48635-26010 |
LH51,61,71,YH5#,6#,73 RR |
2 | ||
| 48632-26010 |
LH51,61,71,YH5#,6#,73 FR |
2 | ||
| 48635-26010 |
YH53,63 RR |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-26010 |
YH53,63 FR |
2 | ||
| 48635-26010 |
LH51,61,71,YH5#,6#,73 RR |
2 | ||
| 48632-26010 |
LH51,61,71,YH5#,6#,73 FR |
2 | ||
| 48635-26010 |
YH53,63 RR |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-26030 |
YH53,63 |
2 | ||
| 48061-26050 |
YH53,63 |
2 | ||
| 48061-26031 |
YH53,63 |
2 | ||
| 48061-26010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| Common parts | ||||
| 90101-14041 | ||||
| 90105-10057 | ||||
| 90105-12183 | ||||
| 90105-12284 | ||||
| 90105-12285 | ||||
| 90170-16010 | ||||
| 90179-18004 | ||||
| 94110-71000 | ||||
| 94146-71600 | ||||
| 94180-40800 | ||||
| 94512-01000 | ||||
| 94622-11400 | ||||
| 94622-11600 | ||||
| 95381-04035 | ||||

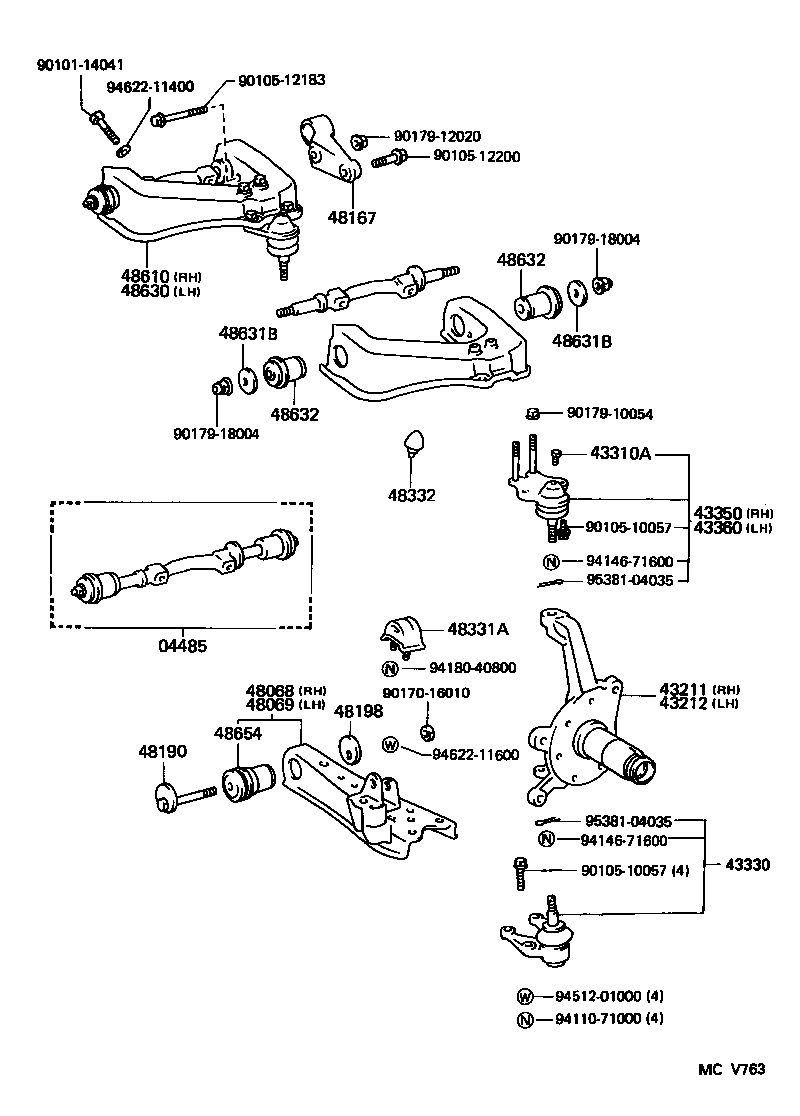

(9206-9508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-26040 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 04485-26050 |
YH53,63 |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-26051 |
YH63;LH51,61,71,YH53,60,73..ARL,SA |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-26021 |
YH63;LH51,61,71,YH53,60,73..ARL,SA |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
YH53,63 |
2 | ||
| 90345-06014 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29155 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 43350 - JOINT ASSY, FRONT UPPER BALL, RH | ||||
| 43350-29056 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 43350-29065 |
YH53,63 |
1 | ||
| 43350-29095 |
YH53,63 |
1 | ||
| 43360 - JOINT ASSY, FRONT UPPER BALL, LH | ||||
| 43350-29095 |
YH53,63 |
1 | ||
| 43350-29065 |
YH53,63 |
1 | ||
| 43360-29076 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-26131 |
YH53,63 |
1 | ||
| 48068-26050 |
YH53,63 |
1 | ||
| 48068-26130 |
YH53,63 |
1 | ||
| 48068-26090 |
YH53,63 |
1 | ||
| 48068-26022 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-26130 |
YH53,63 |
1 | ||
| 48069-26090 |
YH53,63 |
1 | ||
| 48069-26050 |
YH53,63 |
1 | ||
| 48069-26131 |
YH53,63 |
1 | ||
| 48069-26022 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48106-26011 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 48106-26040 |
YH53,63 |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-26020 |
YH53,63 |
2 | ||
| 48190-26010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-26010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 48198-26010 |
YH53,63 |
2 | ||
| 48331A - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-26100 |
YH53,63 |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-35020 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 48332-35020 |
YH53,63 |
2 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-26031 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 48610-29085 |
YH53,63 |
1 | ||
| 48610-29015 |
YH53,63 |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-29075 |
YH53,63 |
1 | ||
| 48630-29015 |
YH53,63 |
1 | ||
| 48630-26031 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02065 |
LH51,61,71,YH5#,6#,73 RR |
2 | ||
| 90948-02142 |
YH53,63 RR |
2 | ||
| 90948-02143 |
YH53,63 FR |
2 | ||
| 90948-02066 |
LH51,61,71,YH5#,6#,73 FR |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02065 |
LH51,61,71,YH5#,6#,73 RR |
2 | ||
| 90948-02142 |
YH53,63 RR |
2 | ||
| 90948-02143 |
YH53,63 FR |
2 | ||
| 90948-02066 |
LH51,61,71,YH5#,6#,73 FR |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-26010 |
YH53,63 FR |
2 | ||
| 48635-26010 |
LH51,61,71,YH5#,6#,73 RR |
2 | ||
| 48632-26010 |
LH51,61,71,YH5#,6#,73 FR |
2 | ||
| 48635-26010 |
YH53,63 RR |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-26010 |
YH53,63 FR |
2 | ||
| 48635-26010 |
LH51,61,71,YH5#,6#,73 RR |
2 | ||
| 48632-26010 |
LH51,61,71,YH5#,6#,73 FR |
2 | ||
| 48635-26010 |
YH53,63 RR |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-26030 |
YH53,63 |
2 | ||
| 48061-26050 |
YH53,63 |
2 | ||
| 48061-26031 |
YH53,63 |
2 | ||
| 48061-26010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| Common parts | ||||
| 90101-14041 | ||||
| 90105-10057 | ||||
| 90105-12183 | ||||
| 90105-12200 | ||||
| 90170-16010 | ||||
| 90179-10054 | ||||
| 90179-12020 | ||||
| 90179-18004 | ||||
| 94110-71000 | ||||
| 94146-71600 | ||||
| 94180-40800 | ||||
| 94512-01000 | ||||
| 94622-11400 | ||||
| 94622-11600 | ||||
| 95381-04035 | ||||
