YH63RV-JRBN (1992)
Toyota Hiace Van,Commuter

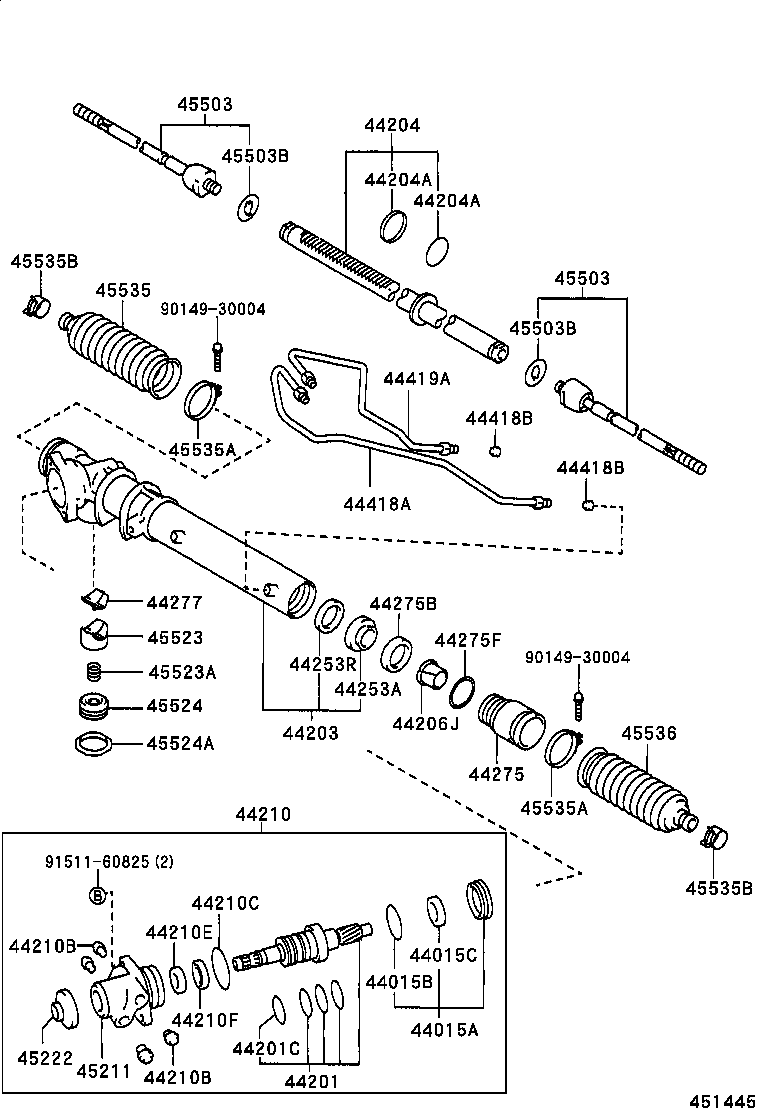

ILLUST NO. 2 OF 3(9206- )
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-27020 |
YH53,63 |
1 | ||
| 45222-26010 |
LH51,61,71,YH5#,6#,73..RHD |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29255 |
YH53,63 |
2 | ||
| 45503-29565 |
YH53,63 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29255 |
YH53,63 |
2 | ||
| 45503-29565 |
YH53,63 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
YH53,63 OD=41 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
YH53,63 OD=41 |
2 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-40021 |
YH53,63 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-34010 |
YH53,63 |
1 | ||
| 45524-26010 |
YH53,63 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-48002 |
YH53,63 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-26020 |
YH53,63 |
1 | ||
| 45535-26030 |
YH53,63 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55011 |
YH53,63 OUTER |
1 | ||
| 90460-44003 |
YH53,63 INNER |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55011 |
YH53,63 OUTER |
1 | ||
| 90460-44003 |
YH53,63 INNER |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-21006 |
YH53,63 |
2 | ||
| 90467-19017 |
YH53,63 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-21006 |
YH53,63 |
2 | ||
| 90467-19017 |
YH53,63 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-26020 |
YH53,63 |
1 | ||
| 45536-26010 |
YH53,63 |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||

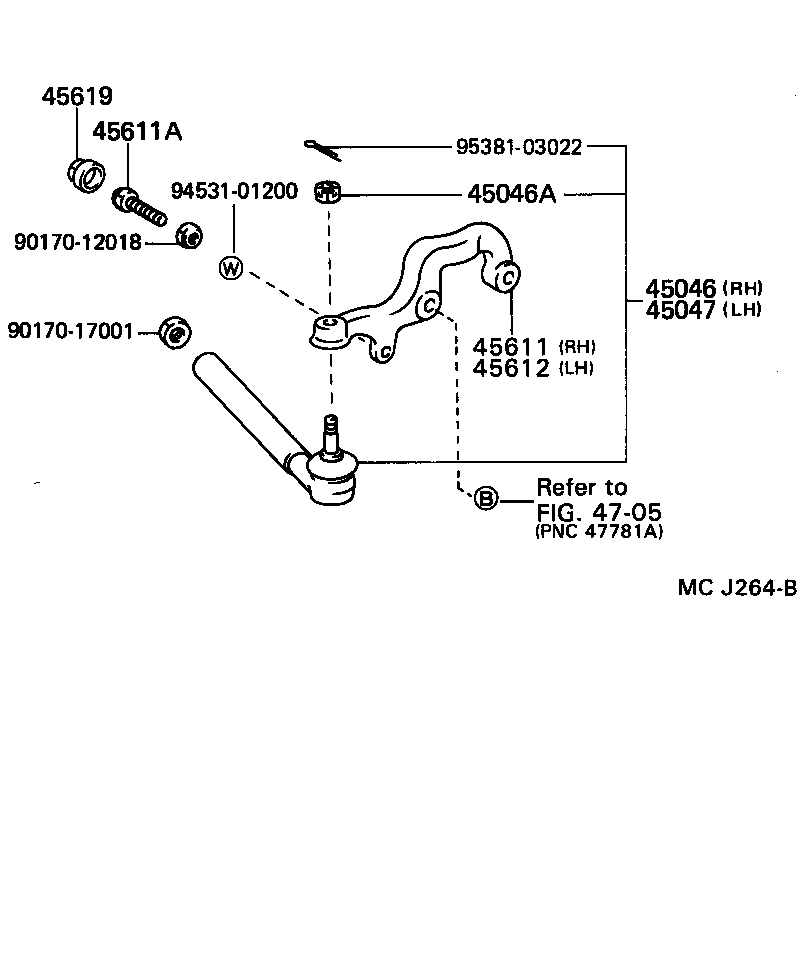

ILLUST NO. 3 OF 3(9206- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29125 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 45046-29215 |
YH53,63 |
1 | ||
| 45046-29325 |
YH53,63 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| 90171-14002 |
YH53,63 |
2 | ||
| 90171-14042 |
YH53,63 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29215 |
YH53,63 |
1 | ||
| 45046-29325 |
YH53,63 |
1 | ||
| 45046-29125 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-26060 |
YH53,63 |
1 | ||
| 45611-26040 |
YH63;LH51,61,71,YH53,60,73..ARL,SA |
1 | ||
| 45611-26091 |
YH53,63 |
1 | ||
| 45611-26110 |
YH53,63 |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-12022 |
YH53,63 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-26091 |
YH53,63 |
1 | ||
| 45612-26060 |
YH53,63 |
1 | ||
| 45612-26040 |
YH63;LH51,61,71,YH53,60,73..ARL,SA |
1 | ||
| 45612-26110 |
YH53,63 |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-36010 |
YH53,63 |
2 | ||
| 45619-36010 |
LH51,61,71,YH5#,6#,73 |
2 | ||
| Common parts | ||||
| 90170-12018 | ||||
| 90170-17001 | ||||
| 94531-01200 | ||||
| 95381-03022 | ||||
| Linked diagrams | ||||
| 4705 | ||||

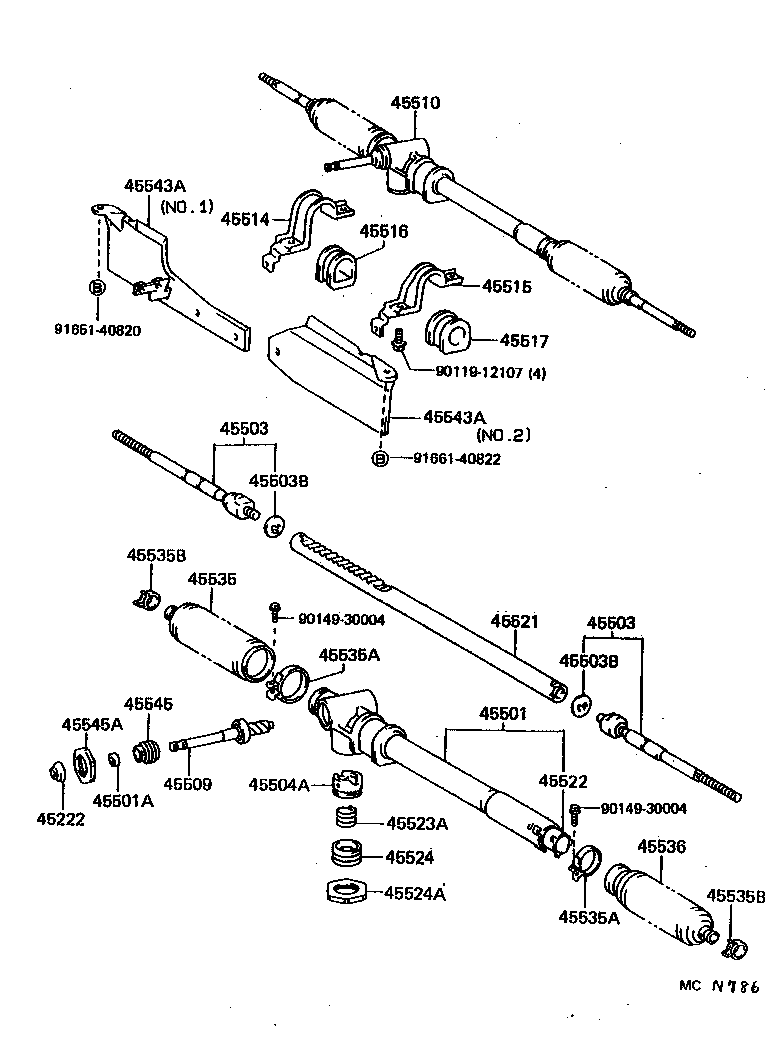

ILLUST NO. 1 OF 3(9206- )
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-27020 |
YH53,63 |
1 | ||
| 45222-26010 |
LH51,61,71,YH5#,6#,73..RHD |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-26010 |
YH53,63 |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15002 |
YH53,63 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29255 |
YH53,63 |
2 | ||
| 45503-29565 |
YH53,63 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29255 |
YH53,63 |
2 | ||
| 45503-29565 |
YH53,63 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
YH53,63 OD=41 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
YH53,63 OD=41 |
2 | ||
| 45504A - GUIDE SUB-ASSY, RACK | ||||
| 45504-26010 |
YH53,63 |
1 | ||
| 45509 - PINION SUB-ASSY, STEERING | ||||
| 45509-26010 |
YH53,63 |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-26010 |
YH53,63 |
1 | ||
| 45510-26050 |
YH53,63 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-26020 |
YH53,63 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-26020 |
YH53,63 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-26010 |
YH53,63 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-26030 |
YH53,63 |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-26010 |
YH53,63 |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-26010 |
YH53,63 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-40021 |
YH53,63 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-34010 |
YH53,63 |
1 | ||
| 45524-26010 |
YH53,63 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-48002 |
YH53,63 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-26020 |
YH53,63 |
1 | ||
| 45535-26030 |
YH53,63 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55011 |
YH53,63 OUTER |
1 | ||
| 90460-44003 |
YH53,63 INNER |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55011 |
YH53,63 OUTER |
1 | ||
| 90460-44003 |
YH53,63 INNER |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-21006 |
YH53,63 |
2 | ||
| 90467-19017 |
YH53,63 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-21006 |
YH53,63 |
2 | ||
| 90467-19017 |
YH53,63 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-26020 |
YH53,63 |
1 | ||
| 45536-26010 |
YH53,63 |
1 | ||
| 45543A - PROTECTOR, STEERING RACK BOOT, RH | ||||
| 45543-26010 |
YH53,63 |
1 | ||
| 45544-26010 |
YH53,63 |
1 | ||
| 45543A - PROTECTOR, STEERING RACK BOOT, RH | ||||
| 45543-26010 |
YH53,63 |
1 | ||
| 45544-26010 |
YH53,63 |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-26010 |
YH53,63 |
1 | ||
| 45545-27010 |
YH53,63 |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
YH53,63 |
1 | ||
| Common parts | ||||
| 90119-12107 | ||||
| 90149-30004 | ||||
| 91651-40820 | ||||
| 91661-40822 | ||||

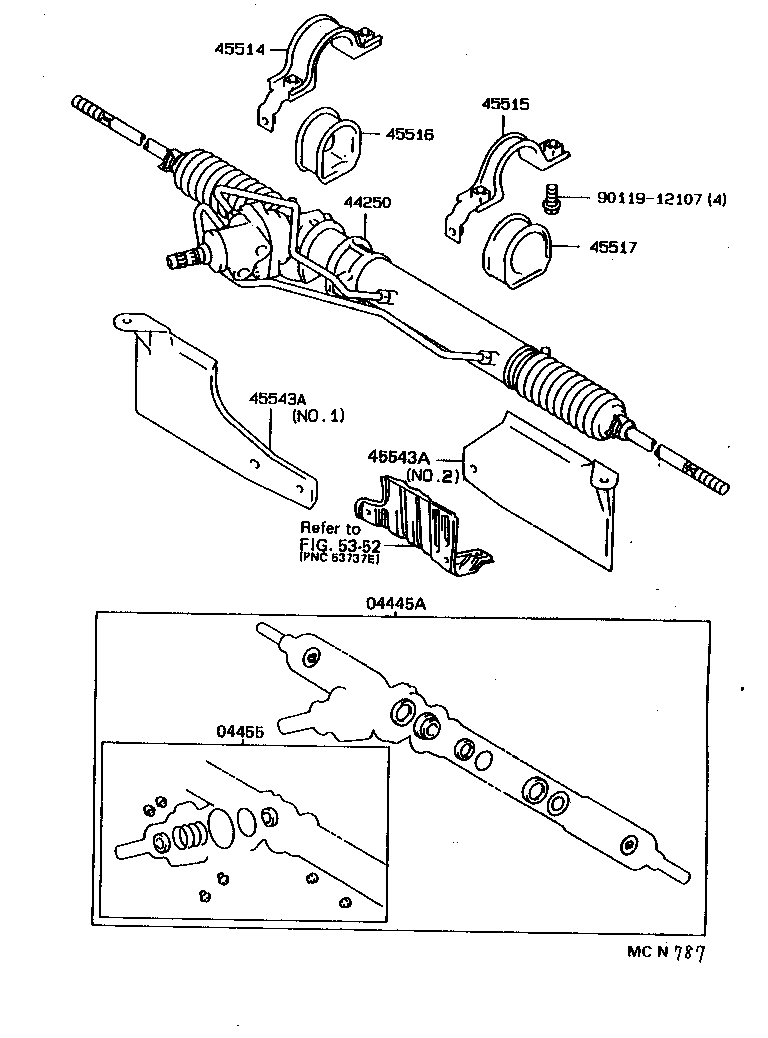

ILLUST NO. 1 OF 3(9206- )
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-26020 |
YH53,63 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-26020 |
YH53,63 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-26010 |
YH53,63 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-26030 |
YH53,63 |
1 | ||
| 45543A - PROTECTOR, STEERING RACK BOOT, RH | ||||
| 45543-26010 |
YH53,63 |
1 | ||
| 45544-26010 |
YH53,63 |
1 | ||
| 45543A - PROTECTOR, STEERING RACK BOOT, RH | ||||
| 45543-26010 |
YH53,63 |
1 | ||
| 45544-26010 |
YH53,63 |
1 | ||
| Common parts | ||||
| 90119-12107 | ||||
| Linked diagrams | ||||
| 5352 | ||||
