YH63RV-JRBN (1992)
Toyota Hiace Van,Commuter
Production
Jun 1992
-
Jan 2005
Engine
4Y
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

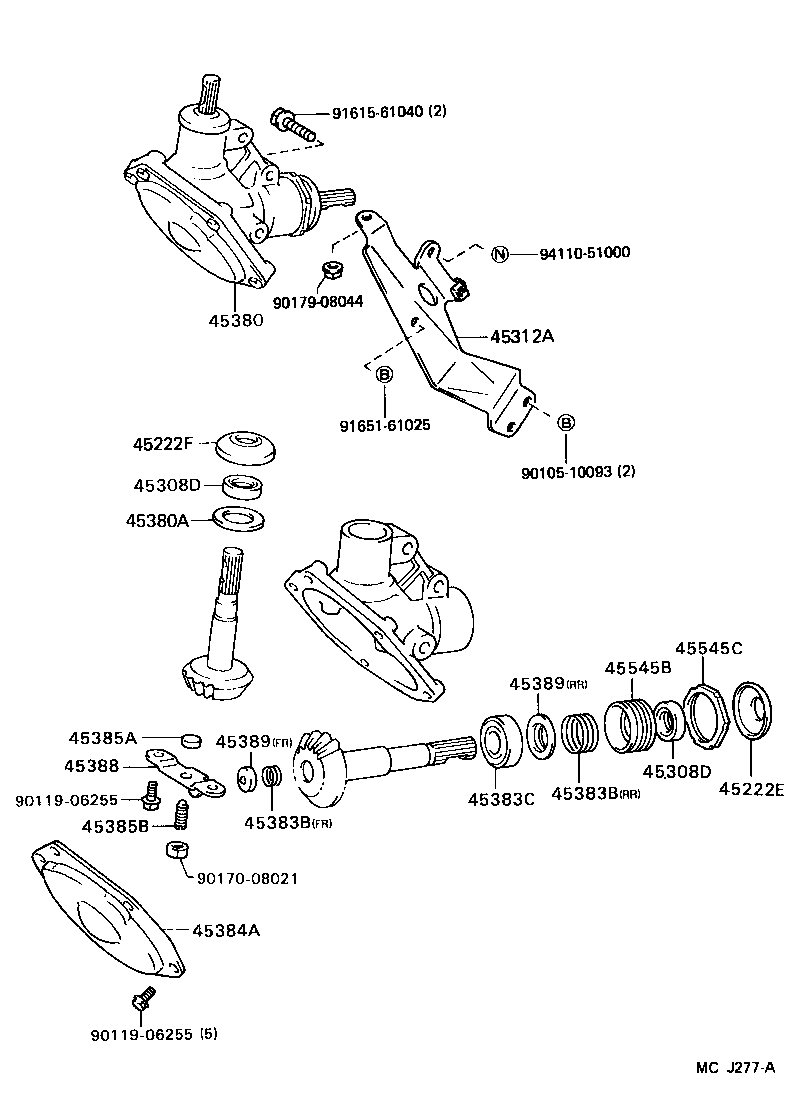

ILLUST NO. 2 OF 2(9206- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
YH53,63 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-27050 |
YH53,63 |
1 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15002 |
YH53,63 |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15002 |
YH53,63 |
2 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-26110 |
YH53,63 |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-27011 |
YH53,63 |
1 | ||
| 45380A - WASHER(FOR STEERING BEVEL GEAR) | ||||
| 90209-18007 |
YH53,63 T=2.15,MARK 7 |
1 | ||
| 90209-18002 |
YH53,63 T=1.90,MARK 2 |
1 | ||
| 90209-18003 |
YH53,63 T=1.95,MARK 3 |
1 | ||
| 90209-18008 |
YH53,63 T=2.20,MARK 8 |
1 | ||
| 90209-18005 |
YH53,63 T=2.05,MARK 5 |
1 | ||
| 90209-18006 |
YH53,63 T=2.10,MARK 6 |
1 | ||
| 90209-18004 |
YH53,63 T=2.00,MARK 4 |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-20080 |
YH53,63 FR |
1 | ||
| 90501-18063 |
YH53,63 RR |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-20080 |
YH53,63 FR |
1 | ||
| 90501-18063 |
YH53,63 RR |
1 | ||
| 45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR) | ||||
| 90363-15010 |
YH53,63 |
1 | ||
| 45384A - COVER, STEERING BEVEL GEAR | ||||
| 45384-27010 |
YH53,63 |
1 | ||
| 45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR) | ||||
| 45385-27010 |
YH53,63 |
1 | ||
| 45385B - BOLT, SET(FOR LOCK BOLT SEAT) | ||||
| 90113-08006 |
YH53,63 |
1 | ||
| 45388 - PLATE, STEERING BEVEL GEAR | ||||
| 45388-27010 |
YH53,63 |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27021 |
YH53,63 RR |
1 | ||
| 45389-27010 |
YH53,63 FR |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27021 |
YH53,63 RR |
1 | ||
| 45389-27010 |
YH53,63 FR |
1 | ||
| 45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR | ||||
| 45545-10010 |
YH53,63 |
1 | ||
| 45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW | ||||
| 90179-38001 |
YH53,63 |
1 | ||
| Common parts | ||||
| 90105-10093 | ||||
| 90119-06255 | ||||
| 90170-08021 | ||||
| 90179-08044 | ||||
| 91615-61040 | ||||
| 91651-61025 | ||||
| 94110-51000 | ||||

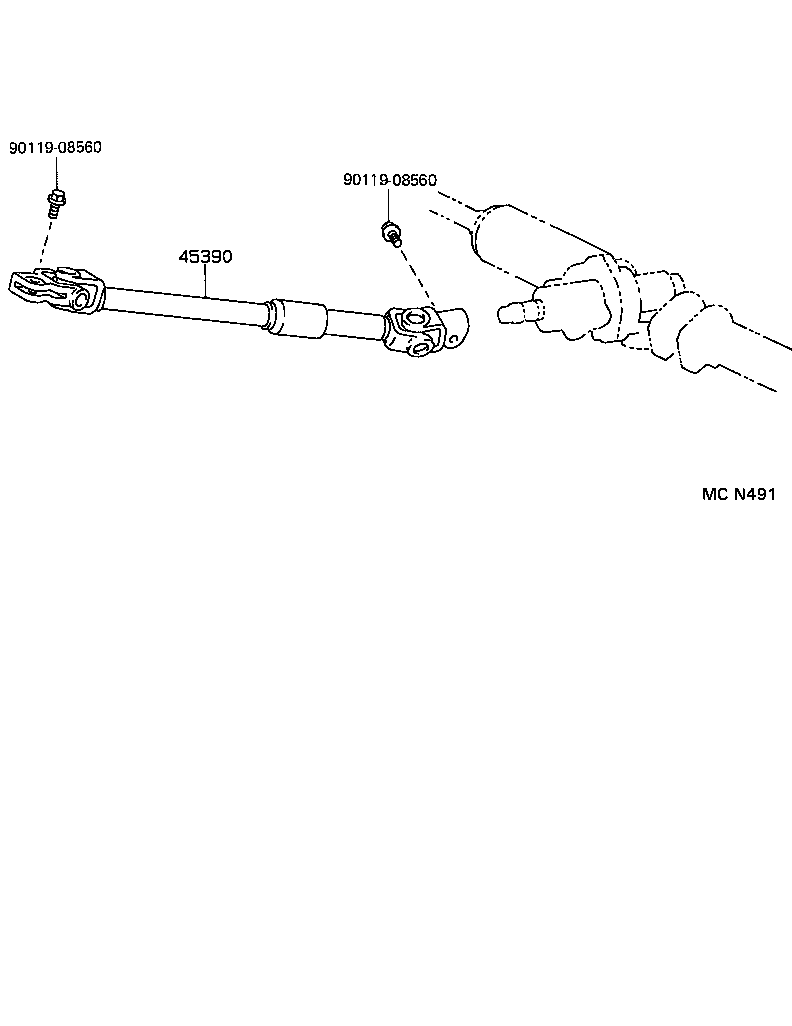

ILLUST NO. 1 OF 2(9206- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-26120 |
YH53,63 |
1 | ||
| 45390-26121 |
YH53,63 |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
