YH63RV-JRBN (1992)

Toyota Hiace Van,Commuter

Production Jun 1992 - Jan 2005
Engine 4Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9206- )

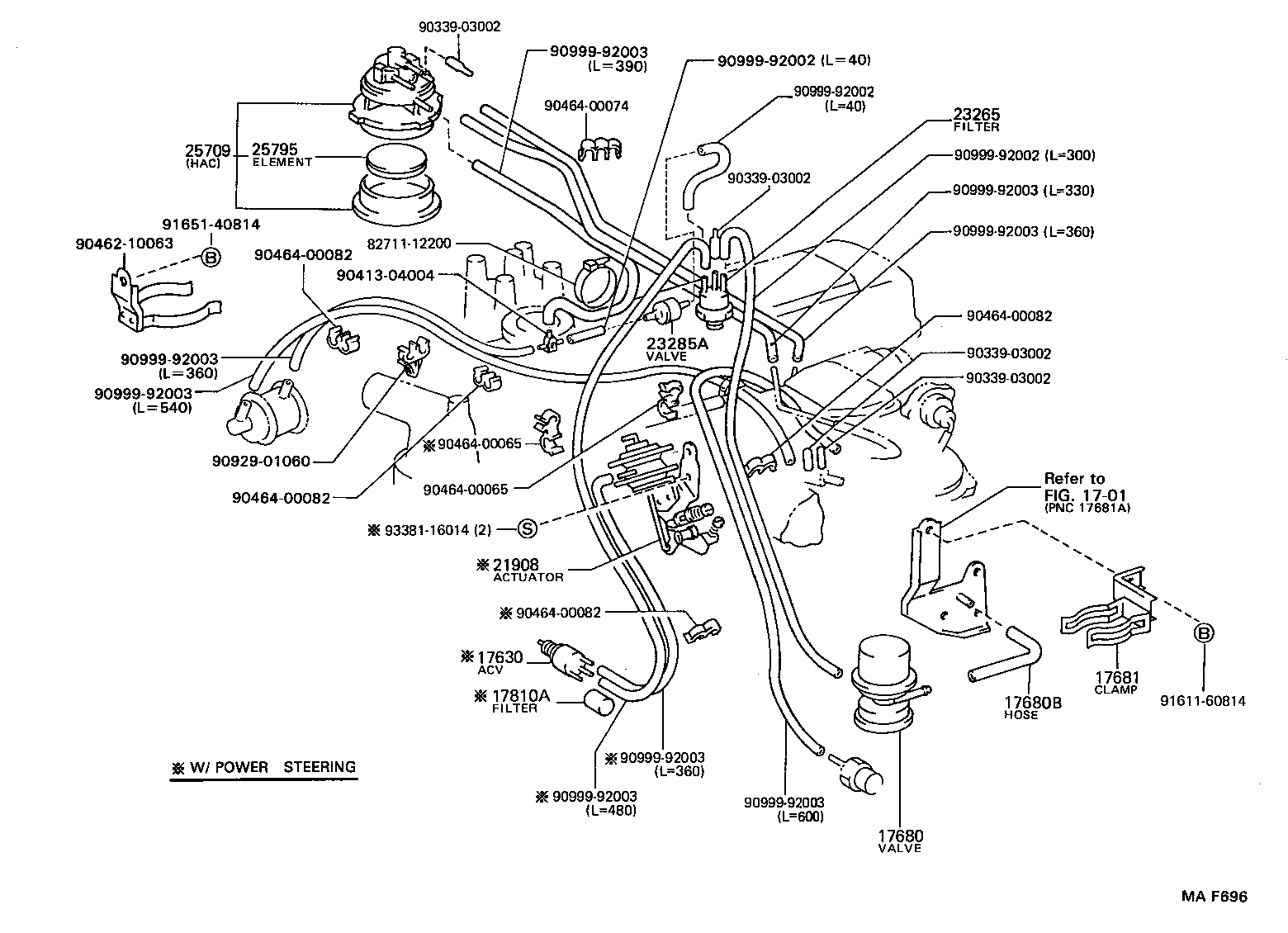

Click highlighted areas on diagram

diagram 1701 17630 17680 17680B 17681 17810A 21908 23265 23285A 25709 25795 8271112200 9033903002 9033903002 9033903002 9033903002 9041304004 9046210063 9046400065 9046400065 9046400074 9046400082 9046400082 9046400082 9046400082 9092901060 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9099992003 9099992003 9099992003 9099992003 9161160814 9165140814 9338116014
Part # Description Qty Price
17680 - VALVE ASSY, MIXTURE CONTROL
17680-73010

4Y..YH53,63,73

 1
17680B - HOSE(FOR MIXTURE CONTROL VALVE)
90910-05198

4Y..YH53,63,73

 1
17681 - BRACKET, MIXTURE CONTROL VALVE
90462-10116

4Y..YH53,63,73

 1
23265 - FILTER, GAS, NO.1
90917-11027

4Y..YH53,63

 1
90917-11024

4Y..YH53,63,73..ARL,SA

 1
Common parts
82711-12200
90339-03002
90413-04004
90462-10063
90464-00065
90464-00074
90464-00082
90929-01060
90999-92002
90999-92003
91611-60814
91651-40814
93381-16014
Linked diagrams
1701
