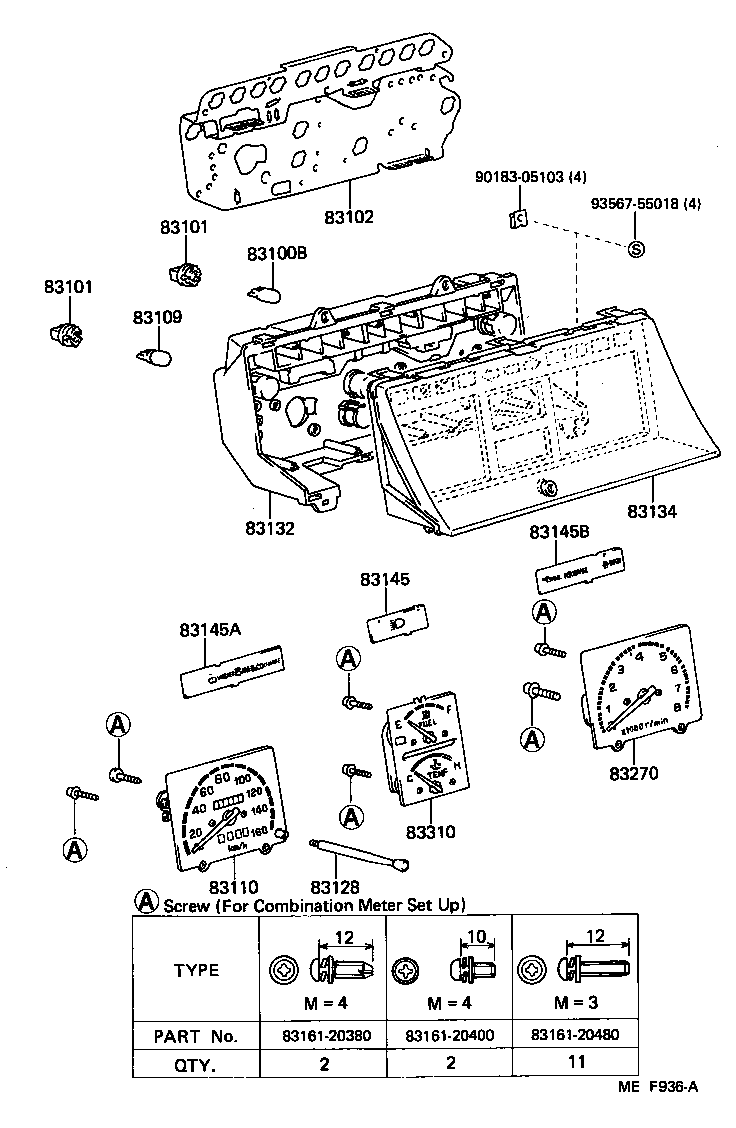

YH61RV-SRBQ (1984)
Toyota Hiace Van,Commuter
(8212-8508) ; (8508- )YH51,61,71 ; (8508-)LH51,61,YH50,53,56,60,63,66..EUR,G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LH5#,6#,7# 12V 1.2W W/O SOCKET,12V 1.4W |
3 | ||
| 99132-12034 |
LH5#,6#,7#,YH5#,6#,7# 12V 3.4W,12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH5#,6#,7#,YH5#,6#,7# BULB:12V 3.4W |
14 | ||
| 83101-14040 |
LH5#,6#,7# BULB:12V 1.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH5#,6#,7#,YH5#,6#,7# BULB:12V 3.4W |
14 | ||
| 83101-14040 |
LH5#,6#,7# BULB:12V 1.4W |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95J09 |
YH51..N1;YH51..4H..ARL;YH50,6#,71..ARL,EUR,GEN |
1 | ||
| 83247-95J10 |
LH5#,6#,7# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95J02 |
YH50,61,71..ARL KM |
1 | ||
| 83110-95J16 |
YH61,71..ARL;YH51..4H..ARL KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95J01 |
LH5#,6#,7# |
1 | ||
| 83134-95J00 |
YH50,51,53,60,61,63,7# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J01 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95J12 |
LH50,51,60,61,7#,YH50,61,71..ARL |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95J13 |
YH51..4H..ARL;LH5#,6#,7#,YH50,61,71..ARL |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95J14 |
YH61,71..ARL;YH51..4H..ARL BLIND |
1 | ||
| 83145-95J14 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN BLIND |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95J14 |
YH61,71..ARL;YH51..4H..ARL BLIND |
1 | ||
| 83145-95J14 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN BLIND |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95J07 |
YH50,61,71..ARL |
1 | ||
| 83243-95J08 |
LH5#,6#,7#..ARL |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 90183-05103 | ||||
| 93567-55018 | ||||
(8508- )LH51,61,71..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LH5#,6#,7# 12V 1.2W W/O SOCKET,12V 1.4W |
3 | ||
| 99132-12034 |
LH5#,6#,7#,YH5#,6#,7# 12V 3.4W,12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH5#,6#,7#,YH5#,6#,7# BULB:12V 3.4W |
14 | ||
| 83101-14040 |
LH5#,6#,7# BULB:12V 1.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH5#,6#,7#,YH5#,6#,7# BULB:12V 3.4W |
14 | ||
| 83101-14040 |
LH5#,6#,7# BULB:12V 1.4W |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95J09 |
YH51..N1;YH51..4H..ARL;YH50,6#,71..ARL,EUR,GEN |
1 | ||
| 83247-95J10 |
LH5#,6#,7# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95J02 |
YH50,61,71..ARL KM |
1 | ||
| 83110-95J16 |
YH61,71..ARL;YH51..4H..ARL KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95J00 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95J01 |
LH5#,6#,7# |
1 | ||
| 83134-95J00 |
YH50,51,53,60,61,63,7# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J01 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95J12 |
LH50,51,60,61,7#,YH50,61,71..ARL |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95J13 |
YH51..4H..ARL;LH5#,6#,7#,YH50,61,71..ARL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95J07 |
YH50,61,71..ARL |
1 | ||
| 83243-95J08 |
LH5#,6#,7#..ARL |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83161-20480 | ||||
| 90183-05103 | ||||
| 93567-55018 | ||||
