YH61RV-QRBQ (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Aug 1986
Engine 3Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )L,2L

Click highlighted areas on diagram

diagram 16100 16171 16210 16241 16271 16371 9011908108 9017906070
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79035

2Y#,3Y,4Y..YH5#,6#,71

 1
16171 - SEAT, WATER PUMP PULLEY
16171-54011

L,2L..LH5#,6#,7#

 1
16210 - COUPLING ASSY, FLUID
16210-31010

3Y..YH51..MTM;3Y..YH51..4HC..(EUR,SA);2Y#,3Y..YH50,6#,71..ARL,EUR,SA

 1
16210-54070

L,2L..LH5#,6#,7#

 1
16210-31010

3Y..YH51..4HC..SA;3Y..YH61,71..ARL,SA;3Y..YH51..RHD..V4D..(4FC,4H,5F,5H)

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-13020

L,2L..LH5#,6#,7#

 4
16192-70010

2Y#,3Y,4Y..YH5#,6#,71

 4
16271 - GASKET, WATER PUMP
16271-54012

L,2L..LH5#,6#,7#

 1
16371 - PULLEY, FAN
16371-71010

2Y#,3Y,4Y..YH5#,6#,71

 1
16371-54020

L,2L..LH5#,6#,7#

 1
Common parts
90119-08108
90179-06070

(8212- )2Y#,3Y,4Y

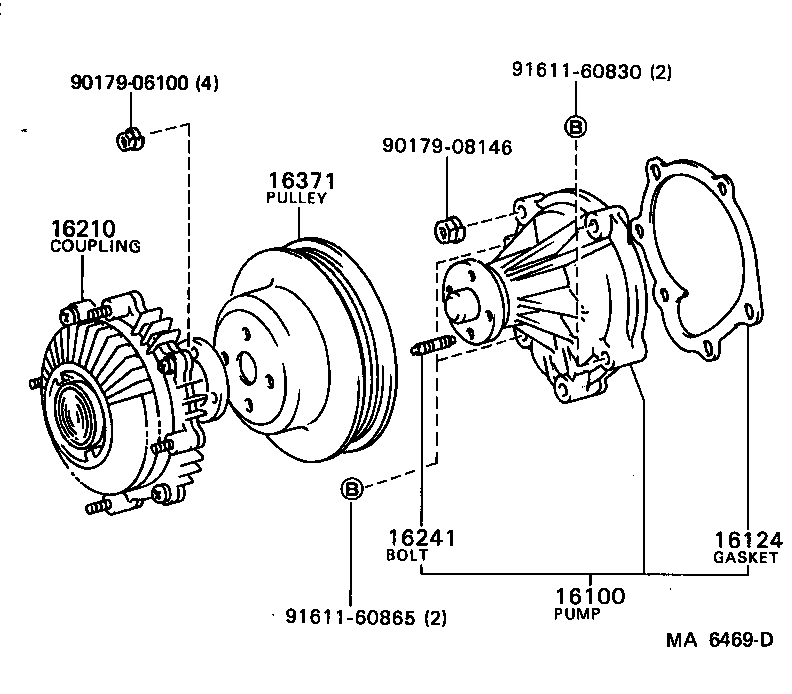

Click highlighted areas on diagram

diagram 16100 16124 16210 16241 16371 9017906100 9017908146 9161160830 9161160865
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79035

2Y#,3Y,4Y..YH5#,6#,71

 1
16124 - GASKET, WATER PUMP COVER
16124-71010

2Y#,3Y,4Y..YH5#,6#,71

 1
16210 - COUPLING ASSY, FLUID
16210-31010

3Y..YH51..MTM;3Y..YH51..4HC..(EUR,SA);2Y#,3Y..YH50,6#,71..ARL,EUR,SA

 1
16210-54070

L,2L..LH5#,6#,7#

 1
16210-31010

3Y..YH51..4HC..SA;3Y..YH61,71..ARL,SA;3Y..YH51..RHD..V4D..(4FC,4H,5F,5H)

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-13020

L,2L..LH5#,6#,7#

 4
16192-70010

2Y#,3Y,4Y..YH5#,6#,71

 4
16371 - PULLEY, FAN
16371-71010

2Y#,3Y,4Y..YH5#,6#,71

 1
16371-54020

L,2L..LH5#,6#,7#

 1
Common parts
90179-06100
90179-08146
91611-60830
91611-60865
