YH61RV-QRBFQ (1982)
Toyota Hiace Van,Commuter
Production
Dec 1982
-
Aug 1986
Engine
3Y
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8212-8508)2Y,3Y

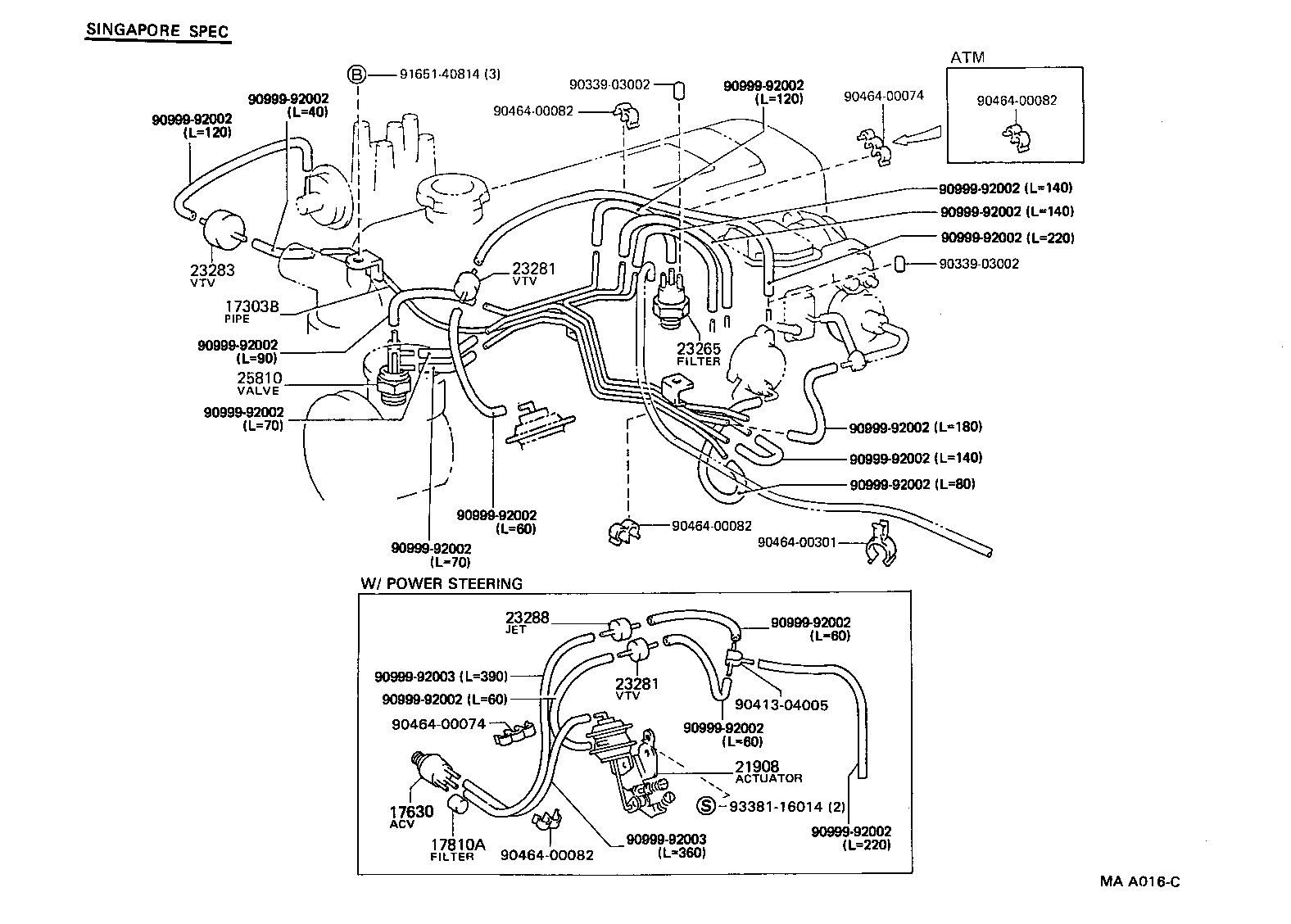

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14104 |
3Y..YH51..4HC..(03S,06S,09S)..N1;3Y..YH51..(4FC,4H,5F,5H)..(ARL,EUR);2Y#,3Y,4Y..YH50,53,56,6#,71..ARL,EUR |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71010 |
2Y#,3Y..YH50,6#,71..ARL,EUR |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90464-00065 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00301 | ||||
| 90929-01060 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91615-40816 | ||||
| 91651-40814 | ||||
| 93381-16014 | ||||
| 96132-30800 | ||||
(8508-8608)2Y,3Y

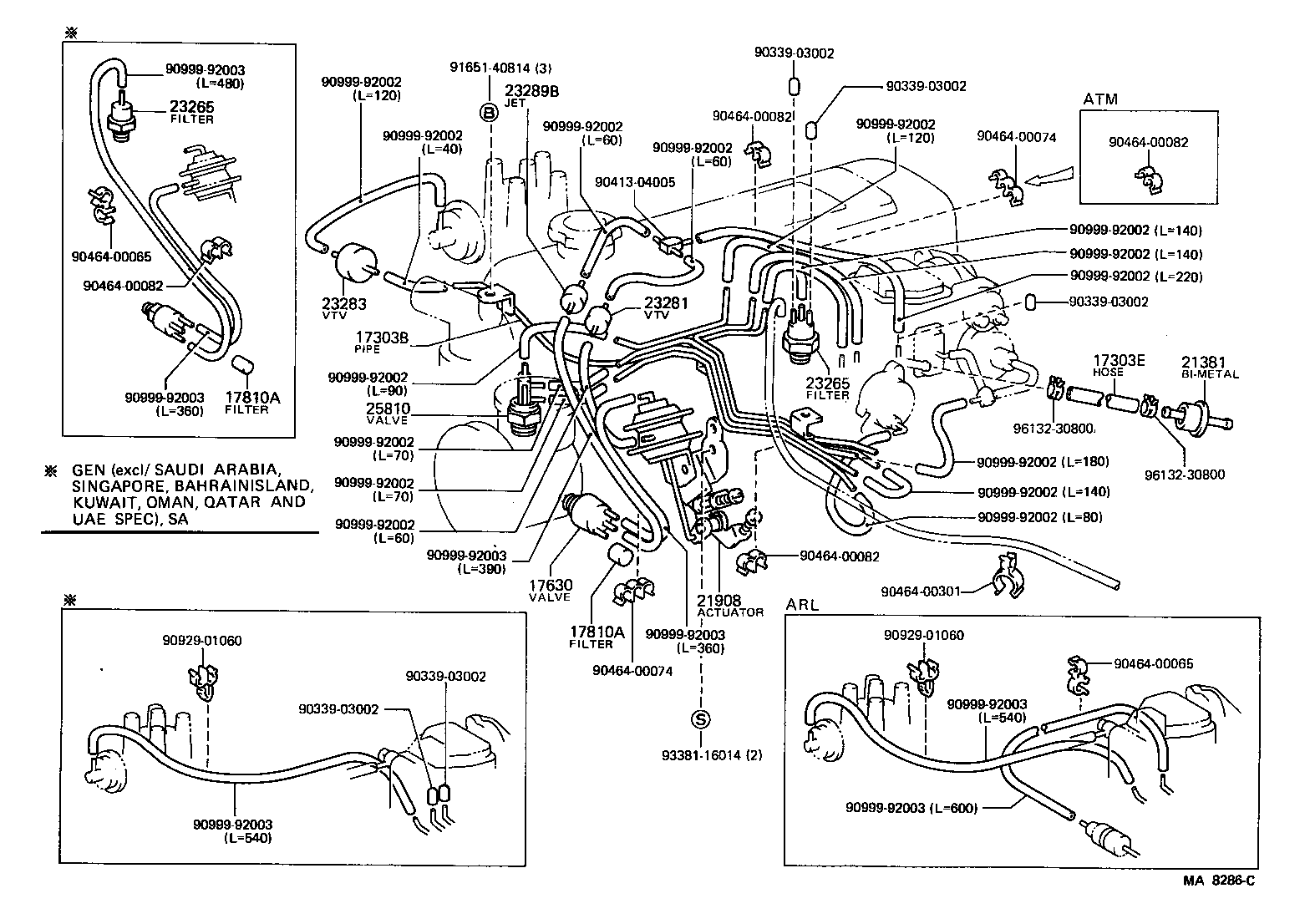

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14104 |
3Y..YH51..4HC..(03S,06S,09S)..N1;3Y..YH51..(4FC,4H,5F,5H)..(ARL,EUR);2Y#,3Y,4Y..YH50,53,56,6#,71..ARL,EUR |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71010 |
2Y#,3Y..YH50,6#,71..ARL,EUR |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00065 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00301 | ||||
| 90929-01060 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
| 93381-16014 | ||||
| 96132-30800 | ||||
(8212- )2Y#,3Y,4Y

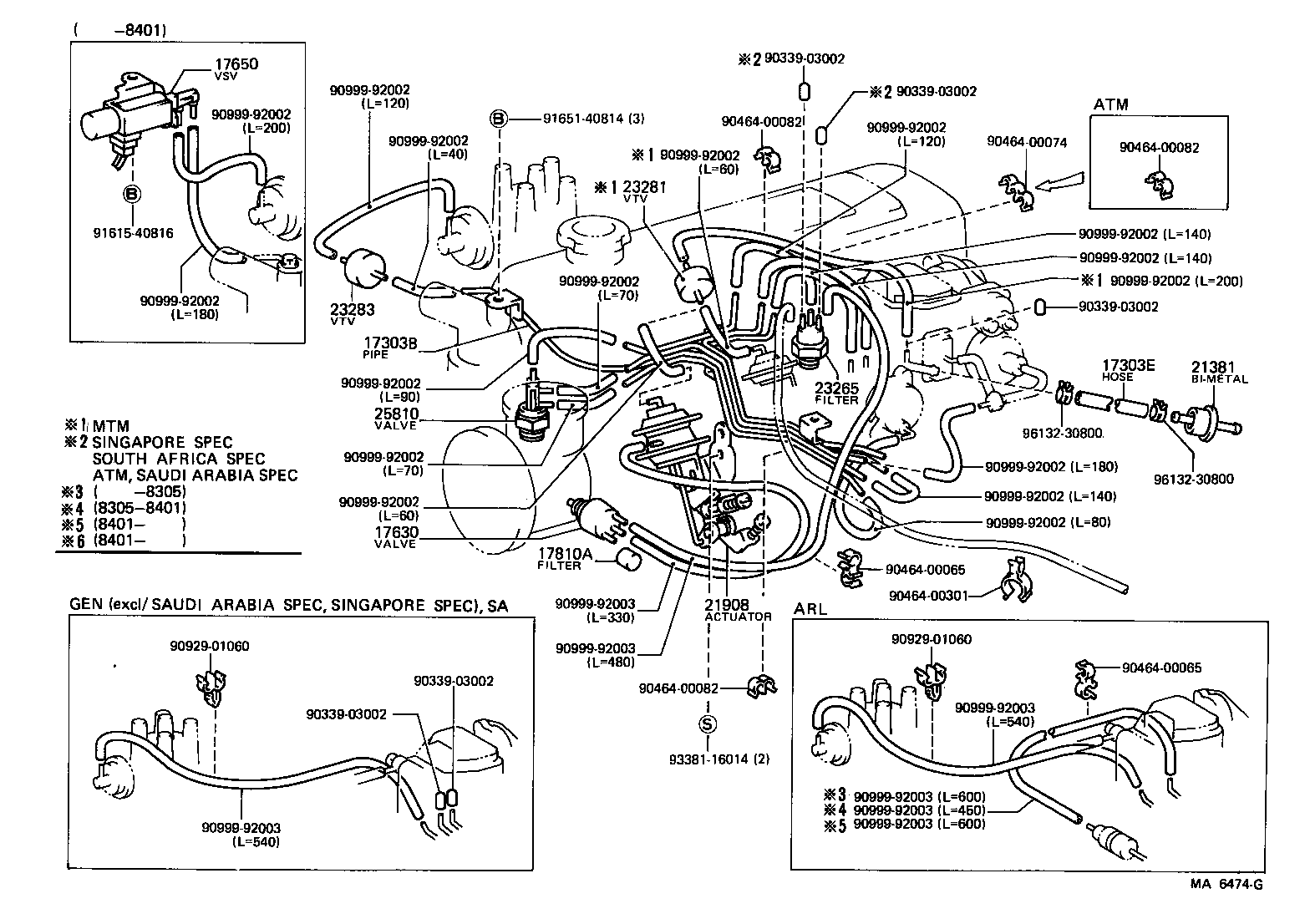

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
(8708-8908)3Y..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00301 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
| 93381-16014 | ||||
(8708-8910)3Y,4Y ; (8808-9206)2Y
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90339-03002 | ||||
| 90464-00065 | ||||
| 90464-00082 | ||||
| 90929-01060 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-60814 | ||||
| 93381-16014 | ||||
| Linked diagrams | ||||
| 1701 | ||||
