YH61RB-SR (1987)
Toyota Hiace Van,Commuter
ILLUST NO. 1 OF 2(8708- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30230 |
LH51,61,71 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95J02 |
LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN) |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95J02 |
LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN) |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95J10 |
YH5#,6#,73 |
1 | ||
| 87245-95J40 |
LH51,61,71 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95J10 |
YH5#,6#,73 |
1 | ||
| 87245-95J40 |
LH51,61,71 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-95J27 |
LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN) |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-95J27 |
LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95J42 |
LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95J42 |
LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN) |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95J26 |
LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN) |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95J26 |
LH51,61,71,YH5#,61,63,73..RHD..(ARL,GEN) |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95J13 |
LH51,61,71 |
1 | ||
| 87245-95J12 |
YH5#,60,61,73 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95J13 |
LH51,61,71 |
1 | ||
| 87245-95J12 |
YH5#,60,61,73 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-95J62 |
LH51,61..RHD..COM |
1 | ||
| 87248-95J58 |
LH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87208-28010 |
YH5#,60,61,73 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-95J62 |
LH51,61..RHD..COM |
1 | ||
| 87248-95J58 |
LH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87208-28010 |
YH5#,60,61,73 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-95J62 |
LH51,61..RHD..COM |
1 | ||
| 87248-95J58 |
LH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87208-28010 |
YH5#,60,61,73 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-95J56 |
YH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87248-95J66 |
LH51,61..COM |
1 | ||
| 87248-95J60 |
YH51,61..RHD..COM |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-95J56 |
YH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87248-95J66 |
LH51,61..COM |
1 | ||
| 87248-95J60 |
YH51,61..RHD..COM |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-95J55 |
YH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87248-95J57 |
LH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87248-95J59 |
YH51,61..RHD..COM |
1 | ||
| 87248-95J61 |
LH51,61..RHD..COM |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-95J55 |
YH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87248-95J57 |
LH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87248-95J59 |
YH51,61..RHD..COM |
1 | ||
| 87248-95J61 |
LH51,61..RHD..COM |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-95J55 |
YH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87248-95J57 |
LH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87248-95J59 |
YH51,61..RHD..COM |
1 | ||
| 87248-95J61 |
LH51,61..RHD..COM |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-95J55 |
YH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87248-95J57 |
LH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87248-95J59 |
YH51,61..RHD..COM |
1 | ||
| 87248-95J61 |
LH51,61..RHD..COM |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87208-28021 |
YH5#,6#,73 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
LH51,61,71 |
1 | ||
| 87251B - PLUG, HEATER WATER | ||||
| 90339-16007 |
LH51,61..GEN |
2 | ||
| 90339-16007 |
LH51,61,YH51,61..GEN |
2 | ||
| 90339-16001 |
LH51,61..GEN |
2 | ||
| 87251B - PLUG, HEATER WATER | ||||
| 90339-16007 |
LH51,61..GEN |
2 | ||
| 90339-16007 |
LH51,61,YH51,61..GEN |
2 | ||
| 90339-16001 |
LH51,61..GEN |
2 | ||
| 87251B - PLUG, HEATER WATER | ||||
| 90339-16007 |
LH51,61..GEN |
2 | ||
| 90339-16007 |
LH51,61,YH51,61..GEN |
2 | ||
| 90339-16001 |
LH51,61..GEN |
2 | ||
| 87251B - PLUG, HEATER WATER | ||||
| 90339-16007 |
LH51,61..GEN |
2 | ||
| 90339-16007 |
LH51,61,YH51,61..GEN |
2 | ||
| 90339-16001 |
LH51,61..GEN |
2 | ||
| 87263 - BRACKET, HEATER WATER PIPE, NO.1 | ||||
| 87263-28011 |
YH5#,60,61,73 |
1 | ||
| Common parts | ||||
| 11493-71010 | ||||
| 17175-72010 | ||||
| 87124-28030 | ||||
| 87124-90B00 | ||||
| 87436-95J04 | ||||
| 87436-95J05 | ||||
| 90179-08123 | ||||
| 90179-08146 | ||||
| 90461-08157 | ||||
| 90461-08573 | ||||
| 91611-60835 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 93315-15010 | ||||
| 96112-10250 | ||||
| 96112-10270 | ||||

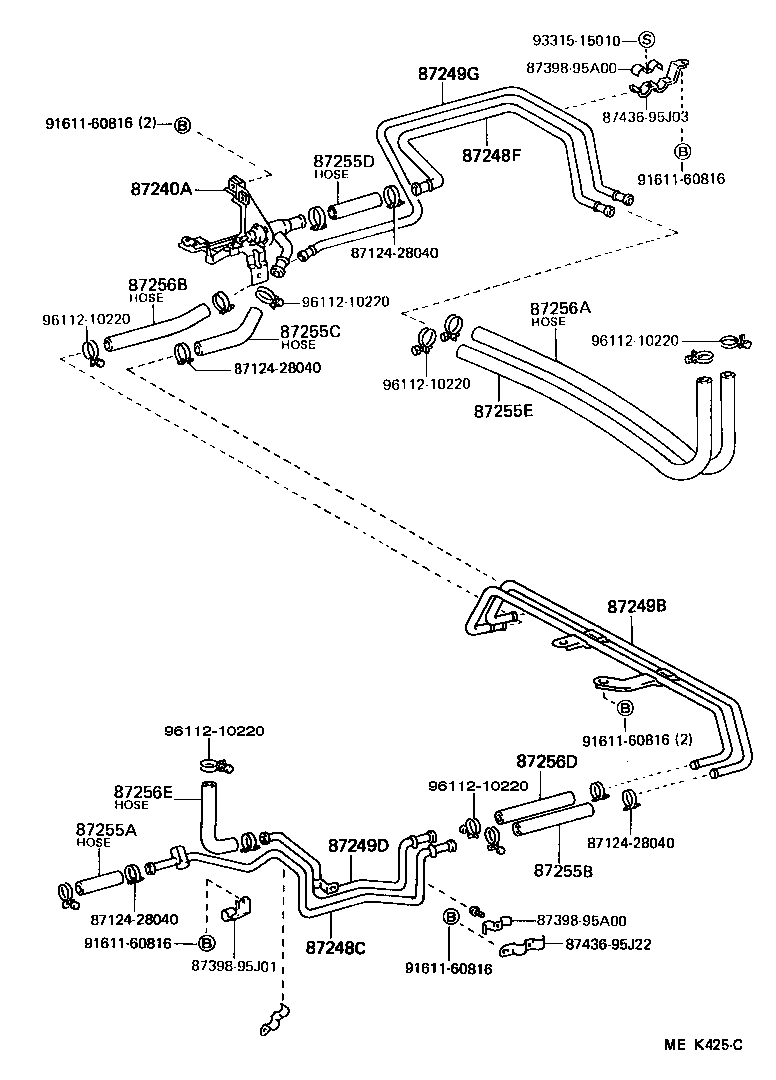

ILLUST NO. 2 OF 2(8708-8908)YH51,61..RHD..COM
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J00 |
LH51,61,YH51,61..RHD..COM |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-95J63 |
YH51,61..COM |
1 | ||
| 87248F - PIPE, HEATER WATER INLET, F | ||||
| 87248-95J05 |
LH51,61,YH51,61..RHD..COM |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87208-95J13 |
LH51,61,YH51,61..RHD..COM |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-95J64 |
YH51,61..COM |
1 | ||
| 87249G - PIPE, HEATER WATER OUTLET, G | ||||
| 87248-95J04 |
LH51,61,YH51,61..RHD..COM |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
LH51,61,YH51,61..COM L=200 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20300 |
LH51,61,YH51,61..RHD..COM L=300 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 99556-20200 |
LH51,61,YH51,61..RHD..COM L=200 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 99556-20100 |
LH51,61,YH51,61..COM L=100 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20700 |
LH61,YH61..RHD..15S *H,L=540 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99556-20700 |
LH61,YH61..RHD..15S *H,L=540 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20200 |
LH51,61,YH51,61..RHD..COM L=200 |
1 | ||
| 87256D - HOSE, REAR HEATER WATER OUTLET, D | ||||
| 99556-20300 |
LH51,61,YH51,61..RHD..COM L=300 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-20200 |
LH51,61..COM L=200 |
1 | ||
| 87245-95J15 |
YH51,61..COM |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 87398-95A00 | ||||
| 87398-95J01 | ||||
| 87436-95J03 | ||||
| 87436-95J22 | ||||
| 91611-60816 | ||||
| 93315-15010 | ||||
| 96112-10220 | ||||
| 96112-10270 | ||||

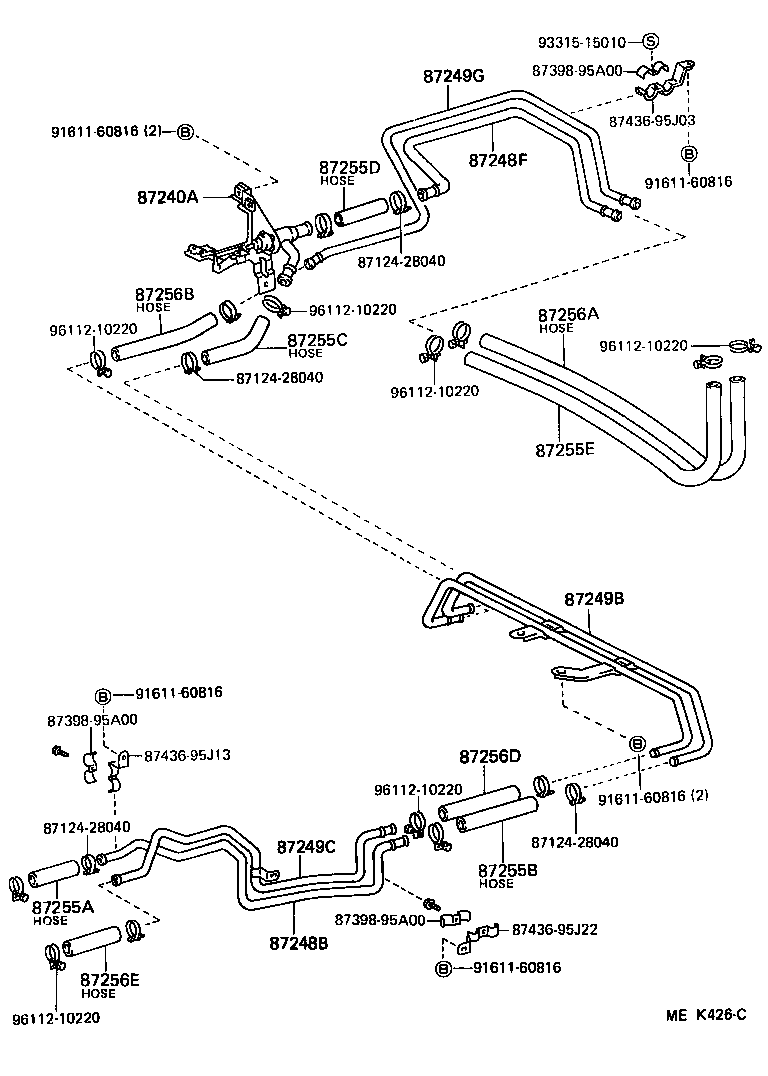

ILLUST NO. 2 OF 2(8708-8908)LH51,61..RHD..COM
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J00 |
LH51,61,YH51,61..RHD..COM |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-95J56 |
YH51,61..RHD..COM W(RR HEATER) |
1 | ||
| 87248-95J66 |
LH51,61..COM |
1 | ||
| 87248-95J60 |
YH51,61..RHD..COM |
1 | ||
| 87248F - PIPE, HEATER WATER INLET, F | ||||
| 87248-95J05 |
LH51,61,YH51,61..RHD..COM |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87208-95J13 |
LH51,61,YH51,61..RHD..COM |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-95J65 |
LH51,61..COM |
1 | ||
| 87249G - PIPE, HEATER WATER OUTLET, G | ||||
| 87248-95J04 |
LH51,61,YH51,61..RHD..COM |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
LH51,61,YH51,61..COM L=200 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20300 |
LH51,61,YH51,61..RHD..COM L=300 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 99556-20200 |
LH51,61,YH51,61..RHD..COM L=200 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 99556-20100 |
LH51,61,YH51,61..COM L=100 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20700 |
LH61,YH61..RHD..15S *H,L=540 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99556-20700 |
LH61,YH61..RHD..15S *H,L=540 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20200 |
LH51,61,YH51,61..RHD..COM L=200 |
1 | ||
| 87256D - HOSE, REAR HEATER WATER OUTLET, D | ||||
| 99556-20300 |
LH51,61,YH51,61..RHD..COM L=300 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-20200 |
LH51,61..COM L=200 |
1 | ||
| 87245-95J15 |
YH51,61..COM |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 87398-95A00 | ||||
| 87436-95J03 | ||||
| 87436-95J13 | ||||
| 87436-95J22 | ||||
| 91611-60816 | ||||
| 93315-15010 | ||||
| 96112-10220 | ||||
