YH61RB-SR (1987)
Toyota Hiace Van,Commuter
ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95J23 |
LH51,61..4HC |
1 | ||
| 83710-95J19 |
YH53,61,63..ATM |
1 | ||
| Common parts | ||||
| 83791-95J00 | ||||
| 83791-95J03 | ||||
| 83791-95J05 | ||||
| 90461-10595 | ||||
| 90461-10597 | ||||
| 91611-60816 | ||||
ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-95J04 |
LH51,61,71,YH5#,61,63,73..STD..(ARL,GEN) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J04 |
LH51,61,71,YH5#,61,63,73..STD..(ARL,GEN) |
1 | ||
| 83911C - ORNAMENT, CLOCK | ||||
| 83911-95J0303 |
LH51,61,YH5#,61,63..SRF..STD..(ARL,GEN) GRAY,TRIM4# |
1 | ||
| 83915 - BRACKET, CLOCK | ||||
| 83915-95J00 |
LH51,61,71,YH5#,61,63,73..STD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90159-40071 | ||||
| 93249-25010 | ||||
| Linked diagrams | ||||
| 6452 | ||||

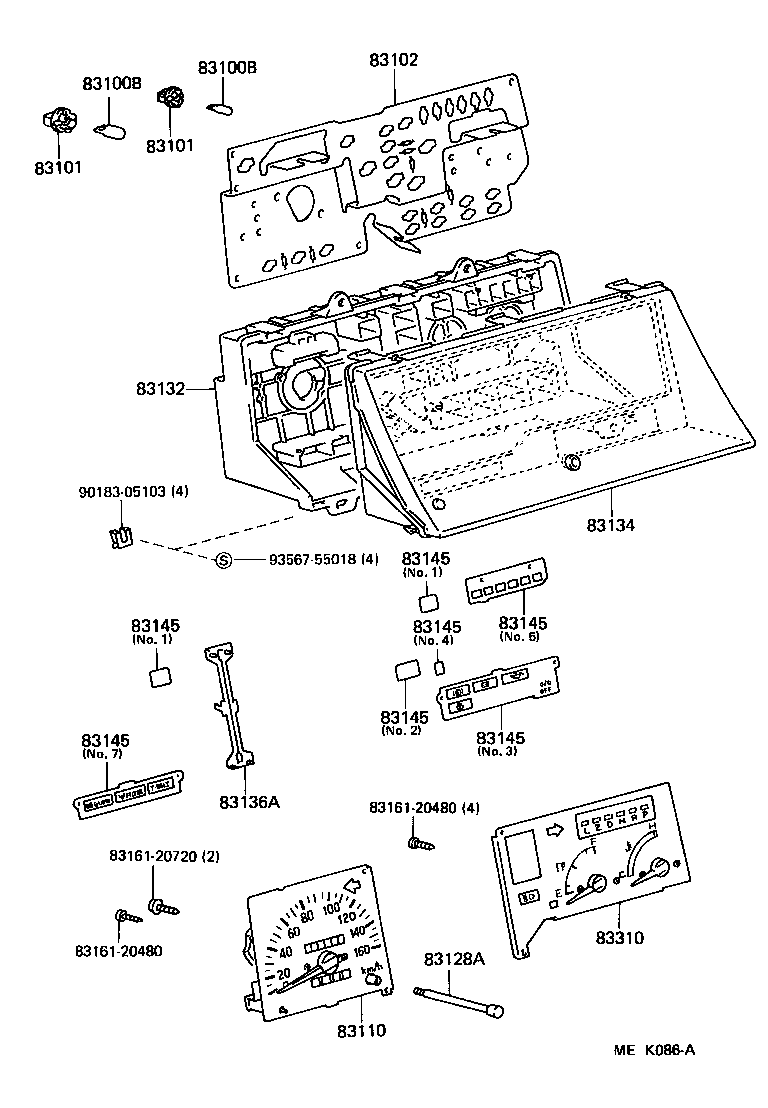

ILLUST NO. 1 OF 3(8708- )YH53,63,73..ARL,GEN ; (8708- )LH51,61,YH51,61..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LH51,61..GEN;YH53,63,73..MTM..ARL 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
8 | ||
| 83109-24030 |
YH53,63,73;LH51,61,YH51,61..GEN 12V3.4W W(GREEN CAP),SOCKET:83101-20070 |
3 | ||
| 90981-11018 |
YH61,63..4HC..GEN 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
12 | ||
| 90981-11018 |
LH51,61..4HC 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
10 | ||
| 99132-12034 |
YH53,63,73;LH51,61,YH51,61..GEN 12V 3.4W,SOCKET:83101-20040 |
2 | ||
| 99132-12034 |
YH53,61,63..ATM..(ARL,GEN) 12V 3.4W,SOCKET:83101-20040 |
5 | ||
| 84999-30020 |
LH51,61..4HC;YH53..4HC..SA 12V 1.4W |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LH51,61..GEN;YH53,63,73..MTM..ARL 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
8 | ||
| 83109-24030 |
YH53,63,73;LH51,61,YH51,61..GEN 12V3.4W W(GREEN CAP),SOCKET:83101-20070 |
3 | ||
| 90981-11018 |
YH61,63..4HC..GEN 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
12 | ||
| 90981-11018 |
LH51,61..4HC 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
10 | ||
| 99132-12034 |
YH53,63,73;LH51,61,YH51,61..GEN 12V 3.4W,SOCKET:83101-20040 |
2 | ||
| 99132-12034 |
YH53,61,63..ATM..(ARL,GEN) 12V 3.4W,SOCKET:83101-20040 |
5 | ||
| 84999-30020 |
LH51,61..4HC;YH53..4HC..SA 12V 1.4W |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
YH53,63,73;LH51,61,YH51,61..GEN BULB:83109-24030 |
3 | ||
| 83101-14040 |
YH61,63..4HC..GEN BULB:90981-11018 |
12 | ||
| 83101-14040 |
LH51,61..4HC BULB:90981-11018 |
10 | ||
| 83101-20040 |
YH53,63,73;LH51,61,YH51,61..GEN BULB:99132-12034 |
2 | ||
| 83101-14040 |
LH51,61..GEN;YH53,63,73..MTM..ARL BULB:90981-11018 |
8 | ||
| 83101-20040 |
YH53,61,63..ATM..(ARL,GEN) BULB:99132-12034 |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
YH53,63,73;LH51,61,YH51,61..GEN BULB:83109-24030 |
3 | ||
| 83101-14040 |
YH61,63..4HC..GEN BULB:90981-11018 |
12 | ||
| 83101-14040 |
LH51,61..4HC BULB:90981-11018 |
10 | ||
| 83101-20040 |
YH53,63,73;LH51,61,YH51,61..GEN BULB:99132-12034 |
2 | ||
| 83101-14040 |
LH51,61..GEN;YH53,63,73..MTM..ARL BULB:90981-11018 |
8 | ||
| 83101-20040 |
YH53,61,63..ATM..(ARL,GEN) BULB:99132-12034 |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95J30 |
LH51,61..4HC NO.1 |
1 | ||
| 83247-95J27 |
LH51,61..4HC NO.2 |
1 | ||
| 83247-95J47 |
YH61,63..4HC..GEN |
1 | ||
| 83247-95J48 |
LH51,61..GEN |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95J59 |
LH51,61..GEN KM/MPH |
1 | ||
| 83110-95J52 |
YH51,61 KM/MPH |
1 | ||
| 83110-95J62 |
LH51,61..GEN |
1 | ||
| 83110-95J55 |
YH5#,6#..STD..(GEN,SA) |
1 | ||
| 83110-95J66 |
LH51,61..4HC |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-89130 |
LH51,61,71,YH5#,6#,73 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J09 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95J16 |
YH53..05S;YH5#,6#,73..STD |
1 | ||
| 83134-95J17 |
LH51,61..GEN |
1 | ||
| 83136A - COVER, COMBINATION METER | ||||
| 83136-95J04 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J69 |
LH51,61..4HC NO.5 |
1 | ||
| 83145-95J37 |
LH51,61..4HC NO.6 |
1 | ||
| 83145-95J65 |
YH53,6#..ATM NO.5 |
1 | ||
| 83145-95J66 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.1 |
2 | ||
| 83145-95J63 |
LH51,61..GEN NO.7 |
1 | ||
| 83145-95J67 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.2 |
1 | ||
| 83145-95J68 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.4 |
1 | ||
| 83145-95J57 |
YH61,63..4HC..GEN NO.3 |
1 | ||
| 83145-95N02 |
YH53,61,63..ATM..(ARL,GEN) NO.5 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J69 |
LH51,61..4HC NO.5 |
1 | ||
| 83145-95J37 |
LH51,61..4HC NO.6 |
1 | ||
| 83145-95J65 |
YH53,6#..ATM NO.5 |
1 | ||
| 83145-95J66 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.1 |
2 | ||
| 83145-95J63 |
LH51,61..GEN NO.7 |
1 | ||
| 83145-95J67 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.2 |
1 | ||
| 83145-95J68 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.4 |
1 | ||
| 83145-95J57 |
YH61,63..4HC..GEN NO.3 |
1 | ||
| 83145-95N02 |
YH53,61,63..ATM..(ARL,GEN) NO.5 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J69 |
LH51,61..4HC NO.5 |
1 | ||
| 83145-95J37 |
LH51,61..4HC NO.6 |
1 | ||
| 83145-95J65 |
YH53,6#..ATM NO.5 |
1 | ||
| 83145-95J66 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.1 |
2 | ||
| 83145-95J63 |
LH51,61..GEN NO.7 |
1 | ||
| 83145-95J67 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.2 |
1 | ||
| 83145-95J68 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.4 |
1 | ||
| 83145-95J57 |
YH61,63..4HC..GEN NO.3 |
1 | ||
| 83145-95N02 |
YH53,61,63..ATM..(ARL,GEN) NO.5 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J69 |
LH51,61..4HC NO.5 |
1 | ||
| 83145-95J37 |
LH51,61..4HC NO.6 |
1 | ||
| 83145-95J65 |
YH53,6#..ATM NO.5 |
1 | ||
| 83145-95J66 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.1 |
2 | ||
| 83145-95J63 |
LH51,61..GEN NO.7 |
1 | ||
| 83145-95J67 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.2 |
1 | ||
| 83145-95J68 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.4 |
1 | ||
| 83145-95J57 |
YH61,63..4HC..GEN NO.3 |
1 | ||
| 83145-95N02 |
YH53,61,63..ATM..(ARL,GEN) NO.5 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J69 |
LH51,61..4HC NO.5 |
1 | ||
| 83145-95J37 |
LH51,61..4HC NO.6 |
1 | ||
| 83145-95J65 |
YH53,6#..ATM NO.5 |
1 | ||
| 83145-95J66 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.1 |
2 | ||
| 83145-95J63 |
LH51,61..GEN NO.7 |
1 | ||
| 83145-95J67 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.2 |
1 | ||
| 83145-95J68 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.4 |
1 | ||
| 83145-95J57 |
YH61,63..4HC..GEN NO.3 |
1 | ||
| 83145-95N02 |
YH53,61,63..ATM..(ARL,GEN) NO.5 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J69 |
LH51,61..4HC NO.5 |
1 | ||
| 83145-95J37 |
LH51,61..4HC NO.6 |
1 | ||
| 83145-95J65 |
YH53,6#..ATM NO.5 |
1 | ||
| 83145-95J66 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.1 |
2 | ||
| 83145-95J63 |
LH51,61..GEN NO.7 |
1 | ||
| 83145-95J67 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.2 |
1 | ||
| 83145-95J68 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.4 |
1 | ||
| 83145-95J57 |
YH61,63..4HC..GEN NO.3 |
1 | ||
| 83145-95N02 |
YH53,61,63..ATM..(ARL,GEN) NO.5 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J69 |
LH51,61..4HC NO.5 |
1 | ||
| 83145-95J37 |
LH51,61..4HC NO.6 |
1 | ||
| 83145-95J65 |
YH53,6#..ATM NO.5 |
1 | ||
| 83145-95J66 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.1 |
2 | ||
| 83145-95J63 |
LH51,61..GEN NO.7 |
1 | ||
| 83145-95J67 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.2 |
1 | ||
| 83145-95J68 |
YH53..05S;YH53,63,73..STD;LH51,61,YH51,60,61..GEN,SA NO.4 |
1 | ||
| 83145-95J57 |
YH61,63..4HC..GEN NO.3 |
1 | ||
| 83145-95N02 |
YH53,61,63..ATM..(ARL,GEN) NO.5 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95J28 |
YH6#..4HC..GEN |
1 | ||
| 83243-95N03 |
YH61,63..4HC..GEN |
1 | ||
| Common parts | ||||
| 83161-20480 | ||||
| 83161-20720 | ||||
| 90183-05103 | ||||
| 93567-55018 | ||||
