YH61RB-SR (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 3Y
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2Y,3Y,4Y

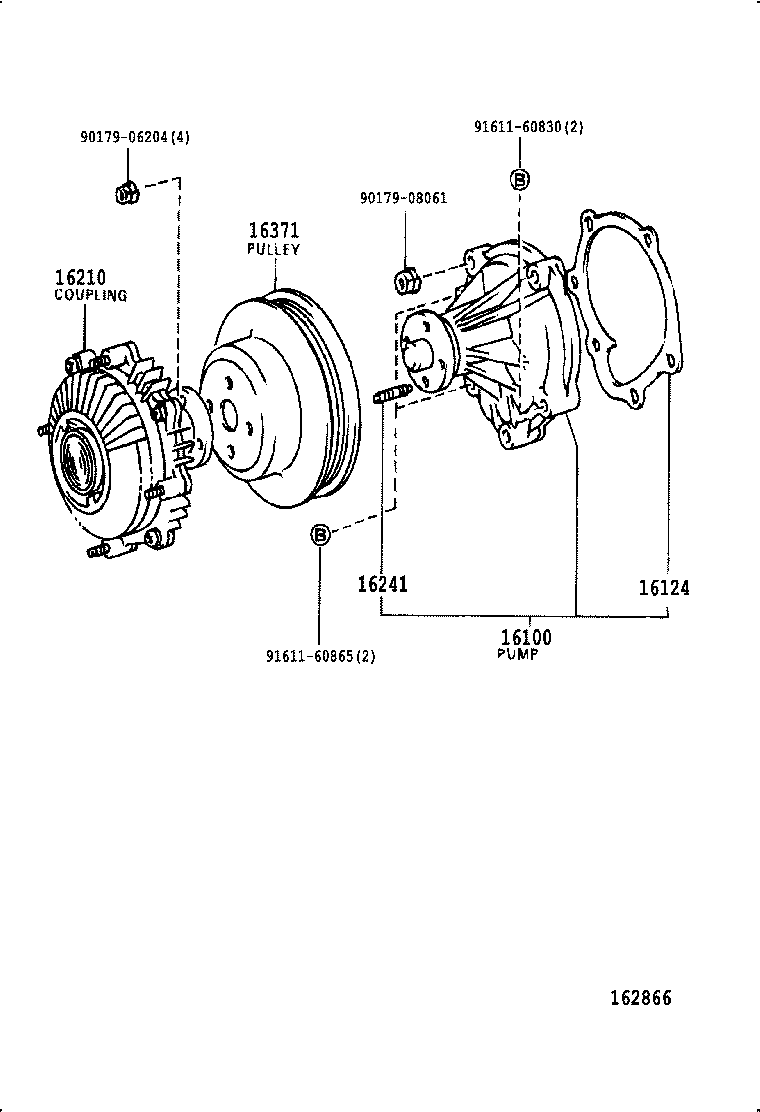

Click highlighted areas on diagram

diagram 16100 16124 16210 16241 16371 9017906204 9017908061 9161160830 9161160865
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79036

2Y,3Y,4Y..YH5#,6#,73

 1
16124 - GASKET, WATER PUMP COVER
16124-71010

2Y,3Y,4Y..YH5#,6#,73

 1
16210 - COUPLING ASSY, FLUID
16210-72010

3Y..YH61..RHD..15S;3Y..YH51..RHD..(03S,12S)

SINGAPORE SPEC

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-71010

2Y,3Y,4Y..YH5#,6#,73

 4
16371 - PULLEY, FAN
16371-71010

2Y,3Y,4Y..YH5#,6#,73

 1
Common parts
90179-06204
90179-08061
91611-60830
91611-60865
