YH60LV-QRJHW (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Jan 1984
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160814 9161160814 9411040800 9411040800 9411040800 9411040800 9414140800 9451200800 9451200800 9451200800 9451200800 9451200800 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26070

LH5#,6#,YH5#,6#..EUR,SA

 1
47920 - SPRING ASSY, LOAD SENSING
47920-26040

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH5#,6#,7#,YH5#,6#,7#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH5#,6#,7#,YH5#,6#,7#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LH5#,6#,7#,YH5#,6#,7#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH5#,6#,7#,YH5#,6#,7#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH5#,6#,7#,YH5#,6#,7#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-26060

LH5#,6#,7#,YH5#,6#,7#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-26040

LH5#,6#,7#,YH5#,6#,7#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-26010

LH5#,6#,7#,YH5#,6#,71

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LH5#,6#,7#,YH5#,6#,7#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH5#,6#,7#,YH5#,6#,7#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH5#,6#,7#,YH5#,6#,7#

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

LH5#,6#,7#,YH5#,6#,7#

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-26010

LH5#,6#,7#,YH5#,6#,71

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

LH5#,6#,7#,YH5#,6#,7#

 1
Common parts
90201-23360
91131-50840
91611-60814
94110-40800
94141-40800
94512-00800
95381-02020

(8212- )ARL,EUR,SA

Click highlighted areas on diagram

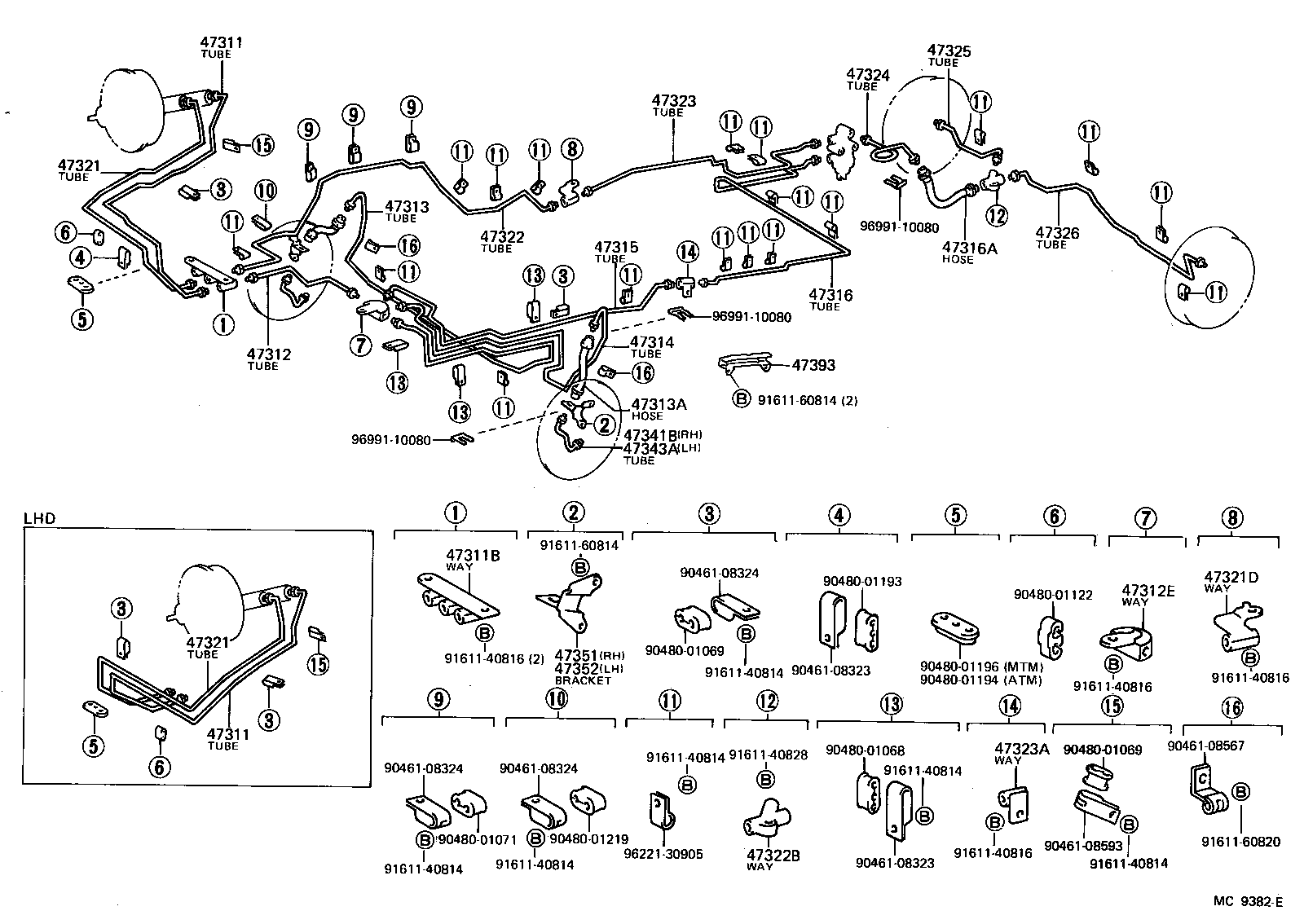

diagram 47311 47311 47311B 47312 47312E 47313 47313A 47314 47315 47316 47316A 47321 47321 47321D 47322 47322B 47323 47323A 47324 47325 47326 47341B 47343A 47351 47352 47393 9046108323 9046108323 9046108324 9046108324 9046108324 9046108567 9046108593 9048001068 9048001069 9048001069 9048001071 9048001122 9048001193 9048001194 9048001196 9048001219 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140816 9161140816 9161140816 9161140816 9161140828 9161160814 9161160814 9161160820 9622130905 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26220

LH6#,YH50,6#..M1

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-26220

LH6#,YH50,6#..M1

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10105

LH5#,6#,7#,YH5#,6#,7#..MTM

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26170

LH5#,6#,7#,YH5#,6#,71

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10012

YH51..4FC,4H,5F,5H;LH5#,6#,7#,YH50,6#,71..ARL,EUR,SA;YH51..4HC..(03S,06S,09S)..(EUR,SA)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26090

LH5#,6#,7#,YH5#,6#,71

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02436

LH5#,6#,7#,YH5#,6#,71

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26080

LH5#,6#,7#,YH5#,6#,71

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26070

YH51..MTM;YH51..4HC..(EUR,SA);LH5#,6#,7#,YH50,6#,71..ARL,EUR,SA

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26100

LH6#,YH6#..ARL,EUR,SA

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33205

LH50,51,60,61,7#,YH50,51,53,60,61,63,7#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26130

LH6#,YH50,6#..M1

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26130

LH6#,YH50,6#..M1

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10103

LH5#,6#,7#,YH5#,6#,7#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26090

LH5#,6#,7#,YH5#,6#,71

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10147

LH5#,6#,7#,YH5#,6#,7#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26210

LH6#,YH6#

W/LSPV

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90412-10006

YH51..4FC,4H,5F,5H;LH5#,6#,7#,YH50,6#,71..ARL,EUR,SA;YH51..4HC..(03S,06S,09S)..(EUR,SA)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26100

LH5#,6#,7#,YH5#,6#,71

W/LSPV

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26150

LH6#,YH50,6#..M1

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26130

LH6#,YH50,6#..M1

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-26040

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-26030

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26060

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26060

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
Common parts
90461-08323
90461-08324
90461-08567
90461-08593
90480-01068
90480-01069
90480-01071
90480-01122
90480-01193
90480-01194
90480-01196
90480-01219
91611-40814
91611-40816
91611-40828
91611-60814
91611-60820
96221-30905
96991-10080
