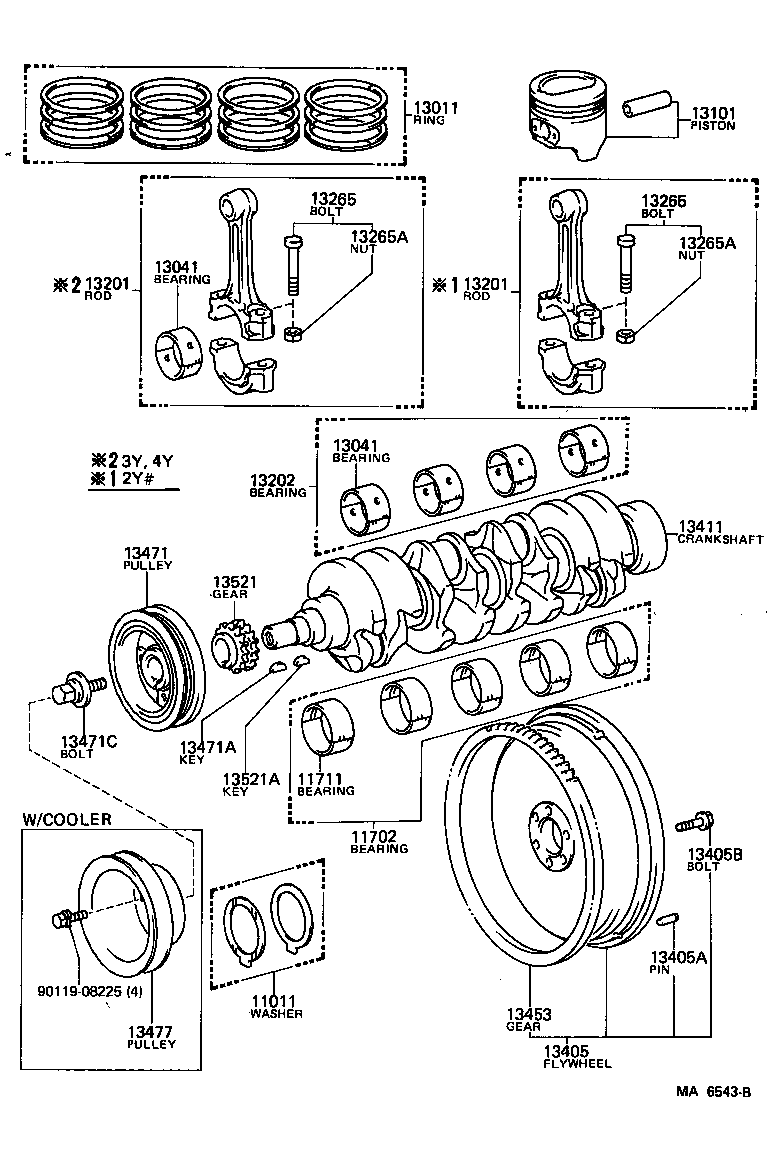

YH60LV-QRFEW (1982)
Toyota Hiace Van,Commuter
(8212- )L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-54010 |
L,2L..LH5#,6#,7# O/S 0.125,O/S 0.125 |
1 | ||
| 11011-25010 |
2Y#,3Y,4Y..YH5#,6#,71 STD |
1 | ||
| 11011-54010 |
L,2L..LH5#,6#,7# STD,STD |
1 | ||
| 11013-54010 |
L,2L..LH5#,6#,7# O/S 0.250,O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-54010 |
L..LH50,60,70 U/S 0.25 |
1 | ||
| 11705-54010 |
L..LH50,60,70 U/S 0.50 |
1 | ||
| 11703-54010 |
L..LH50,60,70 U/S 0.05 |
1 | ||
| 11702-54010 |
L..LH50,60,70 STD |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102002 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"2",MARK 2 |
5 | ||
| 11701-7102001 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"1",MARK 1 |
5 | ||
| 11701-7102003 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"3",MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102002 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"2",MARK 2 |
5 | ||
| 11701-7102001 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"1",MARK 1 |
5 | ||
| 11701-7102003 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"3",MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102002 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"2",MARK 2 |
5 | ||
| 11701-7102001 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"1",MARK 1 |
5 | ||
| 11701-7102003 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"3",MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102002 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"2",MARK 2 |
5 | ||
| 11701-7102001 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"1",MARK 1 |
5 | ||
| 11701-7102003 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"3",MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102002 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"2",MARK 2 |
5 | ||
| 11701-7102001 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"1",MARK 1 |
5 | ||
| 11701-7102003 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"3",MARK 3 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-54041 |
L..LH50,60,70 O/S 0.50 |
1 | ||
| 13015-71030 |
2Y#,3Y..YH50,51,60,61,71 O/S 1.00,O/S 1.00 |
1 | ||
| 13013-71030 |
2Y#,3Y..YH50,51,60,61,71 O/S 0.50,O/S 0.50 |
1 | ||
| 13011-54041 |
L..LH50,60,70 STD |
1 | ||
| 13014-71030 |
2Y#,3Y..YH50,51,60,61,71 O/S 0.75 |
1 | ||
| 13011-71030 |
2Y#,3Y..YH50,51,60,61,71 STD,STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401202 |
L..LH50,60,70 MARK"2",MARK 2 |
4 | ||
| 13041-7102106 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"6",MARK 6 |
4 | ||
| 13041-5401201 |
L..LH50,60,70 MARK"1",MARK 1 |
4 | ||
| 13041-7102108 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"8",MARK 8 |
4 | ||
| 13041-7102107 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"7",MARK 7 |
4 | ||
| 13041-5401203 |
L..LH50,60,70 MARK"3",MARK 3 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-54021 |
L..LH50,60,70 O/S 0.50 |
4 | ||
| 13101-54021 |
L..LH50,60,70 STD |
4 | ||
| 13103-54040 |
L..LH50,60,70 O/S 0.50 |
4 | ||
| 13101-54040 |
L..LH50,60,70 STD |
4 | ||
| 13101-72010 |
2Y#..YH50,60 STD,STD |
4 | ||
| 13105-72010 |
2Y#..YH50,60 O/S 1.00,O/S 1.00 |
4 | ||
| 13104-72010 |
2Y#..YH50,60 O/S 0.75,O/S 0.75 |
4 | ||
| 13103-72010 |
2Y#..YH50,60 O/S 0.50,O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-29003 |
L,2L..LH5#,6#,7# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59015 |
L..LH50,60,70 |
4 | ||
| 13201-71011 |
2Y#..YH50,60 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73083 |
L,2L..LH5#,6#,7# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-54012 |
L..LH50,60,70 U/S 0.25 |
1 | ||
| 13205-54012 |
L..LH50,60,70 U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-59025 |
L..LH50,60,70 |
8 | ||
| 13265-29025 |
2Y#,3Y,4Y..YH5#,6#,71 |
8 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-59025 |
L..LH50,60,70 |
8 | ||
| 13265-29025 |
2Y#,3Y,4Y..YH5#,6#,71 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
2Y#,3Y..YH50,6#,71 |
8 | ||
| 90170-10005 |
L,2L..LH5#,6#,7# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59035 |
L,2L..LH50,51,60,61,7#..5H |
1 | ||
| 13405-79055 |
2Y#..YH50,60..MTM |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
L,2L..LH5#,6#,7#..MTM L=23,OD=8,L=23,OD=8 |
3 | ||
| 90250-08054 |
2Y#,3Y,4Y..YH5#,6#,71..MTM L=23,OD=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12011 |
L,2L..LH5#,6#,7#..5H |
6 | ||
| 90105-10042 |
2Y#,3Y,4Y..YH5#,6#,71..MTM |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54012 |
L..LH50,60,70 |
1 | ||
| 13411-72010 |
2Y#..YH50,60 |
1 | ||
| 13401-54013 |
L..LH50,60,70 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
2Y#,3Y,4Y..YH5#,6#,71..MTM N=115 |
1 | ||
| 13453-54010 |
L,2L..LH5#,6#,7#..MTM N=101 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-54020 |
L,2L..LH5#,6#,7# |
1 | ||
| 13408-71010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
L,2L..LH5#,6#,7# |
1 | ||
| 90280-05010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14013 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 90119-14005 |
L,2L..LH5#,6#,7# *14-1.5PX40-31 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20622 |
L,2L..LH5#,6#,7# |
1 | ||
| 90280-05010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-54020 |
L,2L..LH5#,6#,7# |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-54010 |
L,2L..LH5#,6#,7# |
1 | ||
| Linked diagrams | ||||
| 3101 | ||||
(8212- )2Y#,3Y,4Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-54010 |
L,2L..LH5#,6#,7# O/S 0.125,O/S 0.125 |
1 | ||
| 11011-25010 |
2Y#,3Y,4Y..YH5#,6#,71 STD |
1 | ||
| 11011-54010 |
L,2L..LH5#,6#,7# STD,STD |
1 | ||
| 11013-54010 |
L,2L..LH5#,6#,7# O/S 0.250,O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-54010 |
L..LH50,60,70 U/S 0.25 |
1 | ||
| 11705-54010 |
L..LH50,60,70 U/S 0.50 |
1 | ||
| 11703-54010 |
L..LH50,60,70 U/S 0.05 |
1 | ||
| 11702-54010 |
L..LH50,60,70 STD |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102002 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"2",MARK 2 |
5 | ||
| 11701-7102001 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"1",MARK 1 |
5 | ||
| 11701-7102003 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"3",MARK 3 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-54041 |
L..LH50,60,70 O/S 0.50 |
1 | ||
| 13015-71030 |
2Y#,3Y..YH50,51,60,61,71 O/S 1.00,O/S 1.00 |
1 | ||
| 13013-71030 |
2Y#,3Y..YH50,51,60,61,71 O/S 0.50,O/S 0.50 |
1 | ||
| 13011-54041 |
L..LH50,60,70 STD |
1 | ||
| 13014-71030 |
2Y#,3Y..YH50,51,60,61,71 O/S 0.75 |
1 | ||
| 13011-71030 |
2Y#,3Y..YH50,51,60,61,71 STD,STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401202 |
L..LH50,60,70 MARK"2",MARK 2 |
4 | ||
| 13041-7102106 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"6",MARK 6 |
4 | ||
| 13041-5401201 |
L..LH50,60,70 MARK"1",MARK 1 |
4 | ||
| 13041-7102108 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"8",MARK 8 |
4 | ||
| 13041-7102107 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"7",MARK 7 |
4 | ||
| 13041-5401203 |
L..LH50,60,70 MARK"3",MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401202 |
L..LH50,60,70 MARK"2",MARK 2 |
4 | ||
| 13041-7102106 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"6",MARK 6 |
4 | ||
| 13041-5401201 |
L..LH50,60,70 MARK"1",MARK 1 |
4 | ||
| 13041-7102108 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"8",MARK 8 |
4 | ||
| 13041-7102107 |
2Y#,3Y,4Y..YH5#,6#,71 MARK"7",MARK 7 |
4 | ||
| 13041-5401203 |
L..LH50,60,70 MARK"3",MARK 3 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-54021 |
L..LH50,60,70 O/S 0.50 |
4 | ||
| 13101-54021 |
L..LH50,60,70 STD |
4 | ||
| 13103-54040 |
L..LH50,60,70 O/S 0.50 |
4 | ||
| 13101-54040 |
L..LH50,60,70 STD |
4 | ||
| 13101-72010 |
2Y#..YH50,60 STD,STD |
4 | ||
| 13105-72010 |
2Y#..YH50,60 O/S 1.00,O/S 1.00 |
4 | ||
| 13104-72010 |
2Y#..YH50,60 O/S 0.75,O/S 0.75 |
4 | ||
| 13103-72010 |
2Y#..YH50,60 O/S 0.50,O/S 0.50 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59015 |
L..LH50,60,70 |
4 | ||
| 13201-71011 |
2Y#..YH50,60 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59015 |
L..LH50,60,70 |
4 | ||
| 13201-71011 |
2Y#..YH50,60 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-54012 |
L..LH50,60,70 U/S 0.25 |
1 | ||
| 13205-54012 |
L..LH50,60,70 U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-59025 |
L..LH50,60,70 |
8 | ||
| 13265-29025 |
2Y#,3Y,4Y..YH5#,6#,71 |
8 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-59025 |
L..LH50,60,70 |
8 | ||
| 13265-29025 |
2Y#,3Y,4Y..YH5#,6#,71 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
2Y#,3Y..YH50,6#,71 |
8 | ||
| 90170-10005 |
L,2L..LH5#,6#,7# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
2Y#,3Y..YH50,6#,71 |
8 | ||
| 90170-10005 |
L,2L..LH5#,6#,7# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59035 |
L,2L..LH50,51,60,61,7#..5H |
1 | ||
| 13405-79055 |
2Y#..YH50,60..MTM |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
L,2L..LH5#,6#,7#..MTM L=23,OD=8,L=23,OD=8 |
3 | ||
| 90250-08054 |
2Y#,3Y,4Y..YH5#,6#,71..MTM L=23,OD=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12011 |
L,2L..LH5#,6#,7#..5H |
6 | ||
| 90105-10042 |
2Y#,3Y,4Y..YH5#,6#,71..MTM |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54012 |
L..LH50,60,70 |
1 | ||
| 13411-72010 |
2Y#..YH50,60 |
1 | ||
| 13401-54013 |
L..LH50,60,70 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
2Y#,3Y,4Y..YH5#,6#,71..MTM N=115 |
1 | ||
| 13453-54010 |
L,2L..LH5#,6#,7#..MTM N=101 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-54020 |
L,2L..LH5#,6#,7# |
1 | ||
| 13408-71010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
L,2L..LH5#,6#,7# |
1 | ||
| 90280-05010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14013 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 90119-14005 |
L,2L..LH5#,6#,7# *14-1.5PX40-31 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-33010 |
2Y#,3Y,4Y..YH5#,6#,71 N=18 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20622 |
L,2L..LH5#,6#,7# |
1 | ||
| 90280-05010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 90119-08225 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
