YH53RV-QNJN (1988)

Toyota Hiace Van,Commuter

Production Aug 1988 - Oct 1996
Engine 4Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8908)4Y..YH63..GEN ; (9206- )

Click highlighted areas on diagram

diagram 19100P 19539 19901 19901B 19901C 19901D 19901E 19941
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

2Y,3Y,4Y..YH5#,6#,73

W16EX-U

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-71011

4Y..YH53,63

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22357

4Y..YH53,63

 1
90919-21316

4Y..YH63..V..(ARL,SA);2Y,3Y,4Y..YH5#,60,61,73

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12469

4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73

 1
90919-15352

4Y..YH53,63

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15353

4Y..YH53,63

 1
90919-12470

4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12471

4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73

 1
90919-15354

4Y..YH53,63

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15355

4Y..YH53,63

 1
90919-12472

4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01031

4Y..YH53,63

 1

(8708-9206)2Y,3Y,4Y..YH5#,60,61,73 ; (8708-9206)4Y..YH63..ARL,SA

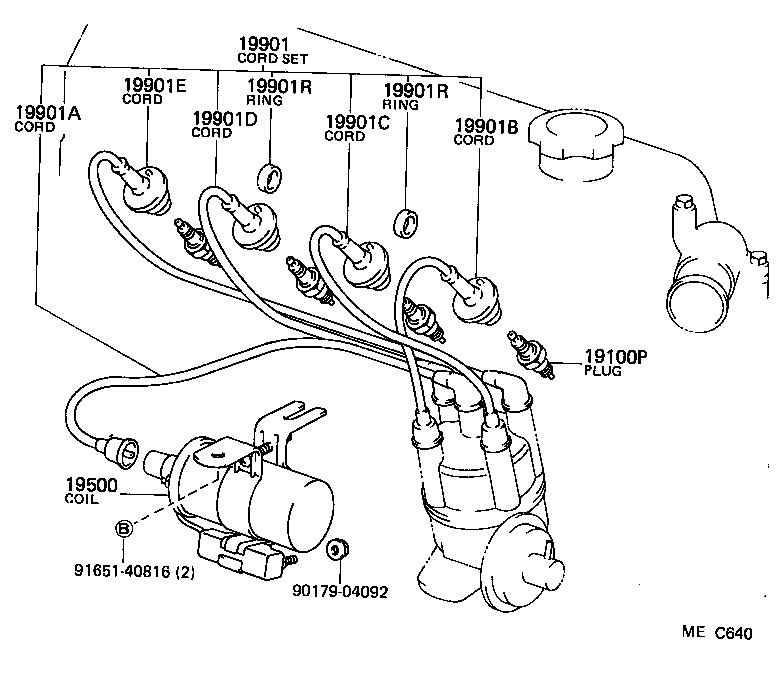

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 9017904092 9165140816
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

2Y,3Y,4Y..YH5#,6#,73

W16EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02141

4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22357

4Y..YH53,63

 1
90919-21316

4Y..YH63..V..(ARL,SA);2Y,3Y,4Y..YH5#,60,61,73

 1
19901A - CORD, COIL RESISTIVE
90919-13146

4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12469

4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73

 1
90919-15352

4Y..YH53,63

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15353

4Y..YH53,63

 1
90919-12470

4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12471

4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73

 1
90919-15354

4Y..YH53,63

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15355

4Y..YH53,63

 1
90919-12472

4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

4Y..YH63..ARL,SA;2Y,3Y,4Y..YH5#,60,61,73

 2
Common parts
90179-04092
91651-40816
