YH53RV-MNEQ (1987)
Toyota Hiace Van,Commuter
(8708- )2Y,3Y,4Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-71010 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-71010 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03069 |
2Y,3Y,4Y..YH5#,6#,73 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-71010 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
2Y,4Y..YH53,60,63,73 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
2Y,4Y..YH53,60,63,73 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-71010 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-72050 |
2Y,3Y,4Y..YH5#,6#,73..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 90540-10019 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 90440-11042 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54130 |
4Y..YH63,73..ARL;4Y..YH53..5H..GL;4Y..YH53..4FC,4H,4HC,5F |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
4Y..YH63,73..ARL;4Y..YH53..5H..GL;4Y..YH53..4FC,4H,4HC,5F L=1000 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54050 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12078 |
4Y..YH63,73..ARL;4Y..YH53..5H..GL;4Y..YH53..4FC,4H,4HC,5F L=600 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-72020 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-54030 |
2Y,3Y,4Y..YH5#,6#,73 RADIATOR SIDE |
1 | ||
| 16572-72020 |
2Y,3Y,4Y..YH5#,6#,73 WATER PUMP SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-54030 |
2Y,3Y,4Y..YH5#,6#,73 RADIATOR SIDE |
1 | ||
| 16572-72020 |
2Y,3Y,4Y..YH5#,6#,73 WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10440 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10440 |
2Y,3Y,4Y..YH5#,6#,73 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-72010 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-72010 |
2Y,3Y,4Y..YH5#,6#,73 |
1 | ||
| Common parts | ||||
| 90119-08264 | ||||
| 90119-10180 | ||||
| 90179-06070 | ||||
| 90179-06204 | ||||
| 90179-08061 | ||||
| 90467-13001 | ||||
| 91611-60825 | ||||
| 91631-40616 | ||||
| 91651-40814 | ||||
| 91661-40835 | ||||
| 91661-40840 | ||||
| 99555-10240 | ||||

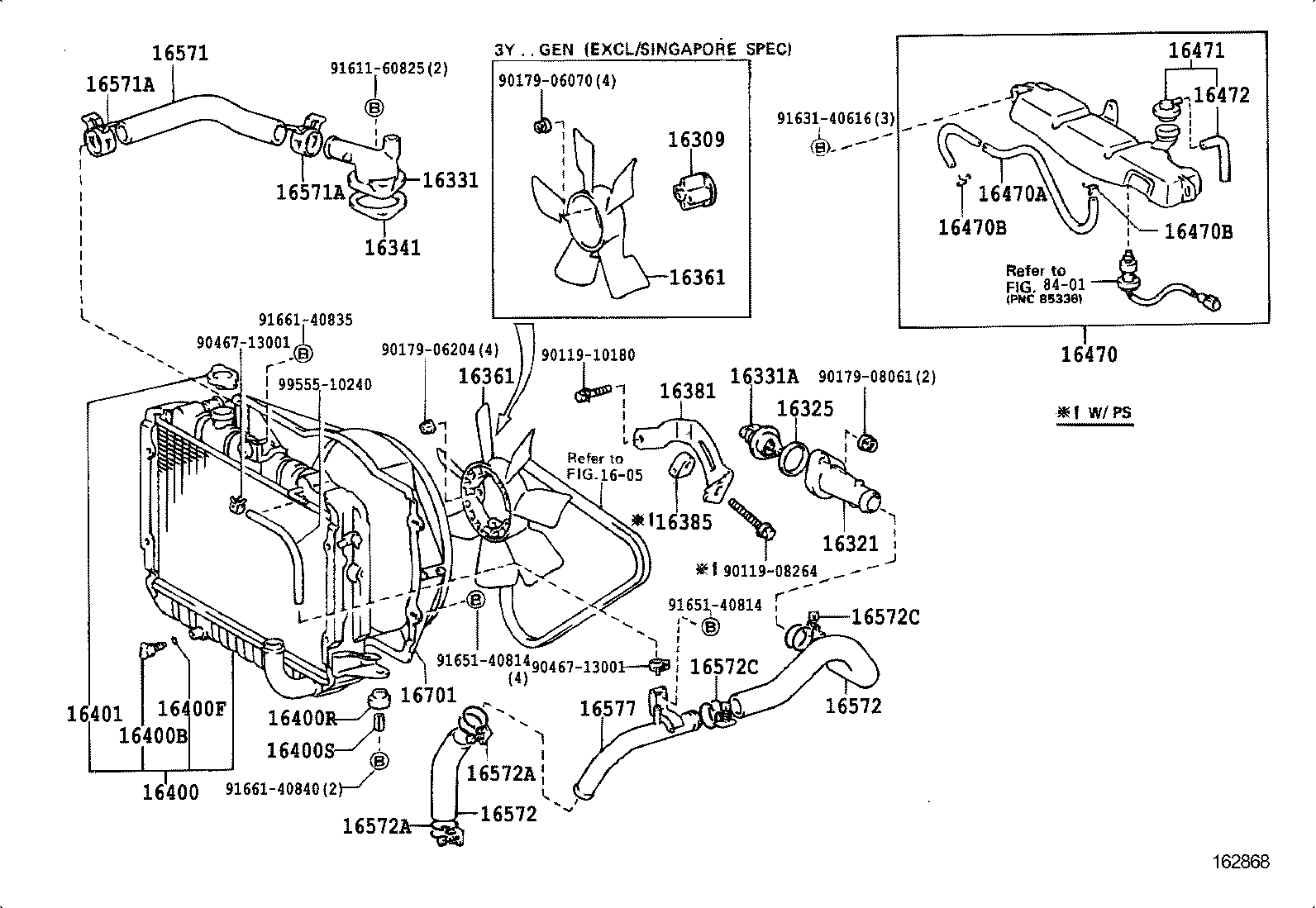

| Linked diagrams | ||||
| 1605 | ||||
| 8401 | ||||
